1
Engine displacement
750
2
Year
2004
3
Trim
MSX 150 - W045305CA
4
Parts Catalog

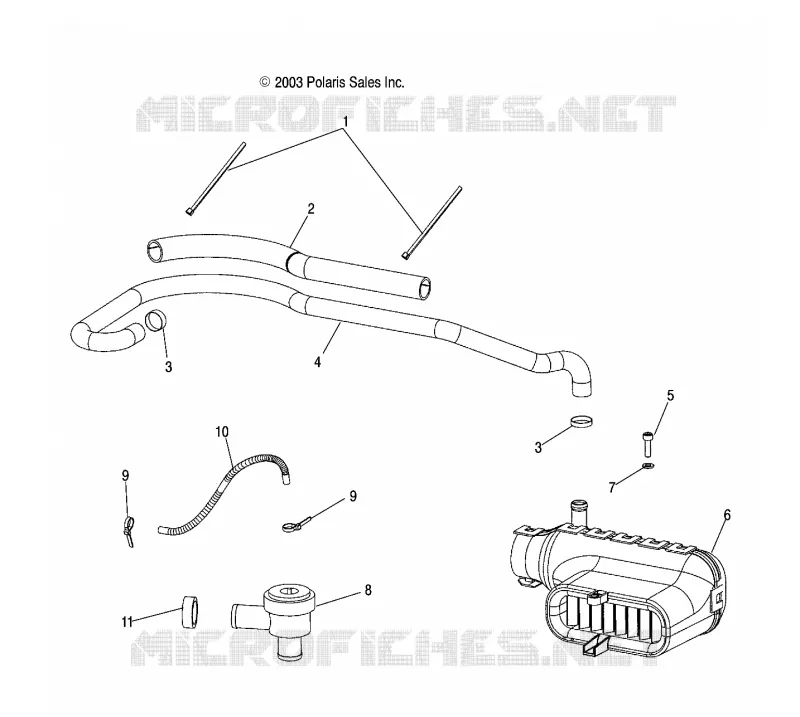

AIR BOX AND POPOFF VALVE
5
Parts Diagram
Parts Catalog
EXHAUST GASKETS HARDWARE
by
ENGINE BEDPLATE
AIR BOX AND POPOFF VALVE
1
2
3
3
4
5
6
7
8
1
1
10
11
1
Panduit
0451948
Not Available
2
Conduit
0451926
$10,70 Unit Price incl. VAT
3
Clamp
0451533
Not Available
4
Hose
0451474
Not Available
5
Bolt
0451542
$6,29 Unit Price incl. VAT
6
Airbox
0451422
$101,21 Unit Price incl. VAT
7
Washer
0451513
$6,29 Unit Price incl. VAT
8
Valve Popoff
0451407
Not Available
9
Panduit
0451948
Not Available
10
Hose Air
0451891
Not Available
11
Clamp
0451528
$14,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
