1
Engine displacement
440
2
Year
1995
3
Trim
440 L/C - 0952760
4
Parts Catalog
CARBURETOR 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E95 (4929032903C011)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E (4929032903C010)
by

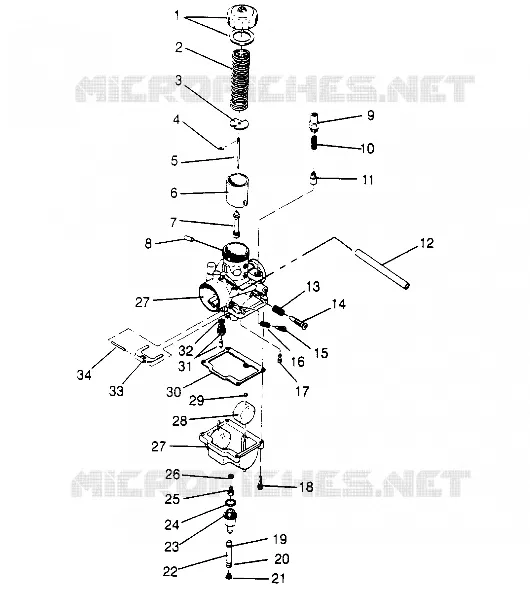

CARBURETOR 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E95 (4929032903C011)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
1
ASM. TOP MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
SPRING THROTTLE
3130318
$47,24 Unit Price incl. VAT
3
PLATE THROTTLE
3130027
$19,94 Unit Price incl. VAT
4
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
5
JET NEEDLE Substituted by 3130329
3130158
Not Available
6
VALVE THROTTLE (2.5) (Deluxe)
3130466
Not Available
7
NEEDLE JET P4-166 (166)
3130499
Not Available
8
CAP
3130479
$31,49 Unit Price incl. VAT
9
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
10
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
11
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
12
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
13
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
14
SCREW THROTTLE STOP
3130009
$36,74 Unit Price incl. VAT
15
SCREW AIR
3130011
$36,74 Unit Price incl. VAT
16
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
17
JET PILOT #35(10)
3130066
$18,89 Unit Price incl. VAT
18
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
19
CLAMP HOSE
7080534
$3,14 Unit Price incl. VAT
20
CLAMP HOSE(10)
7080544
Not Available
21
PLUG TRAP
5431893
$26,24 Unit Price incl. VAT
22
DESC NOT_AVAILABLE
8450045600
Not Available
23
FITTING SEDIMENT Substituted by 3130573
5020476
$18,68 Unit Price incl. VAT
24
O-RING
3130239
Not Available
25
JET MAIN HX.HD#230(10)
3130126
$15,74 Unit Price incl. VAT
26
WASHER
3130014
$3,14 Unit Price incl. VAT
27
CARBURETOR Substituted by 3130630 (Incl. 2-32)
3130461
Not Available
28
ASM. FLOAT
3130430
$73,49 Unit Price incl. VAT
29
CAP
3130237
$8,39 Unit Price incl. VAT
30
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
31
VALVE NEEDLE Substituted by 3131146
3130016
3131146
$99,74 Unit Price incl. VAT
32
PACKING NEEDLE VALVE
3130017
$7,34 Unit Price incl. VAT
33
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
34
PIN FLOAT Substituted by 3130361
3130235
3130361
$18,89 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
