1
Engine displacement
570
2
Year
2018
3
Trim
SPORTSMAN 570 EPS EU SP
4
Parts Catalog

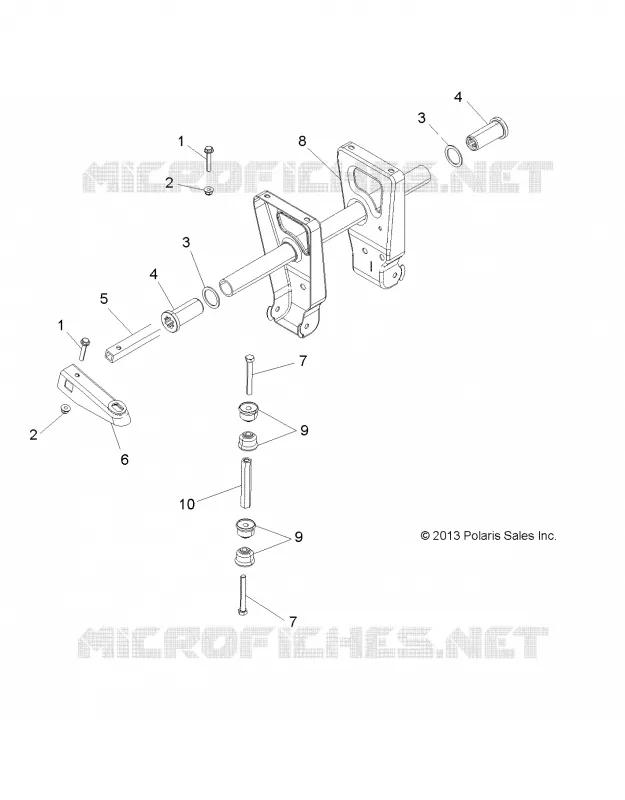

SUSPENSION, TORSION BAR
5
Parts Diagram
Parts Catalog
REFERENCE, OWNERS MANUAL
by
WHEELS, FRONT TIRE AND BRAKE DISC
SUSPENSION, TORSION BAR
2
2
3
3
4
4
5
6
7
7
8
9
9
10
1
SCREW HXFL-5/16-18X0.75 GR5 ZY3
7518341
$9,44 Unit Price incl. VAT
2
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
3
WSHR-1.28X1.69X.075-Y
7555939
$7,34 Unit Price incl. VAT
4
BUSHING STABILIZER TUBE BLACK
5438901
$16,79 Unit Price incl. VAT
5
BAR STABILIZER TUBE MATTE BLACK
5334114329
$178,49 Unit Price incl. VAT
6
ARM STABILIZER BAR MATTE BLACK
1543119458
$62,99 Unit Price incl. VAT
7
SCREW(10)
7517231
$13,64 Unit Price incl. VAT
8
SUPPORT STABILIZER MATTE BLACK
1542848458
$194,24 Unit Price incl. VAT
9
BUSHING [TO 1/13/2020]
5414877
5415885
$6,29 Unit Price incl. VAT
10
ROD LINKAGE STABILIZER
5020827
$99,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
