1
Engine displacement
570
2
Year
2017
3
Trim
SPORTSMAN 570 X2 EPS TRACTOR
4
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT DRIVE SHAFT
by
HAND AND THUMB WARMERS

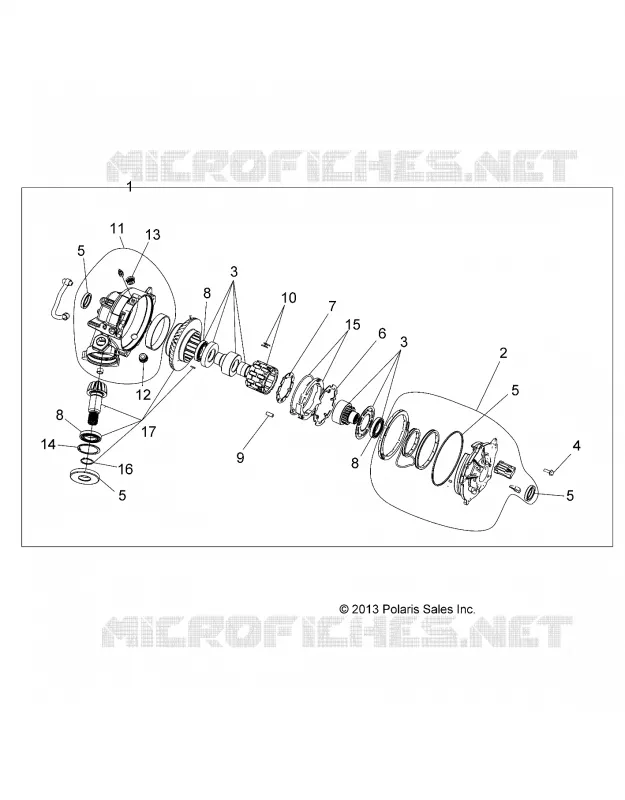

DRIVE TRAIN, FRONT GEARCASE
1
2
3
3
4
5
5
5
5
6
7
8
8
8
9
10
11
12
13
14
15
16
17
1
ASM. GEARCASE RH ADC AUTOLOCK [INCL. ALL][TO 5/15/2022]
1333371
$3 008,24 Unit Price incl. VAT
2
ASM. COVER OUTPUT
3235553
3236664
$965,99 Unit Price incl. VAT
3
ASM. OUTPUT HUB
3235554
3236673
$876,74 Unit Price incl. VAT
4
COVER-FASTENERS [INCL. SCREWS]
3235469
$25,19 Unit Price incl. VAT
5
KIT SEAL REPAIR
3235470
3236669
$136,49 Unit Price incl. VAT
6
PLATE 4WD ARMATURE
3235485
3236048
$209,99 Unit Price incl. VAT
7
ARMATURE PLATE BACK DRIVE
3235626
$188,99 Unit Price incl. VAT
8
BEARING
3234390
$60,89 Unit Price incl. VAT
9
K-CLUTCH ROLLS W/COMPLETE SET OF ROLLER
3235624
$12,59 Unit Price incl. VAT
10
ASM-ROLL CAGE [INCL. CAGE AND COMPLETE SET OF CLIPS]
3235625
$325,49 Unit Price incl. VAT
11
ASM. GEARCASE
3235555
3236678
$797,99 Unit Price incl. VAT
12
ASM. DRAIN PLUG MAGNETIC
3234412
$83,99 Unit Price incl. VAT
13
PLUG OIL FILL
3234414
3233942
$62,99 Unit Price incl. VAT
14
Ring Retaining Internal [TO 5/15/2022]
3234416
$19,94 Unit Price incl. VAT
15
KIT-TORSION SPRING AND RETAINER [INCLUDES 22 & 26]
3235712
$68,24 Unit Price incl. VAT
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
ASM-GEAR HOUSING PINION GEAR & SNAP RINGS [INCL. PIN]
3235627
3239540
$1 622,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
