1
Engine displacement
900
2
Year
2023
3
Trim
PATRIOT 9R RMK PRO 155 SLASH
4
Parts Catalog
DRIVE TRAIN, CLUTCH, PRIMARY
5

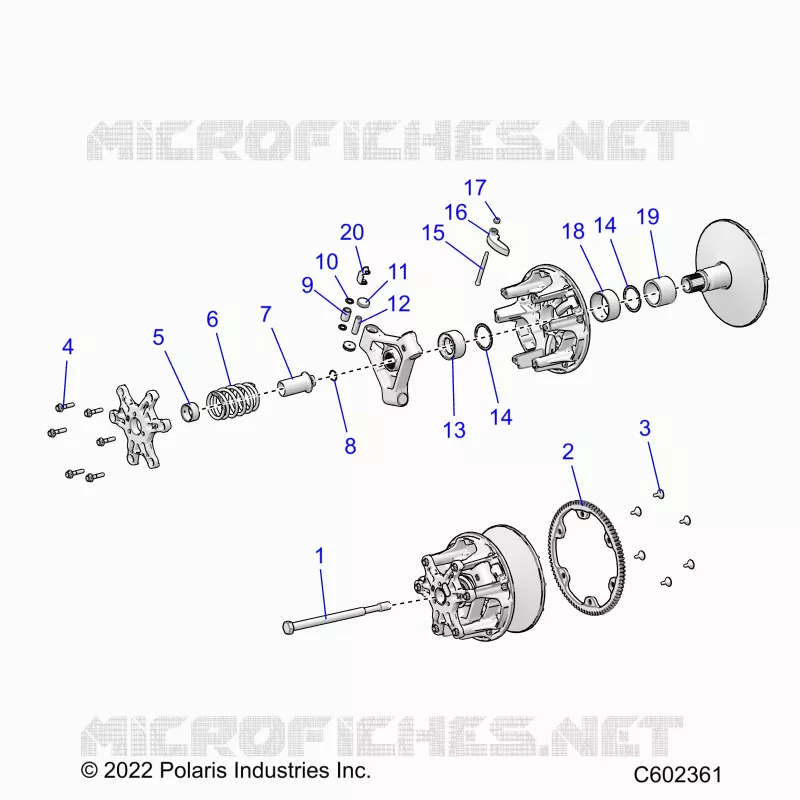

Parts Diagram
Parts Catalog
WINDSHIELD
by
DRIVE TRAIN, CLUTCH, SECONDARY
DRIVE TRAIN, CLUTCH, PRIMARY
-
-
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
14
15
16
17
17
18
19
20
-
ASM-DRIVE CLUTCH BSC P22 [NON E.S.][INCL. 4 5 7-15 17-20]
1327448
1327459
$1 049,99 Unit Price incl. VAT
-
ASM-DRIVE CLUTCH BSC P22 ES [E.S.][INCL. 2-5 7-15 17-20]
1327449
1327462
$1 086,74 Unit Price incl. VAT
1
SCR-SH-M14X1.5X180 10.9 SPC ND
7528193
7528304
$51,23 Unit Price incl. VAT
2
KIT GEAR STARTER RING [E.S.][INCL. 22]
2870002
$209,99 Unit Price incl. VAT
3
SCR-SHFL-5/16-18X0.625 GR5 ZY3 [E.S.]
7515351
$7,34 Unit Price incl. VAT
4
SCR-M6X1.0X30 HXFL
7519036
$20,99 Unit Price incl. VAT
5
BUSHING-1.13X1.28X0.63 MU
3515173
$12,59 Unit Price incl. VAT
6
SPRING CLUTCH(ALMOND/BLUE) LOW ELEVATION SETUP
7041922
$115,49 Unit Price incl. VAT
6
SPRING DRIVE CLUTCH 140/330 BLACK HIGH ELEVATION SETUP
7043829
$115,49 Unit Price incl. VAT
7
POST-CLUTCH OUTER O-RING RADI
5144854
$52,49 Unit Price incl. VAT
8
O-RING 1.0X17.5MM 90A
5418306
$5,24 Unit Price incl. VAT
9
ASM-SPIDER ROLLER P90X [INCLUDES ROLLER AND BUSHING]
1323717
$62,99 Unit Price incl. VAT
10
WASHER-CLUTCH SPIDER ROLLER
5453844
$3,14 Unit Price incl. VAT
11
BUTTON CLUTCH .75
5438863
$14,69 Unit Price incl. VAT
12
PIN-SPIDER
5143585
$7,34 Unit Price incl. VAT
13
SPACER-CLUTCH P22
5142986
$20,99 Unit Price incl. VAT
14
WSHR-CLUTCH 40.5X49X0.8 SP-21
7557071
$25,19 Unit Price incl. VAT
15
BOLT-SHIFT WEIGHT BUSHED
7520585
$10,49 Unit Price incl. VAT
16
ASM-WEIGHT SHIFT (14-80) LOW ELEVATION SETUP
1327228
$73,49 Unit Price incl. VAT
17
ASM-WEIGHT SHIFT (14-72) HIGH ELEVATION SETUP
1323741
$73,49 Unit Price incl. VAT
17
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
18
BUSHING-50X55X25 MU
3515174
$24,14 Unit Price incl. VAT
19
BEARING-NEEDLE 40X50X35
3515043
$54,59 Unit Price incl. VAT
20
BRKT-WEAR CLIP WEIGHT
5272362
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
