1
Engine displacement
550
2
Year
2013
3
Trim
SPORTSMAN TOURING 550 EPS INTL - A13DN5EFL
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
by
DRIVE TRAIN, PRIMARY CLUTCH

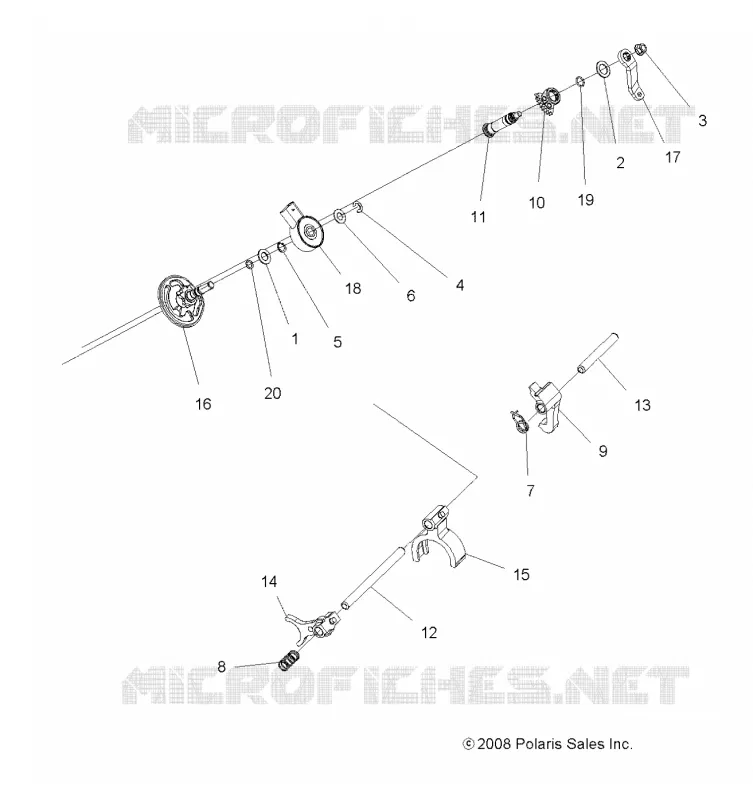

DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
-
Asm. Transmission [Incl. All]
1332847
Not Available
1
WASHER THRUST 0.5 X 0.937 X 0.063
3234636
$14,69 Unit Price incl. VAT
2
WASHER THRUST .625 X 1.000 X 0.063
3234637
$20,99 Unit Price incl. VAT
3
NUT LOCK HEX FLANGE NYLON 5/16-24
3233961
$5,24 Unit Price incl. VAT
4
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
5
RING RETAINING BASIC EXTERNAL SHR-50
3234639
$19,94 Unit Price incl. VAT
6
WASHER THRUST 0.446 X 0.88 X 0.025
3234642
$19,94 Unit Price incl. VAT
7
SPRING PARK PAWL TORSION
3234787
$52,49 Unit Price incl. VAT
8
SPRING COMPRESSION 0.648 O.D. X 1.33
3234687
$16,79 Unit Price incl. VAT
9
PAWL PARK
3234692
3239339
$99,74 Unit Price incl. VAT
10
GEAR SECTOR 38T
3234694
$62,99 Unit Price incl. VAT
11
SHAFT SHIFT BELLCRANK
3234712
$120,74 Unit Price incl. VAT
12
Rail Shift Shaft
3234714
$52,49 Unit Price incl. VAT
13
RAIL PARK SHAFT
3234716
$52,49 Unit Price incl. VAT
14
FORK SHIFT
3235342
$167,99 Unit Price incl. VAT
15
FORK SHIFT
3234766
$167,99 Unit Price incl. VAT
16
SUBASM. SWITCH SHAFT
3234767
$230,99 Unit Price incl. VAT
17
BELLCRANK 15T SPLINE
3234724
$52,49 Unit Price incl. VAT
18
SWITCH ROTARY 6-PIN ITW [GEAR POSITION]
3233835
3236115
$225,74 Unit Price incl. VAT
19
O-RING -014 VITON
3233828
$12,59 Unit Price incl. VAT
20
O-RING - N70 9.5 MM X 2 MM
3234730
$14,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
