1
Engine displacement
500
2
Year
1997
3
Trim
euro-500-indy-e972764
4
Parts Catalog
HOOD 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972564, EUROPEAN 500 SKS (4938393839A014)
5

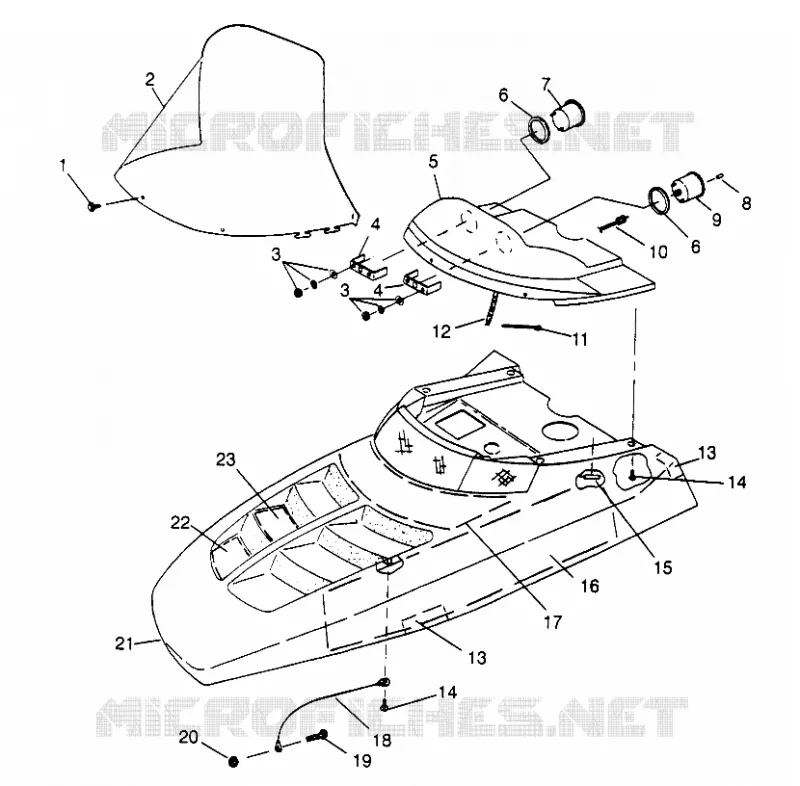

Parts Diagram
Parts Catalog
TUNNEL (SKS, RMK) 500 SKS 0972564, EUROPEAN 500 SKS E972564 AND 500 RMK 097 (4938393839A007)
by
HOOD
HOOD 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972564, EUROPEAN 500 SKS (4938393839A014)
1
RIVET PLASTI-LOC
7621509
$2,09 Unit Price incl. VAT
2
WNDSHLD STD SMOKE EV. (Trail)
5431930
Not Available
2
WNDSHLD LO BLK(500CARB.)
5431894
Not Available
3
WASHER SPLIT LOCK
3280156
$1,04 Unit Price incl. VAT
3
NUT
3280158
Not Available
3
WASHER FLAT (10)
3280157
$4,19 Unit Price incl. VAT
4
BRKT TACH/SPEEDO 5#
3280210
$52,49 Unit Price incl. VAT
5
HOUSING ASM INSTR.
2652146
Not Available
6
CUSHION TACH/SPEEDO RUBBER
3280209
$7,34 Unit Price incl. VAT
7
BULB TAILLIGHT(10)
4030015
$8,39 Unit Price incl. VAT
7
TACH ASM 2P BACKLIT (5 IN.) Substituted by 3280293 (Incl. 2-6)
3280246
Not Available
8
KNOB TRIP ODOMETER LH THD.
3280186
$19,94 Unit Price incl. VAT
9
SPEEDO BACKLIT (Incl. 3 4 6 8) (US)
3280204
Not Available
9
SPEEDO BACKLIT 190 KPH (Incl. 3 4 6 8) (EURO)
3280212
$211,56 Unit Price incl. VAT
10
CABLE SPEEDO.
3280094
$115,49 Unit Price incl. VAT
11
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
12
HARNESS H/L
2460529
Not Available
13
FOIL TAPE 1.5X6
5810949
$6,29 Unit Price incl. VAT
14
SCREW(10)
7512070
7512076
$2,09 Unit Price incl. VAT
15
RETAINER WINDSHIELD
5410970
$2,09 Unit Price incl. VAT
16
FOIL RH HOOD
5810905
Not Available
16
FOAM RH HOOD
5810877
Not Available
16
FOAM LH HOOD
5810876
Not Available
17
FOAM HOOD CTR.
5810875
Not Available
18
CABLE HOOD RETAINER
7080521
$47,24 Unit Price incl. VAT
19
BOLT
7511930
$4,19 Unit Price incl. VAT
20
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
21
HOOD ASM 500 (Incl. 17 20-22 27 28)
2631591177
Not Available
22
FOIL HOOD FRONT
5810874
Not Available
23
FOIL HOOD CTR.
5810873
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
