1
Engine displacement
400
2
Year
1994
3
Trim
SPORT 400L - W948540
4
Parts Catalog

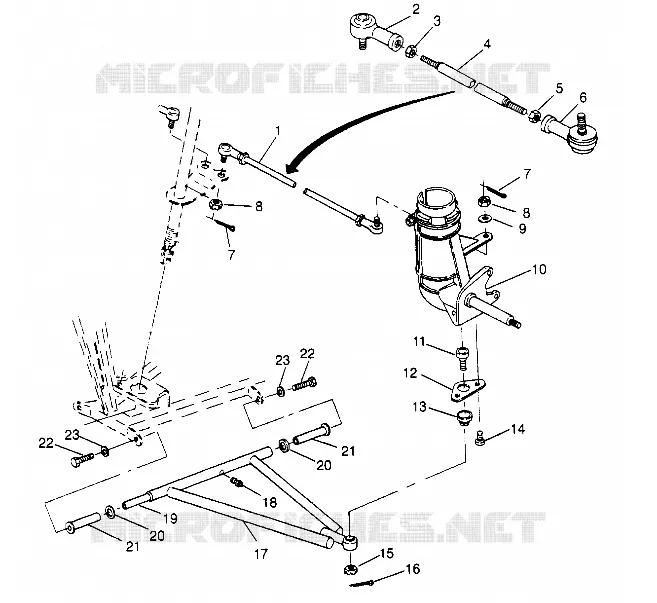

FRONT WISHBONES STEERING TIE RODS SPORT 400L W948540 (4927232723B006)
5
Parts Diagram
Parts Catalog
STEERING POST ASSEMBLY SPORT 400L W948540 (4927232723B005)
by
CONTROLS
FRONT WISHBONES STEERING TIE RODS SPORT 400L W948540 (4927232723B006)
20
20
21
21
22
22
23
23
1
TIE ROD ASM. Substituted by 1822307
1822070
Not Available
2
ROD END RH Substituted by 7060172
7060138
$115,49 Unit Price incl. VAT
3
NUT RH 10 MM.(10)
7546901
$4,19 Unit Price incl. VAT
4
TIE ROD
5020478
$99,74 Unit Price incl. VAT
5
NUT LH 10 MM.(10)
7546902
Not Available
6
ROD END
7060147
$115,49 Unit Price incl. VAT
7
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
8
NUT CASTLE(10)
7546904
$9,44 Unit Price incl. VAT
9
WASHER
7555806
$1,56 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
BALL JOINT Substituted by 7080673 (Incl. 32-34)
7080364
7061306
$52,49 Unit Price incl. VAT
12
BRACKET-BALL JOINT
5211121
$62,99 Unit Price incl. VAT
13
BOOT RUBBER
5410548
5412658
$9,44 Unit Price incl. VAT
14
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
$2,09 Unit Price incl. VAT
15
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
16
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
17
KIT A-FRAME RH (Incl. 16 20-23)
2200480
Not Available
17
KIT A-FRAME LH (Incl. 16 20-23)
2200479
Not Available
18
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
19
SHAFT A-ARM (2X4)
5020680
Not Available
20
BUSHING A-ARM SPACER(10)
5020677
$19,94 Unit Price incl. VAT
21
BUSHING A-ARM LONG. Substituted by 5433066
5431596
5436973
$9,44 Unit Price incl. VAT
22
BOLT(10) Substituted by 7512492
7515458
7512492
$2,09 Unit Price incl. VAT
23
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
