1
Engine displacement
570
2
Year
2014
3
Trim
sportsman-touring-570-efi-a14dh57aaaj
4
Parts Catalog

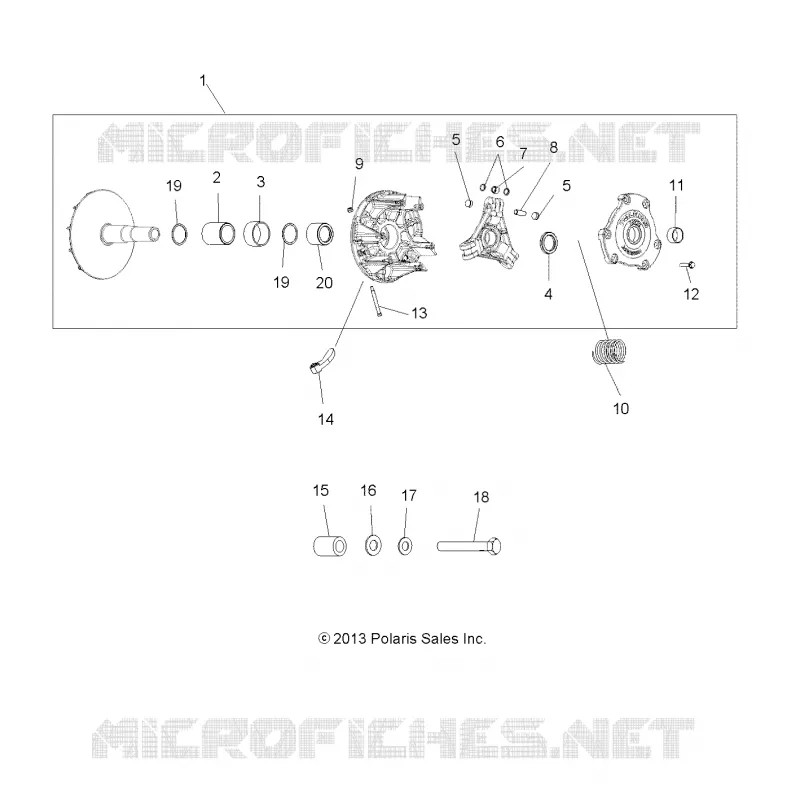

DRIVE TRAIN, PRIMARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE MOUNTING
by
DRIVE TRAIN, REAR DRIVE SHAFT
DRIVE TRAIN, PRIMARY CLUTCH
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
ASM. DRIVE CLUTCH [INCL: 1-9 11-13 19 20]
1323063
$1 070,99 Unit Price incl. VAT
2
ASM. CLUTCH ONE WAY
1521172
$89,24 Unit Price incl. VAT
3
BEARING-DU 1.75ID
3514492
$54,59 Unit Price incl. VAT
4
SPACER CLUTCH LIMITER
5450770
$20,99 Unit Price incl. VAT
5
BUTTON CLUTCH RUBBER BACKED
5439254
$14,69 Unit Price incl. VAT
6
WASHER-CLUTCH SPIDER ROLLER
5438247
$3,14 Unit Price incl. VAT
7
ASM-ROLLER AND BUSHING
1321457
$73,49 Unit Price incl. VAT
8
PIN-ROLLER
5020422
$4,19 Unit Price incl. VAT
9
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
10
SPRING-CLUTCH 35-240
7043594
$89,24 Unit Price incl. VAT
11
BEARING COVER .75IN
3514684
$27,29 Unit Price incl. VAT
12
SCR-1/4-20X1.25 HX/FL GR5
7518062
$9,44 Unit Price incl. VAT
13
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
7512266
$5,76 Unit Price incl. VAT
14
WEIGHT-SHIFT 25-52G PM
5632409
$62,99 Unit Price incl. VAT
15
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
16
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
17
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
18
SCREW-HXHD 7/16x8
7519287
$52,49 Unit Price incl. VAT
19
WASHER-CLUTCH VESPEL
7556335
$11,54 Unit Price incl. VAT
20
SPACER CLUTCH
5633037
$68,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
