1
Engine displacement
550
2
Year
2009
3
Trim
SPORTSMAN XP EPS 550 - A09ZX55AC/AL/AQ/AS/AX
4
Parts Catalog

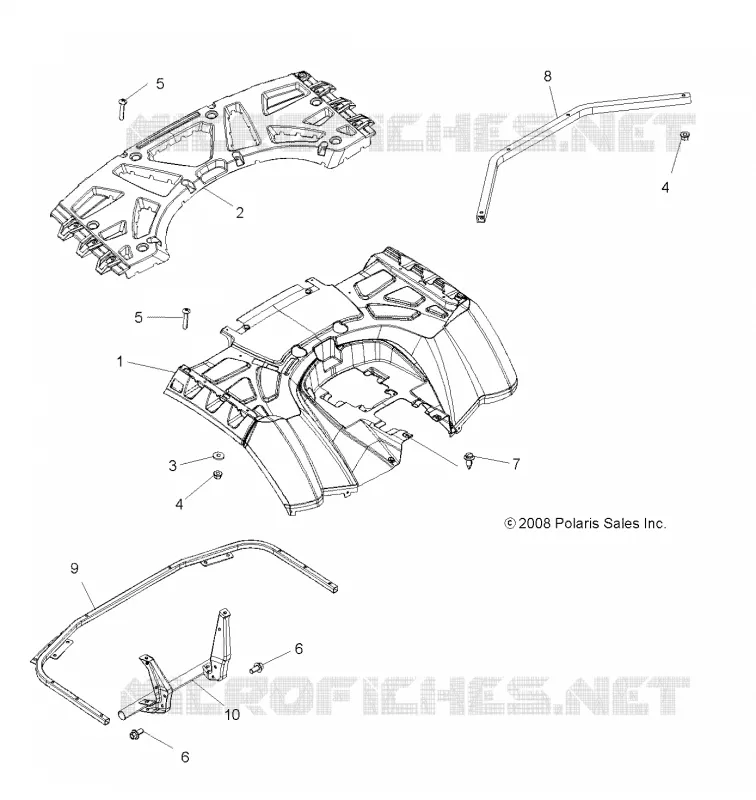

BODYWORK
5
Parts Diagram
Parts Catalog
CABIN
by
SKID PLATES
BODYWORK
1
1
1
1
1
2
3
4
4
5
5
6
6
7
8
9
10
1
1
1
1
1
1
2
3
4
5
6
7
8
9
10
1
Cab Rear Sagebrush Green Metallic [AX]
5437734498
Not Available
1
Cab Rear Stealth Black
5437734464
$1 627,49 Unit Price incl. VAT
1
Cab Rear NBU Camo [AQ]
5437811455
$1 067,31 Unit Price incl. VAT
1
Cab Rear Digital Military [AC]
5437811583
Not Available
1
Cab Rear Sunset Red [AL]
5437734520
2637271-520
$1 538,24 Unit Price incl. VAT
2
ASM. RACK REAR BLACK [INCL. WARNING DECAL]
2633429070
$390,59 Unit Price incl. VAT
3
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
4
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
5
SCR-TXTH-M6X1.0X50 8.8 ZPB
7519001
$7,34 Unit Price incl. VAT
6
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
7
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
8
TUBE SUPPORT RACK REAR FRONT BLACK
5335770329
$167,99 Unit Price incl. VAT
9
BRACKET RACK REAR BLACK
1016782329
$195,29 Unit Price incl. VAT
10
SUPPORT RACK REAR BLACK
1015776067
$121,79 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
