1
Engine displacement
570
2
Year
2018
3
Trim
570 SPORTSMAN 6X6
4
Parts Catalog
EXHAUST
5

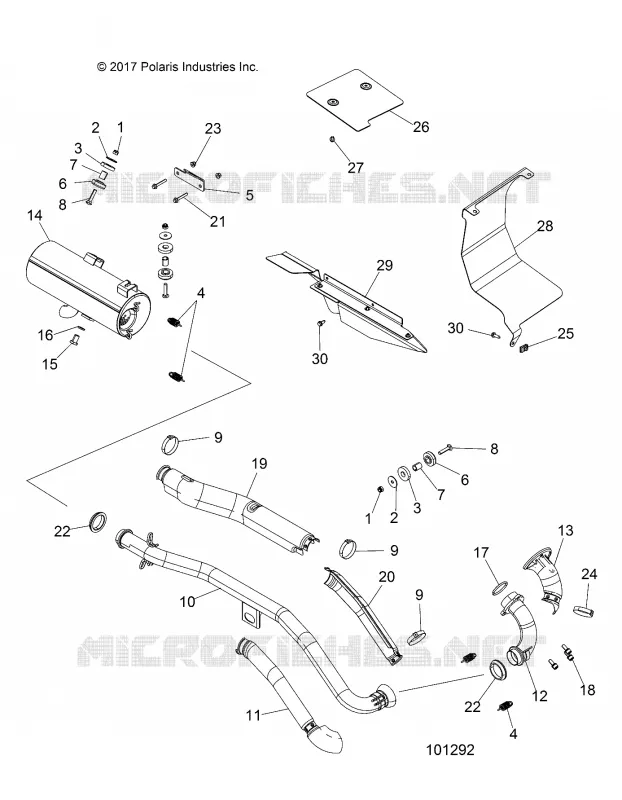

Parts Diagram
Parts Catalog
CYLINDER
by
ENGINE, MOUNTING
EXHAUST
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
26
27
28
29
30
30
1
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
2
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
3
WSHR-15.4X38.1X7.9 RUBBER
5414945
$9,44 Unit Price incl. VAT
4
SPRING EXHAUST
7041804
$16,79 Unit Price incl. VAT
5
BRACKET SILENCER FRAME
5241663
$19,94 Unit Price incl. VAT
6
DAMPER-VIBRATION
5414946
$9,44 Unit Price incl. VAT
7
BUSHING-.459 X.625 X.75
5010192
$12,59 Unit Price incl. VAT
8
BOLT CARRIAGE
7515316
$4,19 Unit Price incl. VAT
9
CLAMP-HOSE 2.00-SS
7082359
$25,19 Unit Price incl. VAT
10
ASM-EXHAUST PIPE 570 EFI SS [INCL. PIPE SHIELDS CLAMPS]
1263100
$545,99 Unit Price incl. VAT
11
SHIELD-HEAT EXHAUST MID
5260801
$120,74 Unit Price incl. VAT
12
WELD-MANIFOLD
1263099
$278,24 Unit Price incl. VAT
13
SHIELD-HEAT EXHAUST HEADPIPE
5260800
$68,24 Unit Price incl. VAT
14
WELD-EXHAUST SILENCER [INCL. 1-3]
1263139
1263784
$703,49 Unit Price incl. VAT
15
BOLT-1/2-20X5/8 HXHDCAP-GR5-P
7520756
$10,49 Unit Price incl. VAT
16
WASHER-CLEAN OUT .51X75X.09
7557077
$14,69 Unit Price incl. VAT
17
GASKET-EXHAUST SEALING
5253989
$52,49 Unit Price incl. VAT
18
SCR-M8X1.25X20 HXSOC-CSSPL-SEM
7517555
$15,74 Unit Price incl. VAT
19
SHIELD-HEAT EXHAUST REAR
5260802
5265059
$136,49 Unit Price incl. VAT
20
SHIELD-HEAT EXHAUST MID INNER
5260808
$125,99 Unit Price incl. VAT
21
SCREW HXFL-5/16-18X0.75 GR5 ZY3
7518341
$9,44 Unit Price incl. VAT
22
SEAL EXHAUST
5256385
$52,49 Unit Price incl. VAT
23
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
24
CLAMP-45.0DX7W 304SS OETIKER
7082132
$9,44 Unit Price incl. VAT
25
NUT-CHIMNEY 1/4-20 GR-5
7670096
$3,14 Unit Price incl. VAT
26
SHIELD-EXHAUST BOX 6X6
5262291
$52,49 Unit Price incl. VAT
26
SHIELD-EXHAUST BOX 6X6
5266100
$29,39 Unit Price incl. VAT
27
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
28
SHIELD-FUEL TANK FRAME MNT TRG
5262925
$52,49 Unit Price incl. VAT
29
SHIELD-HEAT AIRBOX
2636957
$89,24 Unit Price incl. VAT
30
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
