1
Engine displacement
550
2
Year
2016
3
Trim
550 LXT
4
Parts Catalog

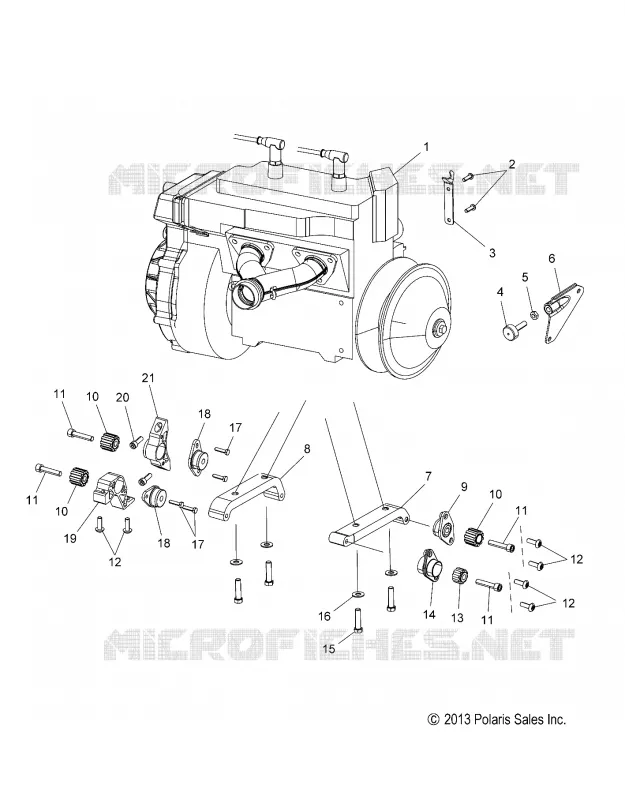

ENGINE, MOUNTING -S16CT5 ALL OPTIONS (49SNOWENGINEMOUNT14550)
5
Parts Diagram
Parts Catalog
ENGINE, FUEL PUMP
by
ENGINE, MOUNTING -S16CT5 ALL OPTIONS (49SNOWENGINEMOUNT14550)
1
2
3
4
5
6
7
8
9
10
10
10
11
11
11
11
12
12
12
13
14
15
16
17
17
18
18
19
20
21
1
2
3
4
1
2
3
4
5
5
5
5
6
6
7
8
8
9
9
9
9
9
10
10
10
11
12
13
13
13
13
14
14
15
16
17
1
KIT SHORT BLOCK
3090317
2208882
$8 011,49 Unit Price incl. VAT
2
BOLT-M6X1.0X20 PH/TX-OLIVE D
7518616
$2,09 Unit Price incl. VAT
3
BRKT. AIR BOX MOUNT
5255060
$26,24 Unit Price incl. VAT
4
STOP-TORQUE COURSE 3/8-16 1.50
3021354
$47,24 Unit Price incl. VAT
5
NUT-3/8-16 HX THIN-Y
7542414
$9,44 Unit Price incl. VAT
6
TORQUE STOP
1018252
$73,49 Unit Price incl. VAT
7
STRAP ENGINE LH
5137722
$115,49 Unit Price incl. VAT
8
STRAP ENGINE RH
5137723
$115,49 Unit Price incl. VAT
9
MOUNT ENGINE PTO REAR
3022410
$120,74 Unit Price incl. VAT
10
MOUNT ENGINE INSERT RAD
3022409
$62,99 Unit Price incl. VAT
11
SCR-SH-M10X1.5X50 12.9 ZFK L
7519334
$9,44 Unit Price incl. VAT
12
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$11,54 Unit Price incl. VAT
13
MOUNT ENGINE INSERT RAD SMALL
3022426
$62,99 Unit Price incl. VAT
14
MOUNT ENGINE W/CLINCH NUT
1019584
$120,74 Unit Price incl. VAT
15
SCR-7/16X14X1.75 HXCP GR 5-Y
7517442
$12,59 Unit Price incl. VAT
16
WASHER-.453X1.0X.078-Y
7555883
$7,34 Unit Price incl. VAT
17
SCR-M6X1.0X25-HX/FL-Y/D
7516823
$5,76 Unit Price incl. VAT
18
MOUNT ENGINE
3022408
$120,74 Unit Price incl. VAT
19
ASM. MOUNT ENGINE FRONT
1018398
$141,74 Unit Price incl. VAT
20
SCR-M8X1.25X25 8.8 SH ZOD P30
7519010
$7,34 Unit Price incl. VAT
21
MOUNT ENGINE REAR
5137116
$89,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
