1
Engine displacement
570
2
Year
2018
3
Trim
RANGER CREW 570 6 SEAT
4
Parts Catalog

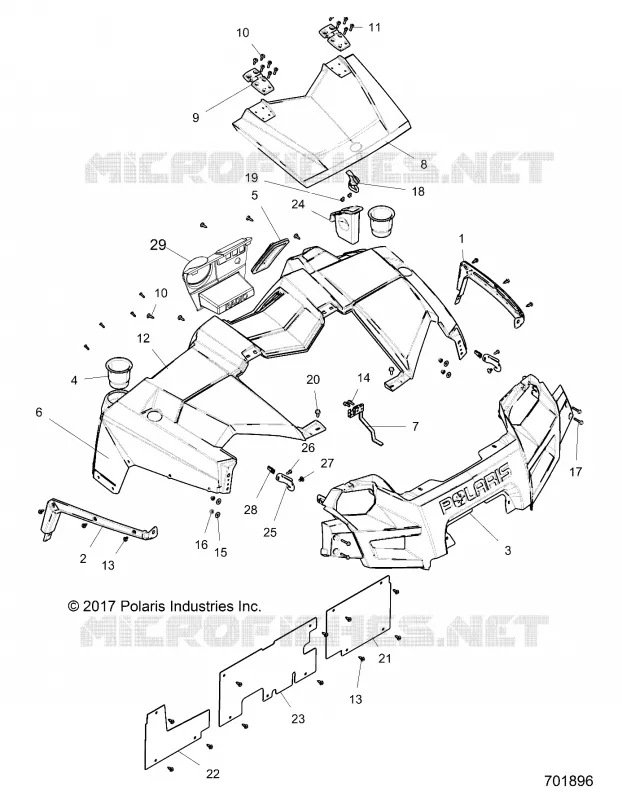

HOOD AND FRONT FASCIA
5
Parts Diagram
Parts Catalog
DECALSS
by
SIDE NETS
HOOD AND FRONT FASCIA
1
2
3
4
5
6
6
7
8
9
10
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
FENDER-FRONT W/FLARE LH BLK
5437568070
$68,24 Unit Price incl. VAT
2
FENDER-FRONT W/FLARE RH BLK
5437569070
$68,24 Unit Price incl. VAT
3
FASCIA-FRONT RANGER BLK
5437575070
$351,74 Unit Price incl. VAT
4
HOLDER-CUP
5436836
$36,74 Unit Price incl. VAT
5
GROMMET-SHIFT LEVER
5413557
$13,64 Unit Price incl. VAT
6
K-HOOD W/DASH RGR FS CRW SBG [INCL. DECAL]
2207127
$1 259,99 Unit Price incl. VAT
6
HOOD-W/DASH RNGR SAGEBRSH MET.
5437573498
$1 259,99 Unit Price incl. VAT
7
ASM-LATCH HOOD 3P FS
2010437
$115,49 Unit Price incl. VAT
8
HOOD-CTR ACCESS RNGR SGEBRSH M [A1]
5438256498
$330,74 Unit Price incl. VAT
9
ASM-HINGE
5437902
$19,94 Unit Price incl. VAT
10
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
11
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
$9,44 Unit Price incl. VAT
12
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
13
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
14
SCR-HXFL-M6X1.0X20 8.8 ZOD NYL
7518613
$7,34 Unit Price incl. VAT
15
WASHER-.28 X .81 X .06 ST-M
7555935
$4,19 Unit Price incl. VAT
16
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$7,34 Unit Price incl. VAT
17
SCR-HXFLM6X1.0X35 8.8 ZPB
7520292
$7,34 Unit Price incl. VAT
18
LATCH-HOOD
5632560
$68,24 Unit Price incl. VAT
19
SCR-#14X1/2 PHPN HILO STL ZNC
7519060
$7,34 Unit Price incl. VAT
20
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
21
PLATE-WHEEL WELL 3P FS BLK
5452657070
$29,39 Unit Price incl. VAT
22
PLATE-WHEEL WELL 3P FS PS BLK
5452781070
$89,24 Unit Price incl. VAT
23
PLATE-WHEEL WELL 3P FS CEN BLK
5452782070
$62,99 Unit Price incl. VAT
24
STORAGE-PHONE
5415693
$89,24 Unit Price incl. VAT
25
BRKT-HEADLIGHT
5262056
$16,79 Unit Price incl. VAT
26
SCR-TX TRUSS-#14X3/4 HI/LO ZBK
7519045
$6,29 Unit Price incl. VAT
27
CLIP-PLASTIC DART NYLON
7670088
$3,14 Unit Price incl. VAT
28
NUT-1/4-20 U-TYPE(.080-.170)
7670145
$4,19 Unit Price incl. VAT
29
PANEL-DASH CONTROLS BLK [INCL. DECAL]
5438585070
$104,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
