1
Engine displacement
0
2
Year
1993
3
Trim
EURO CLASSIC - E930864
4
Parts Catalog

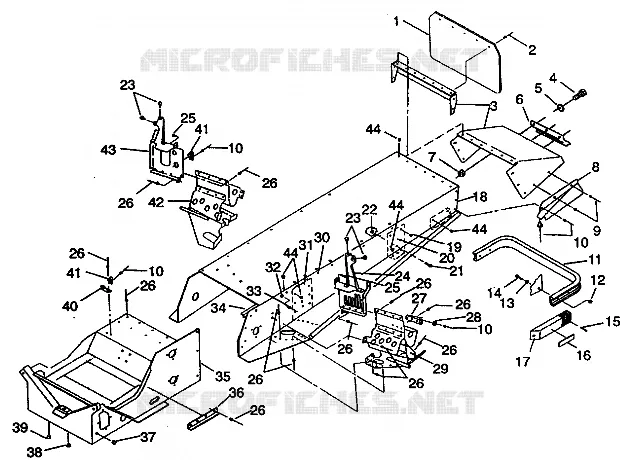

TUNNEL ASSEMBLY CLASSIC E942865 AND CLASSIC TOURING E942875 (49274027400001)
5
Parts Diagram
Parts Catalog
by
HITCH ASSEMBLY CLASSIC E942865 and CLASSIC TOURING E942875 (49274027400002)
TUNNEL ASSEMBLY CLASSIC E942865 AND CLASSIC TOURING E942875 (49274027400001)
1
FLAP SNOW SILVER Substituted by 5410394-1106 (400)
5410394
5410394-1038
$194,24 Unit Price incl. VAT
2
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
3
CLOSE-OFF ASM REAR BLK. Substituted by 1012232-067 (SKS)
1011694067
Not Available
3
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
Not Available
4
BOLT(10) (Touring Only)
7512062
Not Available
5
WASHER-.20X.67X.048-Y
7555792
$9,44 Unit Price incl. VAT
6
RETAINER FLAP Substituted by 5241874-067 (Touring Only)
5222659067
Not Available
7
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
8
SKIRT RH SNOW BLK. Substituted by 5431645-070
5431645
Not Available
8
SKIRT LH SNOW BLK. Substituted by 5431627-070
5431627
Not Available
9
RIVET 3/16(.063-.250)ST-ST-LF-B
7621472
$2,09 Unit Price incl. VAT
10
RIVET-POP 3/16(.126-.250)-ST-B
7621432
$2,09 Unit Price incl. VAT
11
BUMPER ASM REAR (Touring)
2670122
Not Available
11
BUMPER REAR BLK. (XLT & SP)
5224334067
Not Available
12
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
13
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
14
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
15
SCREW(10)
7511863
$3,66 Unit Price incl. VAT
16
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
17
CAP BUMPER BLK.
5430930070
Not Available
18
TUNNEL ASM BLK(94CLASSIC) (CL)
1011933
Not Available
18
TUNNEL 2-UP(440SKS EURO) [No Longer Available] (Tour.)
1012030
Not Available
19
RIVET SEMI-TUBE (50)
7661812
Not Available
20
BRKT RH.REAR SUSP. (SKS)
1011906067
Not Available
20
BRKT RH R.SUSP.
1011858067
Not Available
20
BRKT LH R.SUSP
1011857067
Not Available
20
BRKT LH.REAR SUSP (SKS)
1011905067
Not Available
21
BOLT(10) Substituted by 7515494 (400 SKS/650 SKS Only)
7515482
Not Available
22
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
23
BUMPER HOOD
5410768
$4,82 Unit Price incl. VAT
24
MT CONSOLE LH
1011951067
$56,90 Unit Price incl. VAT
25
SCREW(10)
7512057
Not Available
26
RIVET (MONOBOLT) Substituted by 7661637
7661620
7661637
$2,09 Unit Price incl. VAT
27
SUPPORT BUMPERSIDE BLK.
5240294067
Not Available
28
STOP BUMPER
5410826
Not Available
29
FOOTREST ASM LH BLK. Substituted by 1012544
1011934
Not Available
30
NUT SERT(10)
7541938
Not Available
31
BRKT. FR.SUSPENSION Substituted by 5211323-067
5211323
$47,24 Unit Price incl. VAT
32
SNAP-MALE(10)
7080227
Not Available
33
RIVET(50)
7621222
$1,04 Unit Price incl. VAT
34
BRACE REINF.TUNNEL
5240242
Not Available
35
BULKHEAD (440SKS) (Classic)
1011923
Not Available
35
BULKHEAD EFI (Touring)
1011948067
Not Available
36
GUARD ADAPTER GUIDE
5222857
$26,24 Unit Price incl. VAT
37
PLUG HOLE(10)
7080512
$4,29 Unit Price incl. VAT
38
PLUG-HOLE
7080398
$10,49 Unit Price incl. VAT
39
BUSHING OPEN/CLOSE(10)
7080399
Not Available
40
BRKT ROPE GUIDE BLK. (StarLite GT)
5222687067
$89,24 Unit Price incl. VAT
41
GUIDE RECOIL
5431385
$19,94 Unit Price incl. VAT
42
FOOTREST ASM RH BLK. Substituted by 1012545
1011935
Not Available
43
MT CONSOLE RH
1011952067
$435,74 Unit Price incl. VAT
44
RIVET Substituted by 7661829
7661828
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
