1
Engine displacement
0
2
Year
1997
3
Trim
XCF - 0971643
4
Parts Catalog
CYLINDER XCF 0971643 (4938613861C005)
5
Parts Diagram
Parts Catalog
CRANKCASE XCF 0971643 (4938613861C004)
by
PISTON CRANKSHAFT XCF 0971643 (4938613861C006)

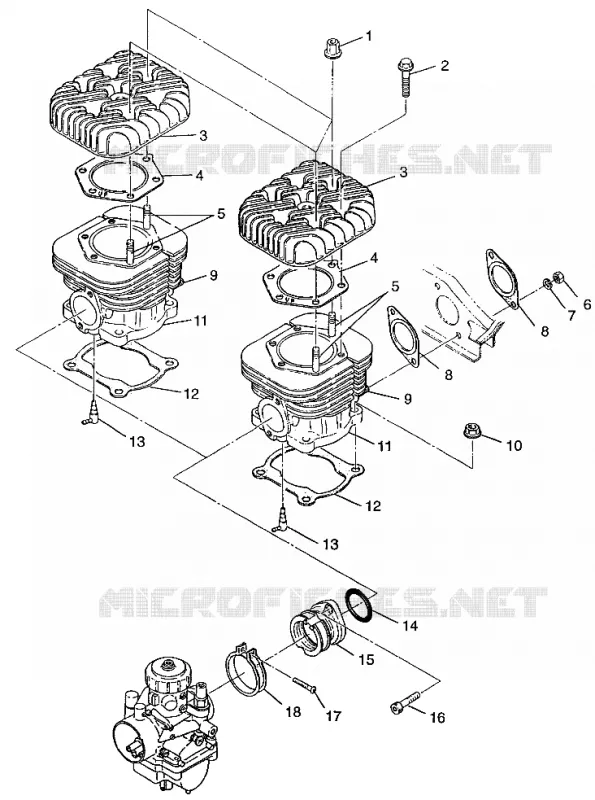

CYLINDER XCF 0971643 (4938613861C005)
1
2
3
3
4
4
5
5
6
7
8
8
9
9
10
11
11
12
12
13
13
14
15
16
17
18
1
NUT-FLANGE(10)
3082910
Not Available
2
BOLT FLANGE
3084271
7521357
$4,19 Unit Price incl. VAT
3
HEAD CYLINDER
3084250
Not Available
4
GASKET HEAD
3084249
Not Available
5
STUD
3083392
Not Available
6
NUT(10)
3080285
Not Available
7
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
8
GASKET EXHAUST
3084026
Not Available
9
STUD (10)
3085326
Not Available
10
NUT FLANGE
3082911
7547013
$3,14 Unit Price incl. VAT
11
CYLINDER (Incl. 2-3)
3084269
Not Available
12
GASKET BASE
3084025
Not Available
13
VALVE CHECK Substituted by 3086785
3083337
7051020
$68,24 Unit Price incl. VAT
14
O-RING Substituted by 3085619
3084272
5418045
$36,74 Unit Price incl. VAT
15
ADAPTER CARB. (Incl. 17)
3085044
Not Available
16
BOLT SOCKET HEAD
3081330
$7,34 Unit Price incl. VAT
17
SCREW
3081497
$4,19 Unit Price incl. VAT
18
ASM. BAND ADAPTOR [INCL. 9]
3083166
7082340
$36,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
