1
Engine displacement
0
2
Year
1997
3
Trim
XCF - 0971643
4
Parts Catalog
CONSOLE XCF 0971643 (4938613861A013)
5
Parts Diagram
Parts Catalog
HOOD
by
BRAKE XCF 0971643 (4938613861B005)

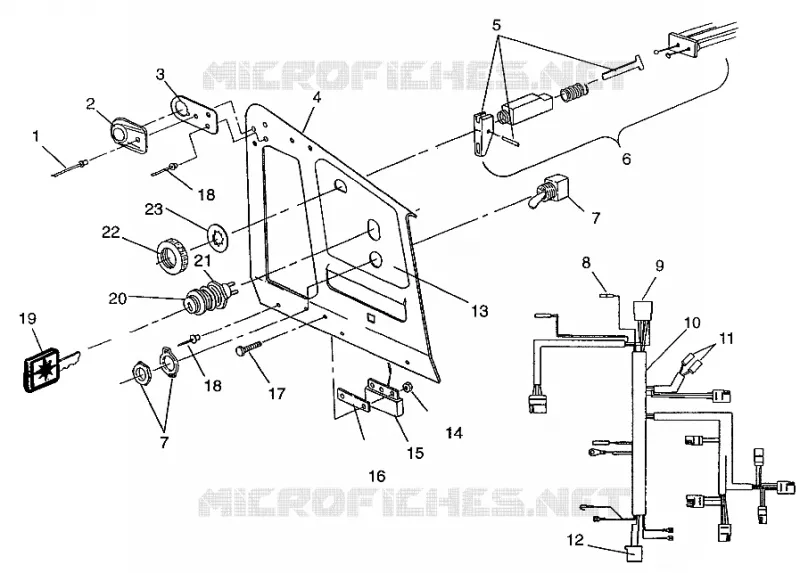

CONSOLE XCF 0971643 (4938613861A013)
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
1
RIVET
7621433
$2,09 Unit Price incl. VAT
2
GUIDE RECOIL
5431385
$19,94 Unit Price incl. VAT
3
BRKT ROPEGUIDE
5240277067
Not Available
4
CONSOLE W/IGNITION BLK SP.
5241518067
Not Available
5
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
6
CABLE CHOKE
7080290
$194,24 Unit Price incl. VAT
7
SWITCH H-BAR HEATER (Incl. Nut & Face Plate)
4110066
Not Available
8
HOUSING
4020133
Not Available
9
HOUSING W/RECEPTACLE
4020057
$5,66 Unit Price incl. VAT
10
HARNESS MAIN WIRE
2460590
Not Available
11
HOUSING
4020153
$2,19 Unit Price incl. VAT
12
HOUSING PACK 2973872
4020063
$6,29 Unit Price incl. VAT
13
DECAL CONSOLE VENTED
7076251
Not Available
14
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
15
REGULATOR 14 VAC.LR-9
4060122
2203873
$188,99 Unit Price incl. VAT
16
SPACER REGULATOR
5211573
Not Available
17
BOLT(10)
7512031
$3,98 Unit Price incl. VAT
18
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
19
CAP W/KEY NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN A B C D OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND O
5410611
Not Available
20
KIT IGN. SWITCH (Incl. 6 7 9)
2200357
Not Available
21
NUT IGN.SWITCH(10)
7543101
Not Available
22
Nut Choke Slide
7080229
$36,74 Unit Price incl. VAT
23
Washer Inter Lock
7571610
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
