CRANKCASE AND CRANKSHAFT FOR RZR 800 EFI - R08VH76AD/AG FROM 2008

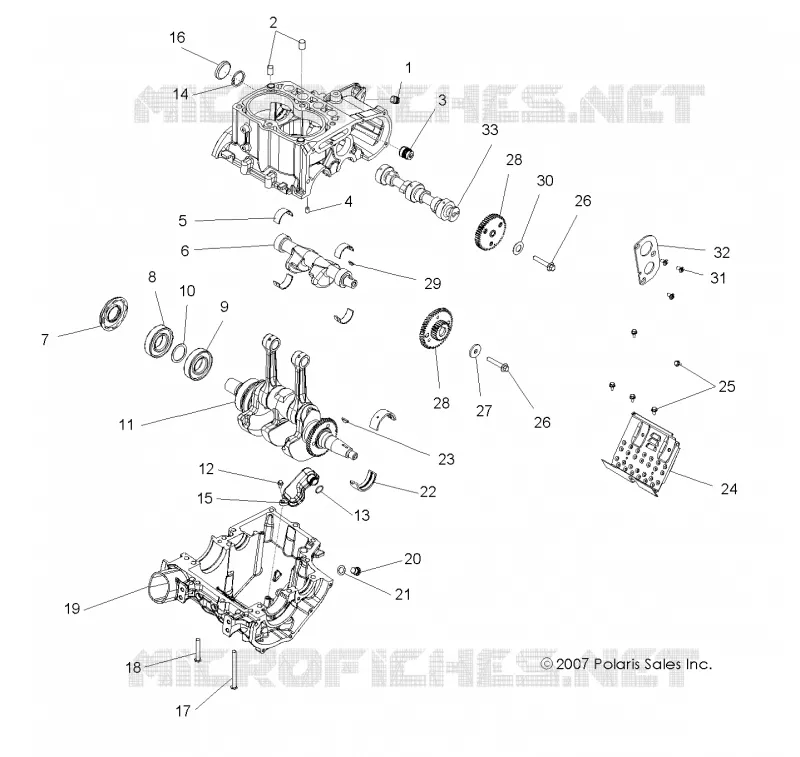

CRANKCASE AND CRANKSHAFT

-

Kit Short Block

2203305

Not Available

1

PLUG EXPANSION 9MM

7051531

$13,64 Unit Price incl. VAT

2

DOWEL

7661175

$10,49 Unit Price incl. VAT

3

PLUG EXPANSION 13MM

7052288

Not Available

4

PIN DOWEL

7663001

$20,99 Unit Price incl. VAT

5

BEARING

5132753

Not Available

6

SHAFT BALANCE

5134837

$346,49 Unit Price incl. VAT

7

SEAL FLANGE

5412676

$73,49 Unit Price incl. VAT

8

BEARING BALL

3514361

$54,59 Unit Price incl. VAT

9

BEARING BALL

3514318

$74,54 Unit Price incl. VAT

10

BUSHING

7556194

$7,34 Unit Price incl. VAT

11

KIT CRANKSHAFT [INCL. 7 10-12]

2203068

$2 504,24 Unit Price incl. VAT

12

SCR-HXFL-M5X0.8X14 18-8

7516603

$19,94 Unit Price incl. VAT

13

O-Ring

5413013

$3,66 Unit Price incl. VAT

14

RING RETAINING

7710512

$7,34 Unit Price incl. VAT

15

Asm. Oil Pickup

1203255

$73,49 Unit Price incl. VAT

16

PLUG EXPANSION 42MM

3060004

$31,49 Unit Price incl. VAT

17

SCREW

7517792

$4,19 Unit Price incl. VAT

18

SCR-M8X1.25X50 HX/FL-Y

7517793

$10,49 Unit Price incl. VAT

19

Kit Crankcase

2203301

Not Available

20

PLUG-SOCKET M12X1.5 DIN 908A

7052306

$31,49 Unit Price incl. VAT

21

WASHER-19X12X1.3 COPPER

5812232

$3,14 Unit Price incl. VAT

22

BEARING

3585704

$40,94 Unit Price incl. VAT

23

KEY WOODRUFF

7721117

$47,24 Unit Price incl. VAT

24

Plate Baffle

5249837

Not Available

25

SCREW-M5X.80X10-HX/FL-Y/D

7518045

$19,94 Unit Price incl. VAT

26

SCREW

7517865

$20,99 Unit Price incl. VAT

27

Spring Torsion Command Lever

7555982

$26,24 Unit Price incl. VAT

28

KIT GEAR SET

2203106

Not Available

29

KEY WOODRUFF

7721131

$41,99 Unit Price incl. VAT

30

WASHER SPRING

7556183

$17,84 Unit Price incl. VAT

31

SCREW-M6X12 TORX DR FH

7517598

$19,94 Unit Price incl. VAT

32

PLATE THRUST

5244286

$99,74 Unit Price incl. VAT

33

Kit Camshaft [Incl. Cam and Lifters]

2202918

$871,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
