1
Engine displacement
600
2
Year
2018
3
Trim
600 SWITCHBACK SP 144
4
Parts Catalog
FRONT WISHBONES
5

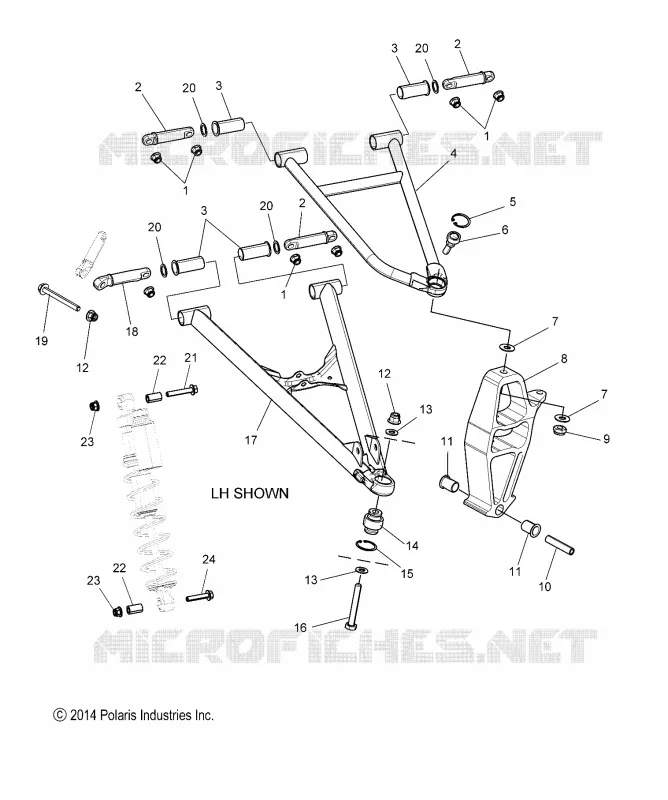

Parts Diagram
Parts Catalog
STEERING, SKI ASM.
by
SUSPENSION, IFS SHOCK (7044518)
FRONT WISHBONES
1
1
1
2
2
2
3
3
3
4
4
5
7
8
8
9
10
11
11
12
12
13
13
14
15
16
17
17
18
19
20
20
20
20
21
22
22
12
24
1
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
2
SHAFT PIVOT
5139521
5140556
$52,49 Unit Price incl. VAT
3
BUSHING PIVOT
5450297
$6,29 Unit Price incl. VAT
4
CONTROL ARM LH UPPER MOLY MATTE BLACK [ALSO ORDER FASTENERS 1 9]
1824171458
$283,49 Unit Price incl. VAT
4
CONTROL ARM RH UPPER MOLY MATTE BLACK [ALSO ORDER FASTENERS 1 9]
1824172458
Not Available
5
RING RETAINING
7710642
$4,19 Unit Price incl. VAT
7
WASHER-7/16 SAE STF THRU-HRD-Y
7556212
$15,74 Unit Price incl. VAT
8
ASM. SPINDLE LH [INCL. 11]
1823801
$314,99 Unit Price incl. VAT
8
ASM. SPINDLE RH [INCL. 11]
1823802
$314,99 Unit Price incl. VAT
9
NUT-HEX-M12X1.5 8 ZOD NYL
7547464
$6,29 Unit Price incl. VAT
10
BUSHING
5136910
$13,64 Unit Price incl. VAT
11
BUSHING SKI PIVOT
5438460
$27,29 Unit Price incl. VAT
12
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
13
WASHER
7555806
$1,56 Unit Price incl. VAT
14
KIT SPHERICAL BEARING LOWER
2204229
$54,59 Unit Price incl. VAT
15
RING RETAINING
7710539
$4,19 Unit Price incl. VAT
16
SCREW M10x75 HCS
7519015
$10,49 Unit Price incl. VAT
17
CONTROL ARM LOWER LH MATTE BLACK [ALSO ORDER FASTENERS 1 12]
1824169458
Not Available
17
CONTROL ARM LOWER RH MATTE BLACK [ALSO ORDER FASTENERS 1 12]
1824170458
Not Available
18
SHAFT PIVOT LOWER CONTROL ARM FRONT
5139607
5140557
$52,49 Unit Price incl. VAT
19
SCR-M10X1.5X95 HX FLG 10.9 ZOD
7518917
$9,44 Unit Price incl. VAT
20
WASHER
7556758
$6,29 Unit Price incl. VAT
21
SCREW
7518941
$7,34 Unit Price incl. VAT
22
BUSHING
5137360
$7,34 Unit Price incl. VAT
23
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
24
SCR-M10X1.5X50 8.8 HX/FL ZOD
7518971
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
