Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN X2 800 EFI - A09TN76AL/AX/AZ
4
Parts Catalog
IGNITION SYSTEM
5
Parts Diagram
Parts Catalog
WINDSHIELD
by
DRIVE TRAIN, FRONT GEARCASE AND MOUNTING
IGNITION SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
11
15
16
17
18
19
20
21
22
23
24
1
1
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
11
15
16
17
1
Asm. Engine Cover Magneto
1203626
$404,24 Unit Price incl. VAT
2
Asm. Cover Stator
1203334
Not Available
3
Bushing
3514378
$19,83 Unit Price incl. VAT
4
Stator
4011982
2208144
$1 889,99 Unit Price incl. VAT
5
SCR-M6X1.0X35 SOC/CP-Y/D
7517848
$10,49 Unit Price incl. VAT
6
WASHER
7555907
$10,49 Unit Price incl. VAT
7
O-Ring
5412458
Not Available
8
SEAL OIL
5412455
$41,99 Unit Price incl. VAT
9
Wire Spark Plug [If built after 10/09/06]
4011844
$104,99 Unit Price incl. VAT
10
BUSHING
3514553
Not Available
11
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
12
NUT
7547213
$9,44 Unit Price incl. VAT
13
Flywheel
4011981
2208144
$1 889,99 Unit Price incl. VAT
14
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
15
Bracket Wire Holddown
5245364
$73,49 Unit Price incl. VAT
16
SEAL FLANGED
5412881
$57,74 Unit Price incl. VAT
17
SCREW(10)
7515156
$7,34 Unit Price incl. VAT
18
SPACER-COIL MOUNT
5436577
$7,34 Unit Price incl. VAT
19
Kit Ignition Coil (Incl. 24 26 28)
2876049
$451,49 Unit Price incl. VAT
20
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
21
Wire Spark Plug [If built after 10/09/06]
4011845
$104,99 Unit Price incl. VAT
22
PIN DOWEL
7661946
7663002
$9,44 Unit Price incl. VAT
23
Cover Sound Dampening
5813050
$62,99 Unit Price incl. VAT
24
Cover Stator Outer
5436652
Not Available

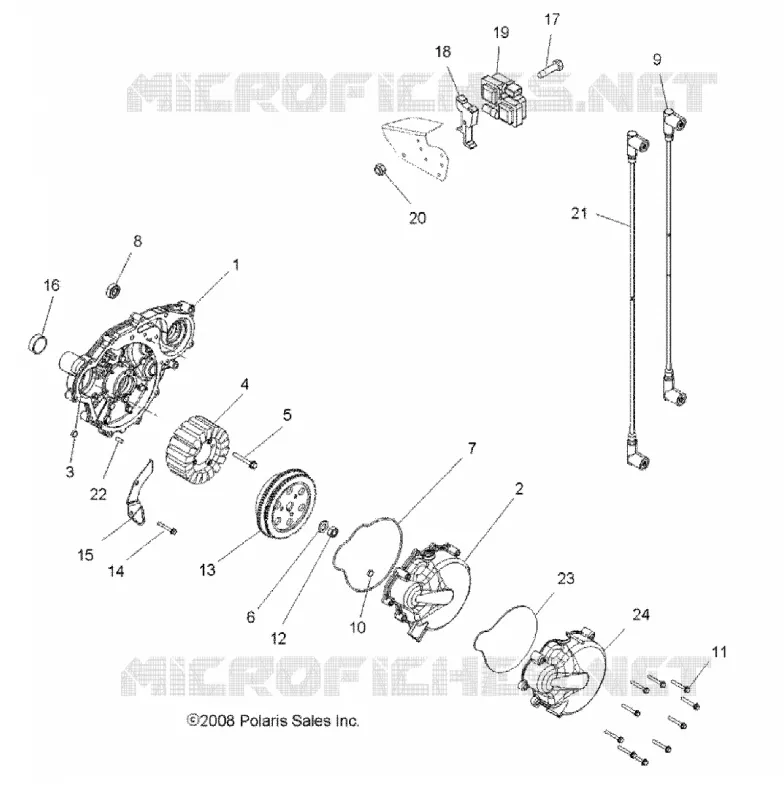

Find the detailed IGNITION SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
