1
Engine displacement
500
2
Year
2022
3
Trim
RANGER 500
4
Parts Catalog

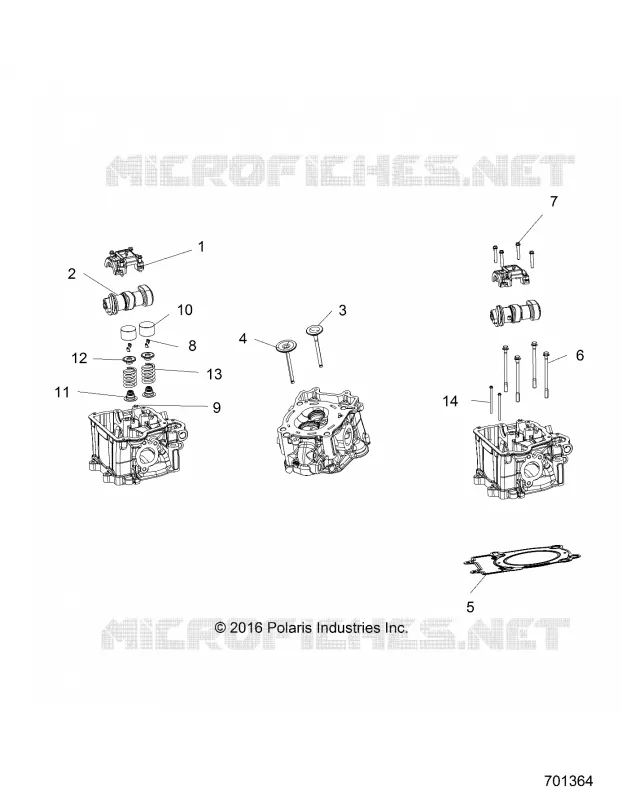

ENGINE, CYLINDER HEAD, CAMS AND VALVES
5
Parts Diagram
Parts Catalog
CYLINDER
by
ENGINE, ENGINE AND TRANSMISSION MOUNTING
ENGINE, CYLINDER HEAD, CAMS AND VALVES
1
2
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
12
13
14
1
ASM-CYLINDER HEAD 1CYL MACH [INCL. HEAD GUIDES CARRIER SCREWS #5]
3023627
$1 065,74 Unit Price incl. VAT
2
ASM-CAMSHAFT 2V
1205960
$367,49 Unit Price incl. VAT
3
VALVE-EXHAUST 38MM
3022704
$125,99 Unit Price incl. VAT
4
VALVE-INTAKE 47MM
3022703
$83,99 Unit Price incl. VAT
5
GASKET-CYL HEAD 1 CYL 93MM
5814301
$104,99 Unit Price incl. VAT
6
SCREW-HXFL-M11X1.25X150 SAE4037
7520144
$25,19 Unit Price incl. VAT
7
SCR-HXFL-M6X1.0X35 10.9 P&O
7520460
$9,44 Unit Price incl. VAT
8
KEEPER VALVE
3022759
$8,39 Unit Price incl. VAT
9
DWL-HOL M8X8
7662273
7662437
$41,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.800
5139458380
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.500
5139458350
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.100
5139458410
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.075
5139458408
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.625
5139458362
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.000
5139458400
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.050
5139458405
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.275
5139458428
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.525
5139458352
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.700
5139458370
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.200
5139458420
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.175
5139458418
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.875
5139458388
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.225
5139458422
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.650
5139458365
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.275
5139458328
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.600
5139458360
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.350
5139458335
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.450
5139458345
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.250
5139458425
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.325
5139458332
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.425
5139458342
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.850
5139458385
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.150
5139458415
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.400
5139458340
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.900
5139458390
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.250
5139458325
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.475
5139458348
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.300
5139458330
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.950
5139458395
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.550
5139458355
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.775
5139458378
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.025
5139458402
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.675
5139458368
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.925
5139458392
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.375
5139458338
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.400
5139458322
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.975
5139458398
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.725
5139458372
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.825
5139458382
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.575
5139458358
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 3.750
5139458375
$83,99 Unit Price incl. VAT
10
TAPPET VALVE GRADED 4.125
5139458412
$83,99 Unit Price incl. VAT
11
SEAL-VALVE STEM SPRING SEAT
3022758
3024537
$15,74 Unit Price incl. VAT
12
RETAINER-VALVE SPRING
5139720
$13,64 Unit Price incl. VAT
13
SPRING-VALVE
7044696
7046205
$16,79 Unit Price incl. VAT
14
SCR-HXFLG M6X1.0X90
7519153
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
