1
Engine displacement
700
2
Year
2002
3
Trim
700-sks
4
Parts Catalog

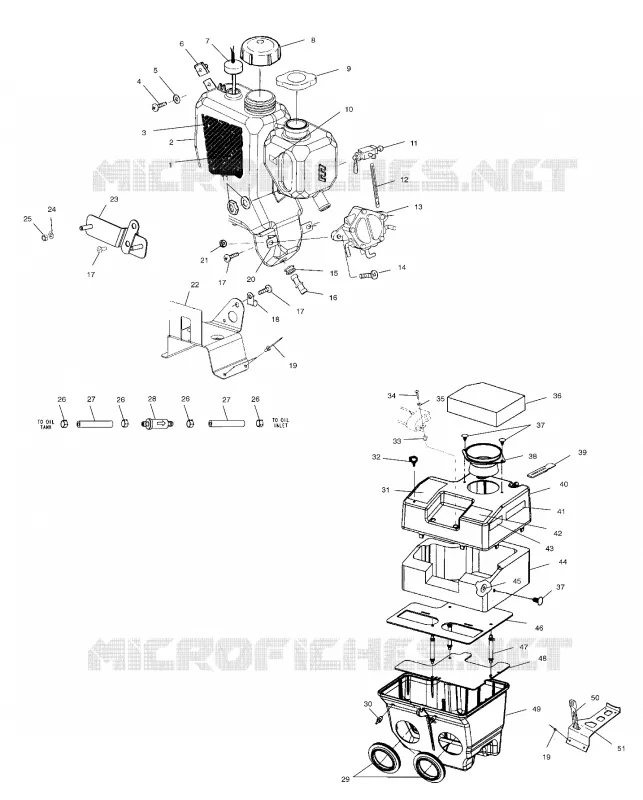

OIL TANK/AIR BOX
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM
by
ENGINE MOUNTING
OIL TANK/AIR BOX
1
DECAL FUEL SHUT-OFF
7077442
Not Available
2
ASM-OIL TANK W/FOIL LIQ
1253353
Not Available
3
FOIL OIL TANK
5811934
Not Available
4
BOLT LOCK
7512276
$9,44 Unit Price incl. VAT
5
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
6
NUT-CHIMNEY 1/4-20 GR-5
7670096
$3,14 Unit Price incl. VAT
7
SENSOR OIL LEVEL
4110134
$141,74 Unit Price incl. VAT
8
CAP OIL VENTED
1240094
1244736
$68,24 Unit Price incl. VAT
9
CAP PRESSURE (13 LB)
2511270
$47,24 Unit Price incl. VAT
10
DECAL-SURGE TANK #FULL COLD#
7078147
Not Available
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
RETAINER SS.
7080654
$29,39 Unit Price incl. VAT
14
SCR-1/4-20X1-PH/TRX-GR5.1-Y
7517455
$13,64 Unit Price incl. VAT
15
GROMMET-FLANGED .36X.56X1.06
7052028
$11,54 Unit Price incl. VAT
16
FTTNG STRAIGHT PRESS-IN
7052207
Not Available
17
SCREW(10)
7517615
Not Available
18
CLIP-J
7080884
$7,34 Unit Price incl. VAT
19
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
20
BRKT FUEL PUMP MOUNT-Z
5242680
$15,95 Unit Price incl. VAT
21
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
22
BRKT-OIL TANK W/BRIDGE
5244339
Not Available
23
BRKT CDI MOUNT 110MM-Z
1012947
$38,42 Unit Price incl. VAT
24
BURR RIVET(50) Substituted by 7555904
7555746
7555904
$1,56 Unit Price incl. VAT
25
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
26
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
27
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
28
FILTER
2530009
$12,59 Unit Price incl. VAT
29
BOOT CARB MIKUNI TM40
5411676
Not Available
30
Fitting
7052127
$6,29 Unit Price incl. VAT
31
DECAL COOL.SYSTEM [No Longer Available]
7075359
Not Available
32
CLIP-SILENCER BOX-C 98 INDY
7670102
$4,19 Unit Price incl. VAT
33
NUT WELL
7541923
$10,49 Unit Price incl. VAT
34
SCREW
7512279
$1,56 Unit Price incl. VAT
35
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$3,14 Unit Price incl. VAT
36
DUCT AIR INLET ASM.
2632132
$99,74 Unit Price incl. VAT
37
CLIP-FIR TREE DART 6.35MM
7670090
$2,09 Unit Price incl. VAT
38
DUCT AIR INLET SRP
5433436
Not Available
39
RETAINER-TAB (10)
5411075
Not Available
40
Top Silencer
5433807
Not Available
41
Decal Adjustable Driven Clutch
7073820
Not Available
42
DECAL AIR BOX CAUTION
7075351
Not Available
43
DECAL GREASING
7073426
Not Available
44
FOAM AIRBOX TOP INTAKE SRP
5811820
Not Available
45
WASHER NYLON
7555798
$1,56 Unit Price incl. VAT
46
PLATE-SILENCER INTAKE SRP
5811824
Not Available
47
CONNECTOR-PLATE SRP
5433437
Not Available
48
PLATE-SILENCER INTAKE LWR SRP
5811825
$17,21 Unit Price incl. VAT
49
SILENCER-INTAKE DRILLED
5433336
$112,86 Unit Price incl. VAT
50
STRAP TIE DOWN
5411129
$16,79 Unit Price incl. VAT
51
BRKT SIL.MOUNT LOW Substituted by 5243729
5241691
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
