1
Engine displacement
700
2
Year
2002
3
Trim
700-sks
4
Parts Catalog

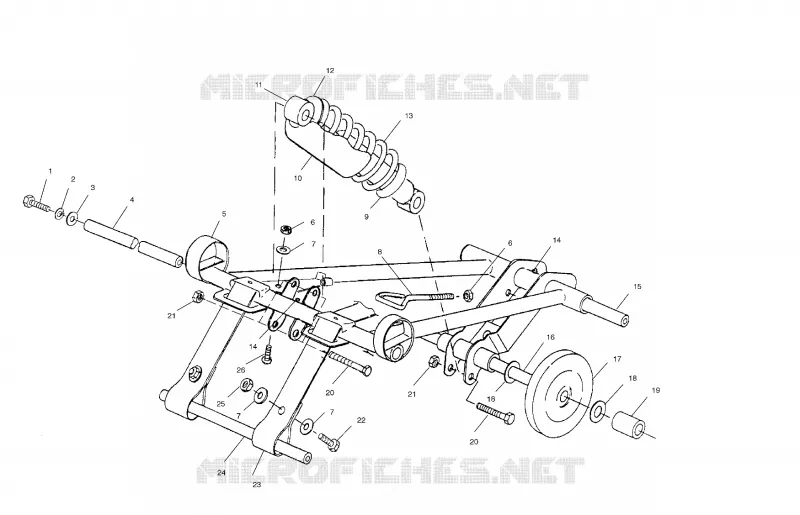

FRONT TORQUE ARM
5
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
REAR TORQUE ARM
FRONT TORQUE ARM
1
BOLT
7517435
$22,56 Unit Price incl. VAT
2
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
3
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
4
SHAFT
5020908
$104,99 Unit Price incl. VAT
5
TORQUE ARM FRONT X10 QA BLK (Incl. NO TAG)
1541466067
Not Available
6
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
7
WASHER (10)
7555959
Not Available
8
BOLT EYE
7010050
Not Available
9
RETAINER SPRING Substituted by 5245067
5241276067
5245067
$41,99 Unit Price incl. VAT
10
SHIELD SPRING
5433503
$47,24 Unit Price incl. VAT
10
SHIELD SPRING
5430671
$47,24 Unit Price incl. VAT
11
SHOCK FRT.TRACK X10 136
7041745
Not Available
11
SHOCK-FRT TRACK X-10 FOX
7041810
Not Available
12
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
13
SPRING BLACK COMP.
7041253067
Not Available
13
SPRING COMP 190# BLK
7041508067
Not Available
14
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
19
SPACER OUTER
5332784
Not Available
20
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
21
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
22
SCREW
7517313
$9,44 Unit Price incl. VAT
23
STRAP LIMITER FRONT
5411045
Not Available
25
NUT
7542344
$7,34 Unit Price incl. VAT
26
SCR-RHCAR-5/16-18X0.75 GR5 ZY3
7512377
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
