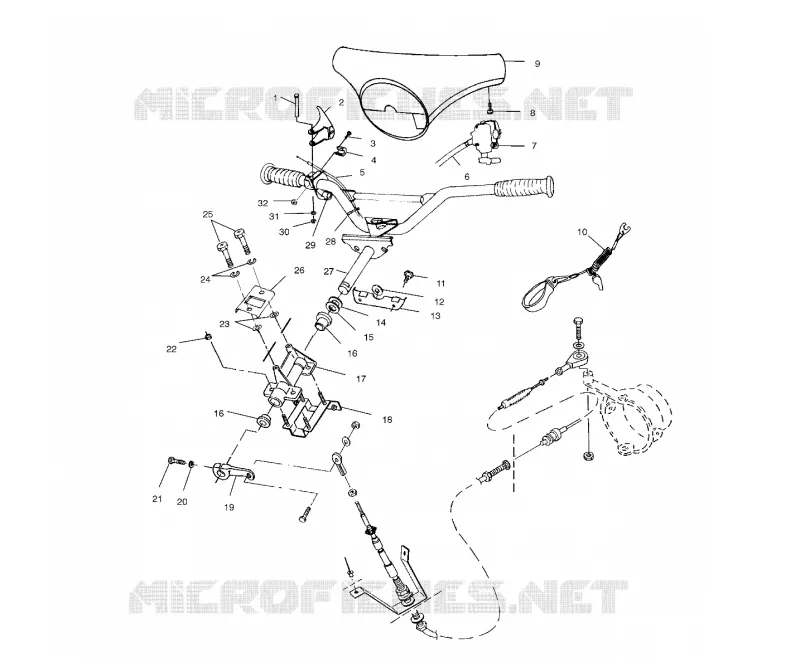

STEERING FOR SLTH - B994573 FROM 1999

STEERING

1

PIN RETAINING

7661628

Not Available

2

LEVER THROTTLE

5432372

Not Available

3

SCREW SS. (10)

7517520

$4,19 Unit Price incl. VAT

4

CLAMP SPLIT-THROTTLE BLK.

5432728

Not Available

5

CABLE THROTTLE

7080577

Not Available

6

CABLE CHOKE 1432MM

7080755

Not Available

7

SW ST/SP/BG/CK/PEB

4110222

Not Available

8

SCREW SS.(10)

7512047

$2,61 Unit Price incl. VAT

9

PAD-HANDLEBAR PEARLSTONE

5432791277

Not Available

10

LANYARD W/WHISTLE

7080675

Not Available

11

BOLT SHOULDER(10)

7515387

Not Available

12

GROMMET CABLE MFD(SLT)

5411111

Not Available

13

PLATE GROMMET

5240334

Not Available

14

WASHER WAVE(10)

7571624

Not Available

15

BUSH.(10)

7555875

$12,80 Unit Price incl. VAT

16

BUSHING STRG.SUPPORT

5431382

$41,04 Unit Price incl. VAT

17

HUB SPRT.STRG/ANODE.

5131509

Not Available

18

PLATE BOLT

1060101

Not Available

19

ARM STRNG. ANODIZED

5131441

$146,46 Unit Price incl. VAT

20

WASHER LOCK S.S.(10)

7552610

Not Available

21

BOLT S.S.(10)

7515375

$6,18 Unit Price incl. VAT

22

NUT HEX S.S.(10)

7542335

Not Available

23

BUSHING LATCHPLATE

5333601

$7,44 Unit Price incl. VAT

24

WASHER LOCK(10)

7552615

Not Available

25

SCREW S.S.(10)

7512051

Not Available

26

PLATE-RECEIVER LATCH SLT-PRO

5243533

Not Available

27

H#BAR ASM W/GRIP BLK SL

1860125070

$278,24 Unit Price incl. VAT

28

CABLE-TIE DIA12-50MM WTHR-RES.

7080138

$5,24 Unit Price incl. VAT

29

BLOCK SPLIT-THROTTLE

5432729

$14,58 Unit Price incl. VAT

30

RING RETAIN.EXT. S.S.(10)

7710426

Not Available

31

WASHER FLAT S.S.(10)

7555840

$5,45 Unit Price incl. VAT

32

NUT

7541931

$9,44 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
