1
Engine displacement
800
2
Year
2010
3
Trim
SPORTSMAN 800 EFI 6X6 - A10CL76AA
4
Parts Catalog
EXHAUST
5
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
ENGINE, FUEL INJECTOR

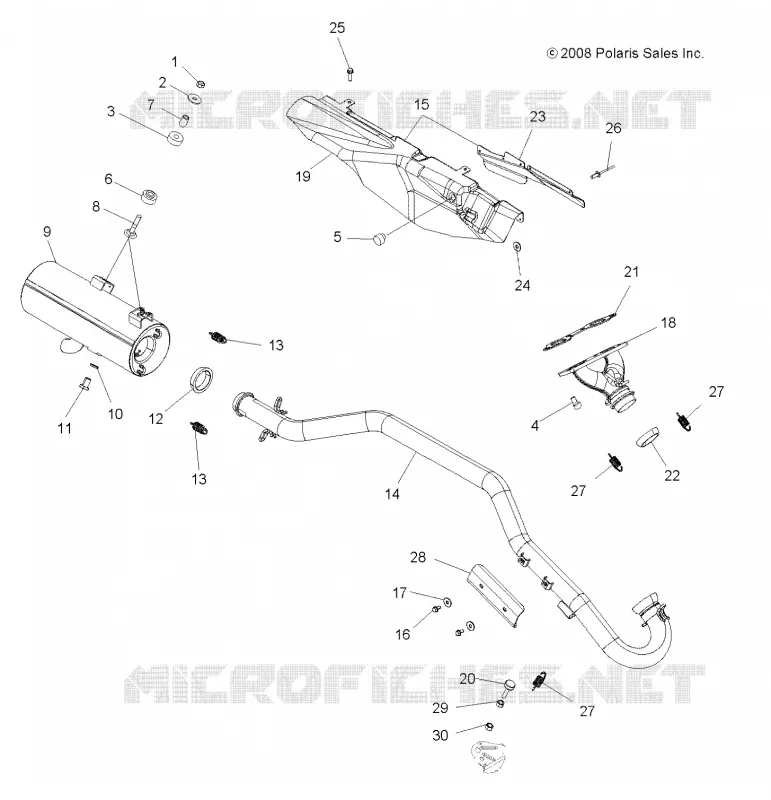

EXHAUST
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
27
28
29
30
1
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
2
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
3
WASHER RUBBER
5410436
$3,14 Unit Price incl. VAT
4
SCR-HXFL-M5X0.8X12 4.8 ZPC NYL
7518984
$14,69 Unit Price incl. VAT
5
BUMPER-RUBBER
5412067
$7,34 Unit Price incl. VAT
6
DAMPENER VIBRATION
5412659
$7,34 Unit Price incl. VAT
7
BUSHING-.459 X.625 X.75
5010192
$12,59 Unit Price incl. VAT
8
BOLT CARRIAGE
7515316
$4,19 Unit Price incl. VAT
9
Silencer Exhaust Black [If built after 7/19/04]
1261223489
$1 034,24 Unit Price incl. VAT
10
WASHER-CLEAN OUT .51X.75X.09
7556230
$2,09 Unit Price incl. VAT
11
BOLT-1/2-20X5/8 HXHDCAP-GR5-P
7512666
$4,19 Unit Price incl. VAT
12
SEAL-EXHAUST SOCKET
3610047
$62,99 Unit Price incl. VAT
13
SPRING EXHAUST
7041804
$16,79 Unit Price incl. VAT
14
Pipe Exhaust
1262005489
Not Available
15
Asm. Shield [Incl. 19 23]
2633625
$346,49 Unit Price incl. VAT
16
SCR-1/4-20X1/2 TFM HW-M
7518490
$2,09 Unit Price incl. VAT
17
WASHER-.28 X .81 X .06 ST-M
7555935
$4,19 Unit Price incl. VAT
18
Manifold Black
1261564489
$157,49 Unit Price incl. VAT
19
Shield Exhaust Outer
5251237
$173,24 Unit Price incl. VAT
20
Isolator
3022073
Not Available
21
GASKET
5811511
$89,24 Unit Price incl. VAT
22
Seal Exhaust
3610119
$36,74 Unit Price incl. VAT
23
Shield Exhaust Inner
5251532
$83,99 Unit Price incl. VAT
24
WSHR-11/64X3/8X1/32-Y
7555727
$1,04 Unit Price incl. VAT
25
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
26
RIVET
7621330
$2,09 Unit Price incl. VAT
27
SPRING-EXHAUST
7041789
$16,79 Unit Price incl. VAT
28
Shield Heat
5244014
$62,99 Unit Price incl. VAT
29
NUT-5/16-18-FULL HT-Y
7542301
$3,14 Unit Price incl. VAT
30
Nut Center Lock
7547101
$17,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
