1
Engine displacement
800
2
Year
2010
3
Trim
SPORTSMAN 800 EFI 6X6 - A10CL76AA
4
Parts Catalog
BATTERY
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
by
BULBS
BATTERY
1
2
10
10
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Box Battery
5435696
$34,64 Unit Price incl. VAT
2
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
3
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
4
BATTERY SEALED 30 AMP [OPT.]
4011224
4014609
$283,49 Unit Price incl. VAT
5
KIT BATTERY BOLT
2202848
$7,34 Unit Price incl. VAT
6
PAD RACK MOUNTING
5810455
$6,29 Unit Price incl. VAT
7
Strap Battery Holddown
5247376
$26,24 Unit Price incl. VAT
8
Boot Battery Cable
5413458
Not Available
9
Cable Black
4011139
$78,74 Unit Price incl. VAT
10
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
11
Cable Battery/Solenoid
4012097
$11,96 Unit Price incl. VAT
12
SOENOID STARTER C1100 [INCL 2][A2]
4012001
4081641
$59,84 Unit Price incl. VAT
13
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
14
MOUNT CABLE TIE
7080965
$13,64 Unit Price incl. VAT
15
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
16
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
17
Cable Solenoid/Starter
4010376
$89,24 Unit Price incl. VAT
18
NUT-HXFLGHD M6 SERRATED
7547270
$7,34 Unit Price incl. VAT
19
CLIP-SILENCER BOX-C 98 INDY
7670102
$4,19 Unit Price incl. VAT

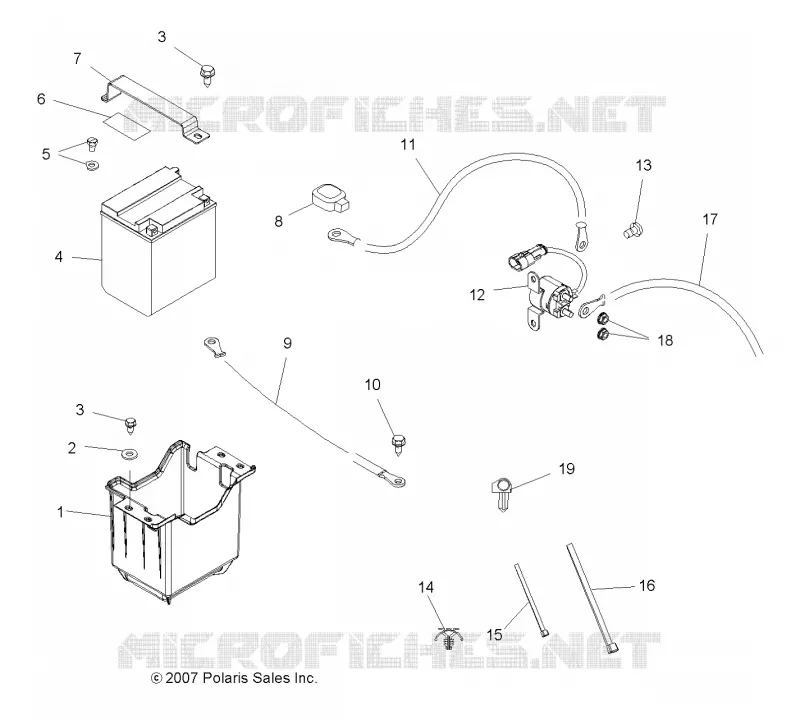

Find the detailed BATTERY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
