1
Engine displacement
325
2
Year
2001
3
Trim
MAGNUM 325 2X4 - A01CB32AA
4
Parts Catalog
FRONT STRUT
5
Parts Diagram
Parts Catalog
TOOL KIT
by

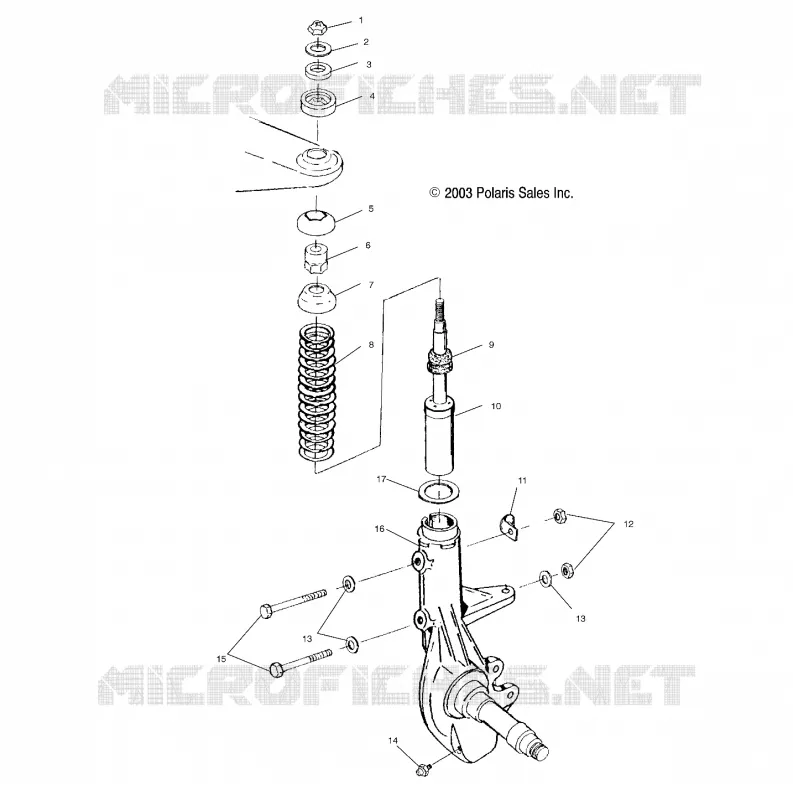

FRONT STRUT
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
16
16
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
NUT-1/2-20 NYLOK THIN HT-Y
7547104
$2,09 Unit Price incl. VAT
2
WSHR-.500X1.50-12GA-Y
7555749
$2,09 Unit Price incl. VAT
3
SPACER-RUBBER
5810291
$7,34 Unit Price incl. VAT
4
PIVOT-BALL TOP DELRIN
5432872
$19,94 Unit Price incl. VAT
5
PIVOT-BALL BOTTOM DELRIN
5432871
$19,94 Unit Price incl. VAT
6
SPACER-1/2-20 STRUT
5132062
$36,74 Unit Price incl. VAT
7
RETAINER-SPRING STRUT
5243364
$36,74 Unit Price incl. VAT
8
Spring Compression
7041375067
7042312-067
$120,74 Unit Price incl. VAT
9
BUMPER-MCU 17.80MM ID (After 11/2/98)
5411608
5412665
$12,59 Unit Price incl. VAT
10
Strut Front
7041761
$283,49 Unit Price incl. VAT
11
CLAMP RUBBER-COATED .562(10)
7080573
$13,64 Unit Price incl. VAT
12
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
13
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
14
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
15
SCR-HH-5/16-18X2.25 GR5 ZY3
7515339
$9,44 Unit Price incl. VAT
16
SUPPORT RH STRUT/SPINDLE
5131040
$703,49 Unit Price incl. VAT
16
SUPPORT LH STRUT/SPINDLE
5131039
Not Available
17
WASHER-2.06X2.62X.105-Y [BJ/BK/BX/B9]
5211115
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
