1
Engine displacement
570
2
Year
2017
3
Trim
RANGER 570 MD
4
Parts Catalog
REAR SUSPENSION
5

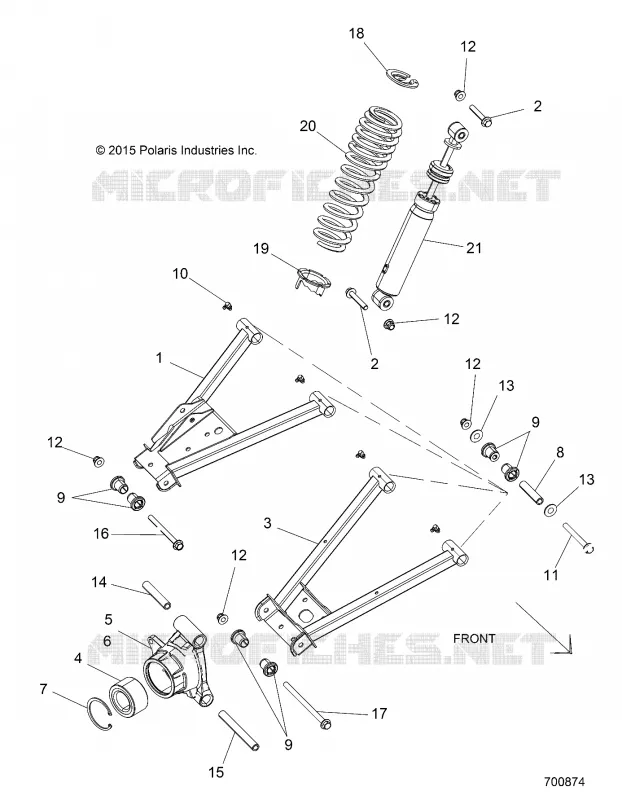

Parts Diagram
Parts Catalog
ENGINE, OIL FILTER AND DIPSTICK
by
STABILIZER BAR
REAR SUSPENSION
1
1
2
2
3
4
5
5
6
7
8
9
9
9
10
11
12
12
12
12
12
13
13
14
15
16
17
18
19
20
21
1
ARM CONTROL UPPER RH MATTE BLACK
1018992458
$173,24 Unit Price incl. VAT
1
ARM CONTROL UPPER LH MATTE BLACK
1020797458
$167,99 Unit Price incl. VAT
2
SCR-HXFL-M10X1.25X60 8.8 ZOD
7518563
$5,76 Unit Price incl. VAT
3
ARM CONTROL LOWER MATTE BLACK
1018995458
$167,99 Unit Price incl. VAT
4
BEARING-WHEEL 40X74X40MM
3514635
$73,49 Unit Price incl. VAT
5
CARRIER BEARING WHEEL LH
5138501
$414,74 Unit Price incl. VAT
5
CARRIER BEARING WHEEL RH
5138502
$414,74 Unit Price incl. VAT
6
O-RING 25.12MMX1.78MM
5414534
$17,84 Unit Price incl. VAT
7
RING-RETAINING 2.875 INTERNAL
7710440
$18,89 Unit Price incl. VAT
8
SHAFT-PIVOT 70.99MM 15.88OD
5138797
$16,79 Unit Price incl. VAT
9
ASM-BUSHING HD W/SEAL 5.23 FLG [OPTIONAL]
1543367
$19,94 Unit Price incl. VAT
10
FITTING ZERK 90 DEGREE
7080510
$10,49 Unit Price incl. VAT
11
SCR-HXFL-M10X1.25X95 10.9 ZOD
7519043
$17,84 Unit Price incl. VAT
12
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
13
WASHER
7556153
$3,66 Unit Price incl. VAT
14
SHAFT-PIVOT 89.71MM 15.88OD
5138794
$10,49 Unit Price incl. VAT
15
SHAFT-PIVOT 139.1MM 15.88OD
5138796
$23,09 Unit Price incl. VAT
16
SCR-HXFL-M10X1.25X115 8.8 ZOD
7518566
$13,64 Unit Price incl. VAT
17
SCR-HXFL-M10X1.25X165 10.9 ZOD
7519042
$17,84 Unit Price incl. VAT
18
RETAINER-SPRING STEEL
5251753
$19,94 Unit Price incl. VAT
19
CAM-ADJUSTING SPRING STEEL
5253768
$68,24 Unit Price incl. VAT
20
SPRING REAR MATTE BLACK
7043884458
$173,24 Unit Price incl. VAT
21
SHOCK REAR
7044139
$225,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
