1
Engine displacement
550
2
Year
2013
3
Trim
SPORTSMAN TOURING 550 EPS INTL - A13DN5EFL
4
Parts Catalog
DRIVE TRAIN, DRIVE REAR SHAFT
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, DRIVE SHAFT, FRONT
by
DRIVE TRAIN, FRONT GEARCASE INTERNALS

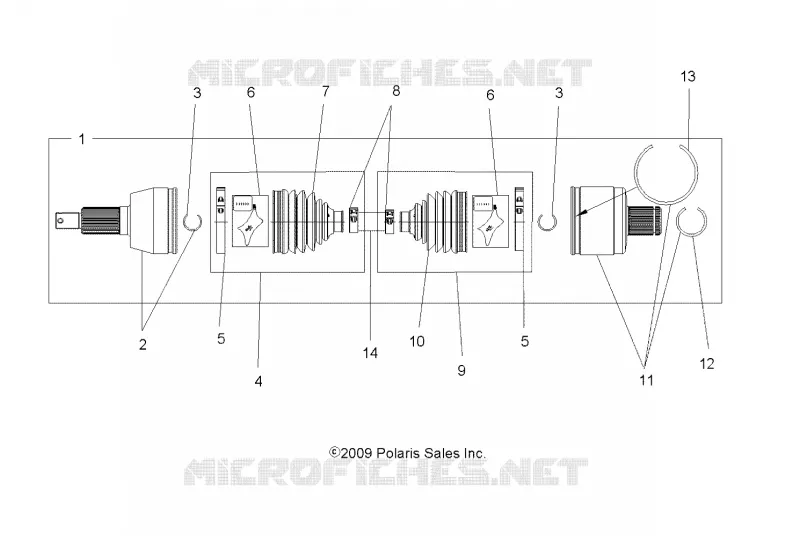

DRIVE TRAIN, DRIVE REAR SHAFT
1
2
3
3
4
5
5
6
6
7
8
9
10
11
12
13
14
1
ASM-SHAFT DRIVE REAR 1300 [INCL. ALL]
1332642
$383,24 Unit Price incl. VAT
2
JOINT CV [INCL. 3]
2204250
$330,74 Unit Price incl. VAT
3
CIRCLIP-1.8X22.2(PR-3011)
2203437
$10,49 Unit Price incl. VAT
4
KIT BOOT CV JOINT [INCL. CLAMPS BOOT GREASE]
2204107
$89,24 Unit Price incl. VAT
5
CLAMP LARGE
3235157
$11,54 Unit Price incl. VAT
6
GREASE(K575/VW738)
2203464
$20,99 Unit Price incl. VAT
7
Boot TPE
3235158
2204107
$89,24 Unit Price incl. VAT
8
CLAMP SMALL
3235159
$17,84 Unit Price incl. VAT
9
KIT BOOT PLUNGING JOINT [INCL. CLAMPS BOOT GREASE]
2204108
$89,24 Unit Price incl. VAT
10
Boot TPE
2204251
2204108
$89,24 Unit Price incl. VAT
11
JOINT PLUNGING
2204252
$330,74 Unit Price incl. VAT
12
CIRCLIP
2204104
$5,76 Unit Price incl. VAT
13
RING SNAP
2203876
$10,49 Unit Price incl. VAT
14
SHAFT
2204253
$115,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
