1
Engine displacement
700
2
Year
2004
3
Trim
A04CH68AK SPORTSMAN 700 - A04CH68AK/AL/AN/AO
4
Parts Catalog

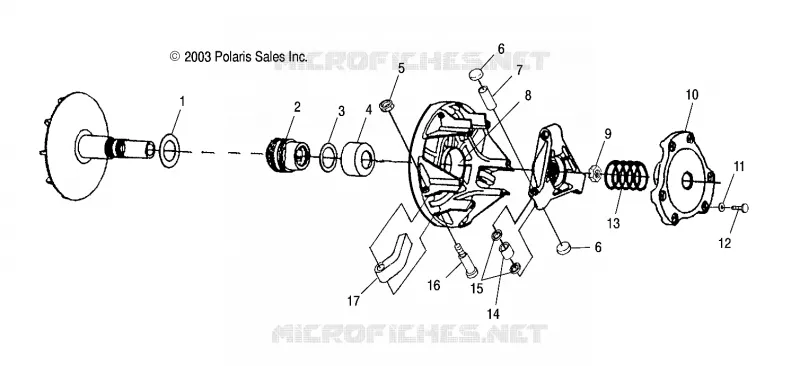

DRIVE CLUTCH
5
Parts Diagram
Parts Catalog
TOOL KIT
by
OIL DIPSTICK
DRIVE CLUTCH
-
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
-
Asm. Drive Clutch EBS Wide [Incl. All Less 12 16]
1321971
$992,24 Unit Price incl. VAT
1
Washer
7556204
$20,99 Unit Price incl. VAT
2
Clutch One Way Drive
1520231
$467,24 Unit Price incl. VAT
3
Washer Brass
7556202
$12,59 Unit Price incl. VAT
4
Spacer
5631119
Not Available
5
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
6
Button Clutch
5431936
5439254
$14,69 Unit Price incl. VAT
7
PIN-ROLLER
5020422
$4,19 Unit Price incl. VAT
8
Bearing
3585712
$54,59 Unit Price incl. VAT
9
Nut Jam
7547130
$41,99 Unit Price incl. VAT
10
BEARING COVER (10)
3576510
$16,79 Unit Price incl. VAT
11
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
12
BOLT(10) Substituted by 7512163
7512176
7512163
$7,34 Unit Price incl. VAT
13
SPRING CLUTCH
7041157
$89,24 Unit Price incl. VAT
14
ASM. ROLLER AND BUSHING
1321622
$62,99 Unit Price incl. VAT
15
WASHER
5430945
5438247
$3,14 Unit Price incl. VAT
16
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
7512266
$5,76 Unit Price incl. VAT
17
Weight Shift 20-56
5631215
$62,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
