1
Engine displacement
1050
2
Year
1996
3
Trim
INTL SLTX - I964590
4
Parts Catalog

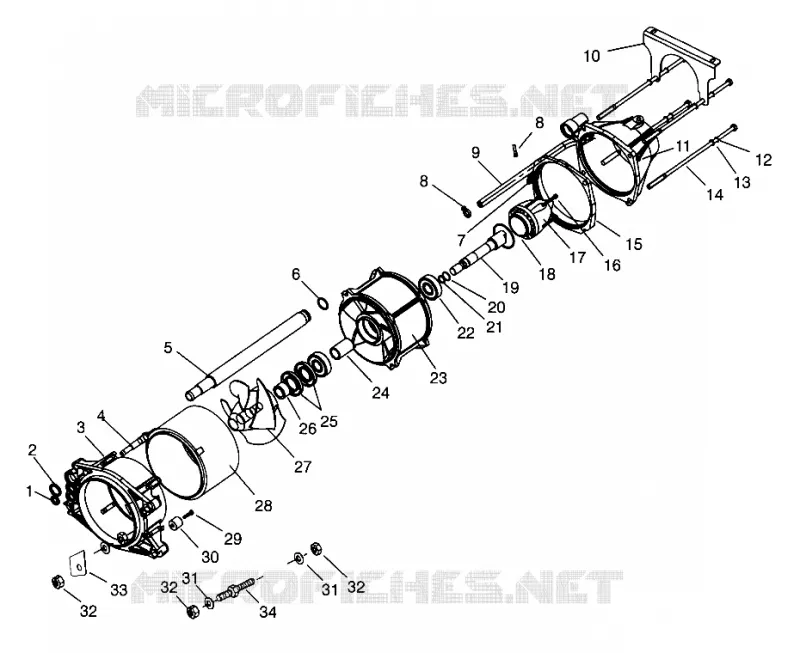

PROPULSION SLTX B964590 AND INTL. SLTX I964590 (4935783578B003)
5
Parts Diagram
Parts Catalog
SEAT SLTX B964590 AND INTL. SLTX I964590 (4935783578A011)
by
EXHAUST SYSTEM SLTX B964590 AND INTL. SLTX I964590 (4935783578B004)
PROPULSION SLTX B964590 AND INTL. SLTX I964590 (4935783578B003)
24
25
26
27
28
29
30
31
31
32
32
32
33
34
24
25
26
27
28
29
30
31
31
32
32
32
33
34
1
SEAL SIPHON TUBE
5411016
Not Available
2
SEAL WATER PIPE
5411107
Not Available
3
HSG PUMP (148MM) Substituted by 5131815 (Mach.)
5131311
Not Available
4
PIPE WATER BILGE (Flanged) SS
5020835
$63,51 Unit Price incl. VAT
5
PIPE WATER.RESTRICTED [No Longer Available]
1060133
Not Available
6
O RING (10)
5410735
$1,04 Unit Price incl. VAT
7
SCREEN ENG.INLET
5431523
Not Available
8
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
9
DESC NOT_AVAILABLE
845005433
Not Available
10
BRKT PUMP EXTENDED
5241876
Not Available
11
NOZZLE ASM 1 TUBE
1350021
Not Available
12
WASHER LOCK S.S.(10)
7552610
Not Available
13
WASHER FLAT S.S. (10)
7555835
$0,93 Unit Price incl. VAT
14
BOLT
7515389
Not Available
15
WEDGE PUMP (0DEGX4DEG) Substituted by 5432841
5630662
Not Available
16
SCREW S.S. ALLEN(10)
7512090
$2,82 Unit Price incl. VAT
17
CONE PUMP
5431519
Not Available
18
O-RING(10)
5410819
$1,04 Unit Price incl. VAT
19
SHAFT STUB Substituted by 5132674
5020697
$76,85 Unit Price incl. VAT
20
O-RING(10)
5410818
$1,04 Unit Price incl. VAT
21
O-RING (10)
5410817
$1,04 Unit Price incl. VAT
22
BEARING
3514008
Not Available
23
STATOR PUMP (Mach.)
5130983
Not Available
24
SPACER
5010294
Not Available
25
SEAL BRG STATOR
3610043
Not Available
26
SPACER IMPELLER
5010295
Not Available
27
IMPELLER 17-23 3 BLADE SS
5131366
Not Available
28
EXTENSION PUMP
5131196
$263,01 Unit Price incl. VAT
29
SCREW(10)
7522019
$1,56 Unit Price incl. VAT
30
ANODE-ZINC Substituted by 2200745
5630598
Not Available
31
WASHER-.406X1.00X.125 FL
7555966
$4,15 Unit Price incl. VAT
32
NUT HEX S.S.(10)
7542455
$1,56 Unit Price incl. VAT
33
BRKT STRG.CABLE
5241741
Not Available
34
STUD MTG PUMP
5020877
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
