1
Engine displacement
0
2
Year
1993
3
Trim
STORM - 0932770
4
Parts Catalog

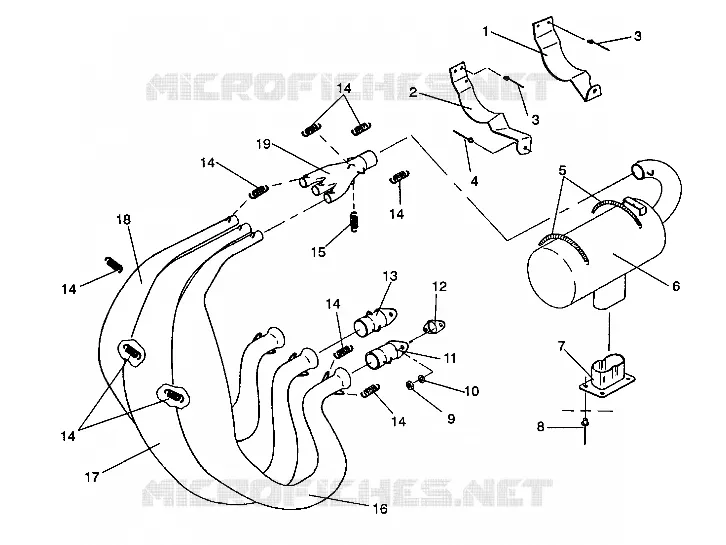

EXHAUST SYSTEM STORM/0930782 AND STORM SKS/0930582 (4923032303026A)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING STORM/0930782 AND STORM SKS/0930582 (4923032303025A)
by
OIL TANK/AIR BOX STORM/0932770 AND STORM SKS/0932570 (4923032303027A)
EXHAUST SYSTEM STORM/0930782 AND STORM SKS/0930582 (4923032303026A)
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
14
14
14
14
14
15
16
17
18
19
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
14
14
14
14
14
15
16
17
18
19
1
BRKT R.RESONATOR BLK.
5222964029
Not Available
2
BRKT FR.RESONATOR BLK. Substituted by 5241727-029
5222963029
Not Available
3
RIVET-POP 3/16(.251-.375)-ST-Z
7621402
$2,09 Unit Price incl. VAT
4
RIVET(50)
7621452
$2,09 Unit Price incl. VAT
5
SPRING TANK
7042033
Not Available
6
RESONATOR BLK.
1260601029
Not Available
7
STINGER OUTLET [No Longer Available]
1260603067
Not Available
8
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
9
NUT(10)
3080285
Not Available
10
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
11
HEADPIPE WELD. Substituted by 1260614-029
1260614
Not Available
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
HEADPIPE CTR.WELD. Substituted by 1260617-029
1260617
Not Available
14
SPRING EXHAUST(10)
7042031
7041687
$12,59 Unit Price incl. VAT
15
SPRING-EXHAUST
7042029
$10,49 Unit Price incl. VAT
16
MUFFLER PTO
1260595
Not Available
17
MUFFLER CTR.
1260597
Not Available
18
MUFFLER MAG. [No Longer Available]
1260598
Not Available
19
STINGER MANIFOLD
1260602
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
