1
Engine displacement
700
2
Year
2008
3
Trim
RANGER 6X6 700 EFI - R08RF68AD/AF/AZ
4
Parts Catalog
HOOD DASHBOARD
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
by
FLOOR FENDERS

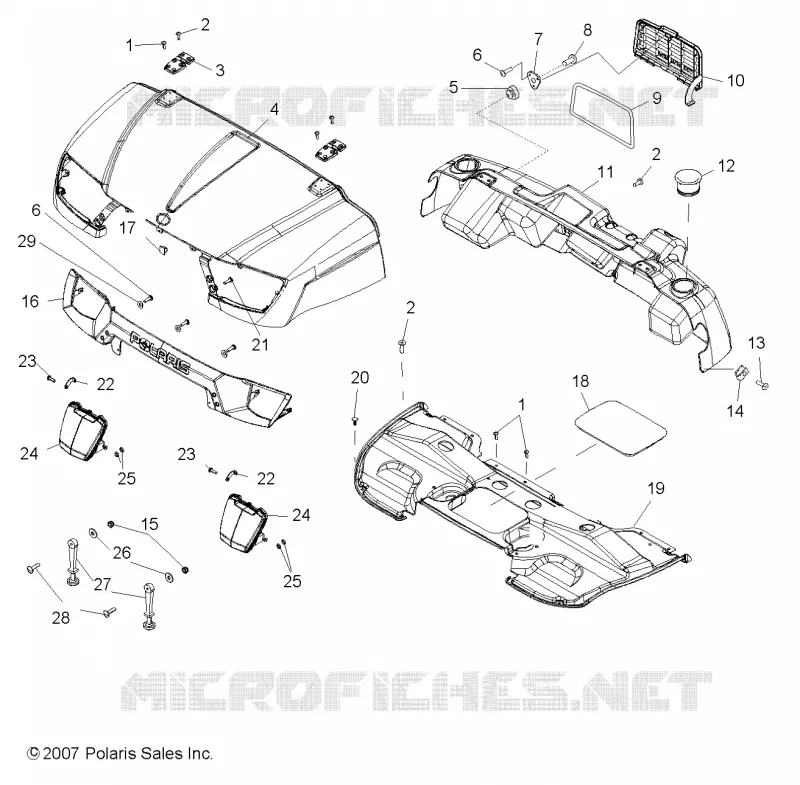

HOOD DASHBOARD
1
1
2
2
2
3
4
4
4
5
6
6
7
8
9
10
10
10
11
11
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
24
24
24
24
24
25
25
26
27
28
29
1
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
$9,44 Unit Price incl. VAT
2
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
3
ASM-HINGE
5437902
$19,94 Unit Price incl. VAT
4
Hood Black [AZ]
5435938070
Not Available
4
Hood Crimson Red (4x4AC)
5435703515
$1 553,99 Unit Price incl. VAT
4
Hood Green (AA)
5435703195
Not Available
5
GROMMET-RUBBER MOUNT .25#
5412504
$7,34 Unit Price incl. VAT
6
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
7
PLATE-CATCH
5910119
$68,24 Unit Price incl. VAT
8
PIN-CATCH
5246693
$17,84 Unit Price incl. VAT
9
Seal Glove Box
5521667
$52,49 Unit Price incl. VAT
10
Cover Glove Box
5434719195
Not Available
10
Cover Glove Box Black [AZ]
5435054070
Not Available
10
Cover Glove Box Crimson
5434719515
$66,66 Unit Price incl. VAT
11
Dash Crimson Red [AD]
5437141515
Not Available
11
Dash Black [AZ]
5437142070
Not Available
11
Dash Green [AF]
5437141195
Not Available
12
Holder Cup
5434763
$12,59 Unit Price incl. VAT
13
SCR-#10X.75 TR/PH/TAP AB-M
7517561
$3,14 Unit Price incl. VAT
14
NUT U-TYPE AB
7670157
$7,34 Unit Price incl. VAT
15
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
16
Grille Hood Black
5435728070
$178,49 Unit Price incl. VAT
17
CLIP WIRE ADHESIVE BACK 1/2#
7670134
$17,84 Unit Price incl. VAT
18
Plug Drain Box
5413002
$52,49 Unit Price incl. VAT
19
Liner Hood
5437106
Not Available
20
CLIP-FIR TREE DART 6.35MM
7670090
$2,09 Unit Price incl. VAT
21
SCREW-10X5/8-HI/LO PN-T25 TRX-M
7518238
$7,34 Unit Price incl. VAT
22
Bracket Headlight
5248655
$62,99 Unit Price incl. VAT
23
Screw
7518831
$7,34 Unit Price incl. VAT
24
KIT-HARNESS HEADLIGHT
2204143
$141,74 Unit Price incl. VAT
24
BULB-HEADLIGHT 50 WATT
4010253
$52,49 Unit Price incl. VAT
24
Asm. Headlight 50W
2411010
$241,49 Unit Price incl. VAT
25
O RING-.549X.755X1.03
5410163
$3,14 Unit Price incl. VAT
26
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
27
STRAP HOOD LATCH
5410370
$47,24 Unit Price incl. VAT
28
SCR-1/4-20X1 TRX TRHD GR5-M
7517230
$2,09 Unit Price incl. VAT
29
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
