1
Engine displacement
600
2
Year
2019
3
Trim
600 SWITCHBACK PRO-S SC SELECT
4
Parts Catalog

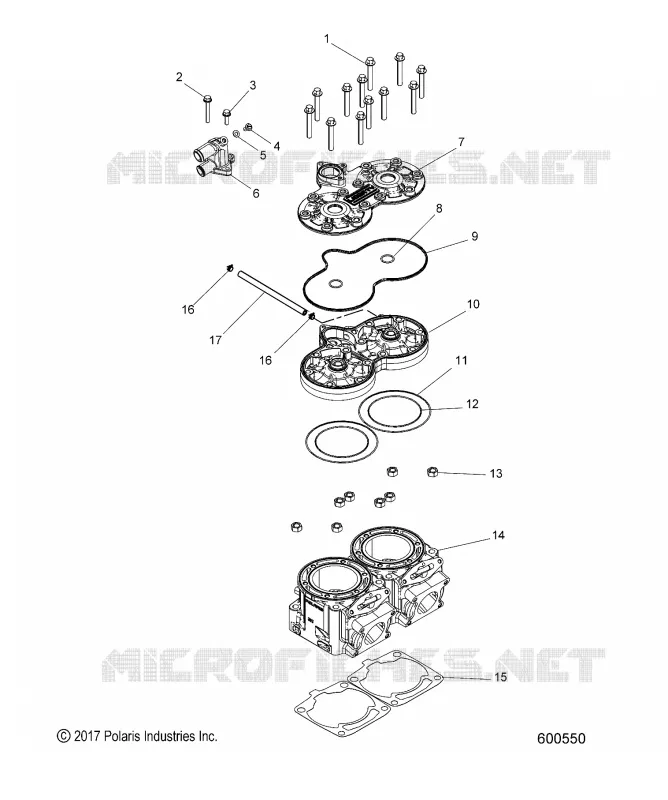

CYLINDER
5
Parts Diagram
Parts Catalog
DECALS SELECT, BLK SIDE PNL W/GOLD ACCENT
by
EXHAUST
CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
1
SCR-M8X1.25X55 HX/FL-Y W/ NYSL
7517533
$8,39 Unit Price incl. VAT
2
SCR-M6X1.0X45 HX/FL-Y
7516825
$10,49 Unit Price incl. VAT
3
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
4
SCR-M6X1.0X13 SL/HX/FL-Z BLEED
7520470
$9,44 Unit Price incl. VAT
5
WASHER-FLAT 6.15X12X1MM-AL
7555998
$2,09 Unit Price incl. VAT
6
COVER-TSTAT DUAL OUT MACH
5139019
$52,49 Unit Price incl. VAT
7
COVER HEAD AS
5138804
$115,49 Unit Price incl. VAT
8
O-RING-.924X1.130X.103 V/N-119
5411411
$1,56 Unit Price incl. VAT
9
SEAL-GLAND HEAD 77.25 AS
5414803
$18,89 Unit Price incl. VAT
10
HEAD-CYLINDER 77.25 AS NOM
3022590
$451,49 Unit Price incl. VAT
11
O-RING 119X124X2.5
5415031
$18,89 Unit Price incl. VAT
12
O-RING-3.489X3.629X.07 HI-TMP
5410932
$36,74 Unit Price incl. VAT
13
NUT-M10X1.25-HX/FL
7547013
$3,14 Unit Price incl. VAT
14
CYLINDER-77.25 600LE BP OR
3022663
$1 171,79 Unit Price incl. VAT
15
GASKET CYLINDER BASE
5813312
$18,89 Unit Price incl. VAT
16
CLAMP HOSE 14.0/10
7082198
$4,19 Unit Price incl. VAT
17
HOSE-COOLANT 5/16# 22CM LONG
5415236
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
