1
Engine displacement
330
2
Year
2003
3
Trim
MAGNUM 330 2X4 - A03CB32AA
4
Parts Catalog

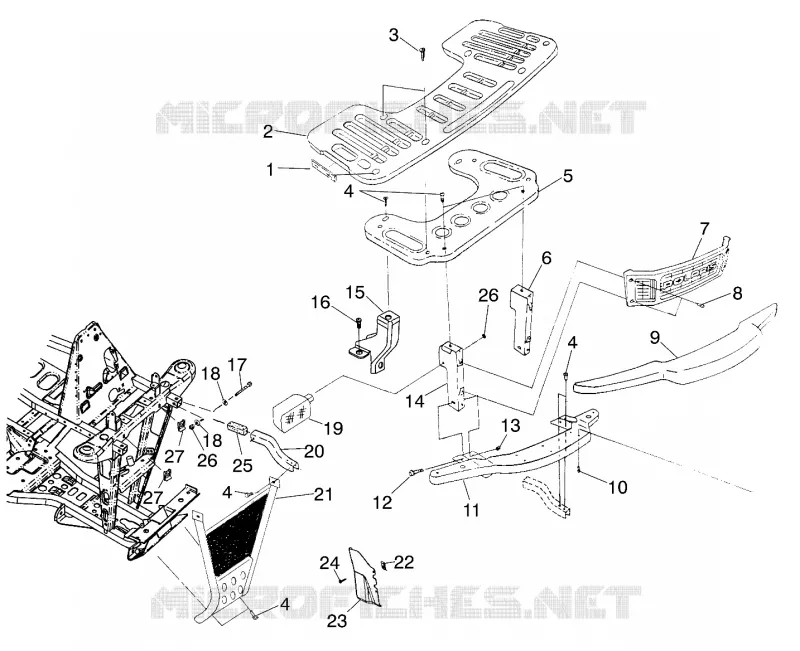

FRONT RACK BUMPER MOUNTING
5
Parts Diagram
Parts Catalog
WISHBONES
by
DECALS
FRONT RACK BUMPER MOUNTING
1
2
3
4
4
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
18
19
19
19
20
20
21
22
23
23
24
25
26
26
27
27
1
Decal Reflector Amber
7079926
Not Available
2
RACK FRONT BLK (Incl. Ref. 3 and Decal)
2670180070
Not Available
3
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
4
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
$2,09 Unit Price incl. VAT
5
Mount Front Rack
5246660067
Not Available
6
RACK LH FRONT BLK
1040471067
Not Available
7
PANEL GRILL BLK
5432299070
$85,88 Unit Price incl. VAT
8
Screw
7517396
Not Available
9
BUMPER FRT. BLK(2X4)
5431774070
Not Available
10
Screw
7515182
7512095
$9,44 Unit Price incl. VAT
11
MOUNT BUMPER BLK(2X4)
1040461067
Not Available
12
SCR-HH-1/4-20X1.75 GR5 ZY3
7512130
$7,34 Unit Price incl. VAT
13
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
14
RACK RH FRONT BLK
1040472067
$19,83 Unit Price incl. VAT
15
Support Front Rack LH
1013744067
Not Available
15
Support Front Rack RH
1013746067
$141,74 Unit Price incl. VAT
16
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
17
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
18
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
19
H/L ASM RH 30/30W
2431012
Not Available
19
BULB H/L 30/30 W.
4030061
Not Available
19
H/L ASM LH 30/30W
2431011
Not Available
20
EXTENSION RH.FRAME BLK.
5241399067
Not Available
20
EXTENSION LH.FRAME BLK.
5241398067
Not Available
21
Brushguard
1014087067
$73,07 Unit Price incl. VAT
22
Nut U-Type
7670112
$4,19 Unit Price incl. VAT
23
Shroud LH (If built after 6/1/01) (If built after 6/1/01)
5434311
$17,21 Unit Price incl. VAT
23
Shroud RH (If built after 6/1/01) (If built after 6/1/01)
5434312
$15,95 Unit Price incl. VAT
24
SCR-#10X.75 TR/PH/TAP AB-M
7517561
$3,14 Unit Price incl. VAT
25
Plug Frame
5810467
Not Available
26
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
27
NUTSERT-1/4-20 HEX .165 GRIP
7547069
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
