1
Engine displacement
1050
2
Year
1999
3
Trim
SLTX - B994590
4
Parts Catalog
CARBURETOR
5
Parts Diagram
Parts Catalog
WATER INLET
by
CRANKSHAFT AND PISTON

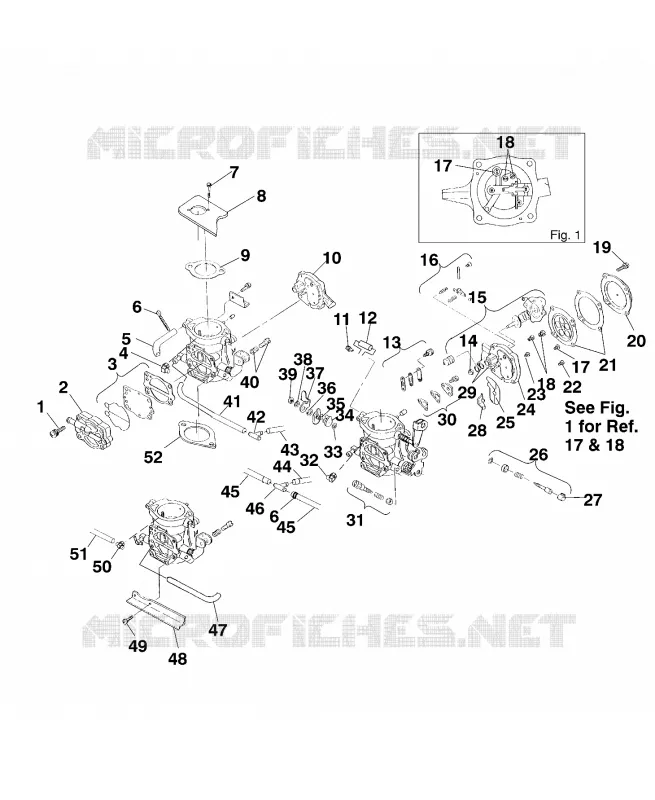

CARBURETOR
-
CARBURETOR ASM.
1253204
Not Available
-
KIT CARB.REBUILD(700PWC) (Incl. 9 16 21 47)
2200788
Not Available
-
CARB.ASM CTR. Substituted by 1253137
3050166
$904,04 Unit Price incl. VAT
-
CARB.ASM FRONT Substituted by 1253137
3050167
Not Available
-
CARB.ASM REAR Substituted by 1253137
3050165
Not Available
1
SCREW FUELPUMP
3050136
Not Available
2
KIT FUELPUMP BODY(KEIHIN)
2200687
Not Available
3
KIT GASKET(FUELPUMP)
2200686
Not Available
4
NOZZLE PTO KEIHIN
3050254
Not Available
5
HOSE FUEL
3050143
Not Available
6
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
7
SCREW
7516816
$38,42 Unit Price incl. VAT
8
BASE SILENCER INTAKE TRIPLE
5630546
$73,07 Unit Price incl. VAT
9
GASKET CARB. UPPER
5830062
$8,39 Unit Price incl. VAT
10
BLOCK-JET KEIHIN Substituted by 3050205 (Rear & Center)
3050258
Not Available
11
JOINT CONNECTING
3050156
Not Available
12
TUBE RUBBER
3050157
Not Available
13
KIT CHECKVALVE MID-RANGE KHN (1 Per Carb)
2200685
Not Available
14
SCREEN FUELSTRAINER
3050144
Not Available
15
PUMP ACCEL.KIT (1 Per Carb)
2201309
Not Available
16
KIT NDLE VLVE 97DOM NOT SL 1050 (1 Per Carb)
2200733
Not Available
17
JET-MAIN 135 KEIHIN (Per Carb)
3050184
$13,22 Unit Price incl. VAT
17
JET-MAIN 140 KEIHIN (Per Carb)
3050186
$13,22 Unit Price incl. VAT
18
JET-PILOT 62 KEIHIN (1 Per Carb)
3050127
$7,97 Unit Price incl. VAT
19
SCREW JET BLOCK COVER
3050135
Not Available
20
COVER JET BLOCK
3050139
$73,07 Unit Price incl. VAT
21
KIT DIAPHRAGM-JET BLOCK (1 Per Carb)
2200730
Not Available
22
JET PILOT KEIHIN (1 Per Carb)
3050260
Not Available
23
SCREW JET BLOCK
3050137
$5,45 Unit Price incl. VAT
24
BLOCK-JET KEIHIN Substituted by 3050204 (Front)
3050259
Not Available
25
O-RING JET BLOCK
3050147
Not Available
26
SCREW MIX IDLE KIT (1 Per Carb)
2201306
Not Available
27
CAP LIMITER
3050140
$9,23 Unit Price incl. VAT
28
COLLAR
3050138
Not Available
29
O-RING (VALVE SEAT)
3050148
Not Available
30
KIT CHECKVALVE MAIN(KEIHIN) (1 Per Carb)
2200688
$50,28 Unit Price incl. VAT
31
KIT IDLESTOP SCREW
2200731
$41,04 Unit Price incl. VAT
32
NOZZLE MAG KEIHIN
3050252
Not Available
33
E-CLIP
3050158
Not Available
34
COLLAR
3050149
Not Available
35
SPRING TORSION
3050150
Not Available
36
WASHER
3050152
Not Available
37
LEVER SYNCHRONIZING
3050153
Not Available
38
WASHER LOCK
3050154
Not Available
39
NUT THROTTLE SHAFT
3050155
Not Available
40
KIT SYNCH.SCREW
2200734
Not Available
41
TUBE RUBBER (Not Shown)
3050263
Not Available
42
T-FITTING (Not Shown)
3050267
Not Available
43
TUBE RUBBER (Not Shown)
3050266
Not Available
44
TUBE RUBBER (Not Shown)
3050265
Not Available
45
TUBE RUBBER (Not Shown)
3050262
Not Available
46
FITTING T (RMK)
3050141
$15,42 Unit Price incl. VAT
47
TUBE RUBBER (Not Shown)
3050264
Not Available
48
PLATE CON KEIHIN
3050164
Not Available
49
SCREW CONNECT.PLATE
3050159
Not Available
50
NOZZLE CTR KEIHIN
3050253
Not Available
51
TUBE RUBBER Substituted by 3050142
3050261
Not Available
52
GASKET CARB.
5830043
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
