1
Engine displacement
850
2
Year
2010
3
Trim
SPORTSMAN XP 850 - A10ZN85AL/AQ/AX
4
Parts Catalog

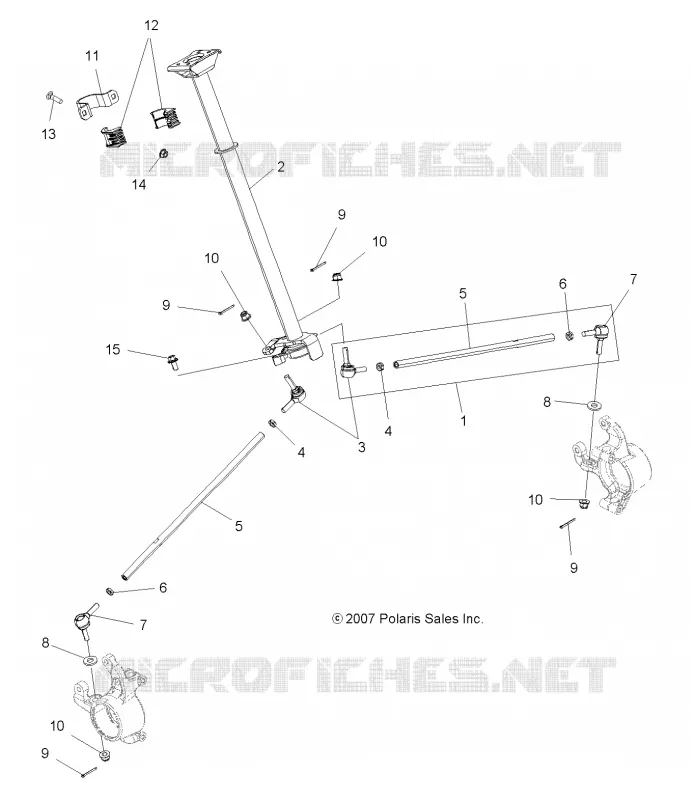

STEERING POST ASM.
5
Parts Diagram
Parts Catalog
STEERING, HANDLEBAR CONTROLS
by
WHEELS, FRONT AND HUB
STEERING POST ASM.
1
2
3
4
4
5
5
6
6
7
7
8
8
9
9
9
9
10
10
10
10
11
12
13
14
15
1
Asm. Tie Rod [Incl. 3-7][Built 12/02/08 and After]
1823620
1824007
$194,24 Unit Price incl. VAT
2
Post Steering
1822778
$404,24 Unit Price incl. VAT
3
Rod End RH
7061175
$141,74 Unit Price incl. VAT
4
Nut Jam RH [Built 12/02/08 and After]
7547452
$7,34 Unit Price incl. VAT
5
Tie Rod
5136903
$89,24 Unit Price incl. VAT
6
Nut Jam LH [Built 12/02/08 and After]
7547451
$7,34 Unit Price incl. VAT
7
Rod End LH
7061174
$141,74 Unit Price incl. VAT
8
WASHER
7556153
$3,66 Unit Price incl. VAT
9
PIN-3/32X3/4-COTTER-Y
7661205
$1,56 Unit Price incl. VAT
10
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
11
Bracket Upper Steering Bushing
5249143
$52,49 Unit Price incl. VAT
12
Bushing Steering Upper
5436128
5438904
$9,44 Unit Price incl. VAT
13
SCR-RHCAR-M8X1.25X20 8.8 ZY3
7518479
$7,34 Unit Price incl. VAT
14
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
15
BOLT-M8X1.25X20 HXHDFLG W/PTCH
7518450
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
