1
Engine displacement
850
2
Year
2010
3
Trim
SPORTSMAN XP 850 - A10ZN85AL/AQ/AX
4
Parts Catalog

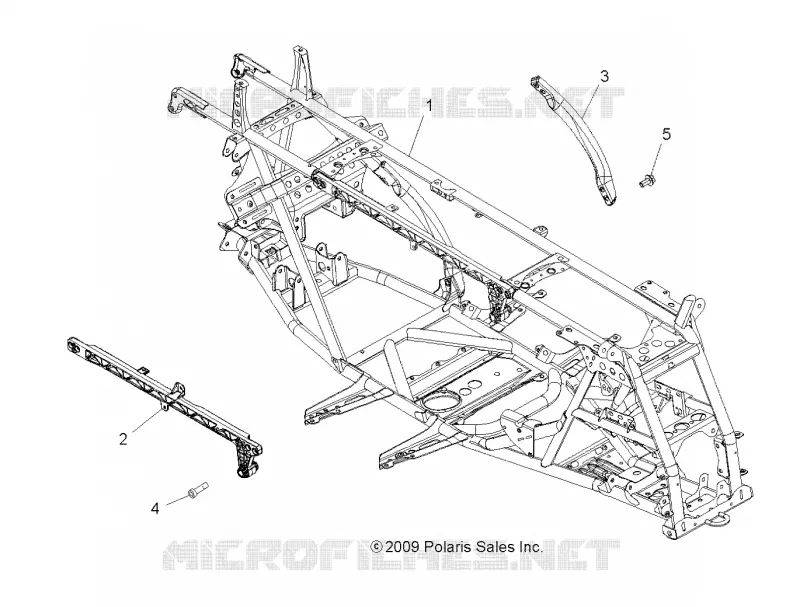

CHASSIS, MAIN FRAME
5
Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
DRIVE TRAIN, DRIVE COUPLER
CHASSIS, MAIN FRAME
1
2
3
4
5
1
Frame Main Black [Incl. 2-5]
1017153067
Not Available
2
Support Frame Upper RH
5135762
5135762-067
$120,74 Unit Price incl. VAT
3
Support Frame Lower Black
5632013067
$73,49 Unit Price incl. VAT
4
SCR-SH-M10X1.5X25 8.8 ZPB D513
7517358
$10,49 Unit Price incl. VAT
5
SCR-HXFL-M10X1.25X30 8.8 ZY3
7518700
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
