1
Engine displacement
500
2
Year
1998
3
Trim
SWEDISH SPORTSMAN 500 - S98CH50E
4
Parts Catalog
REAR BRAKE/FOOT PEDAL
5

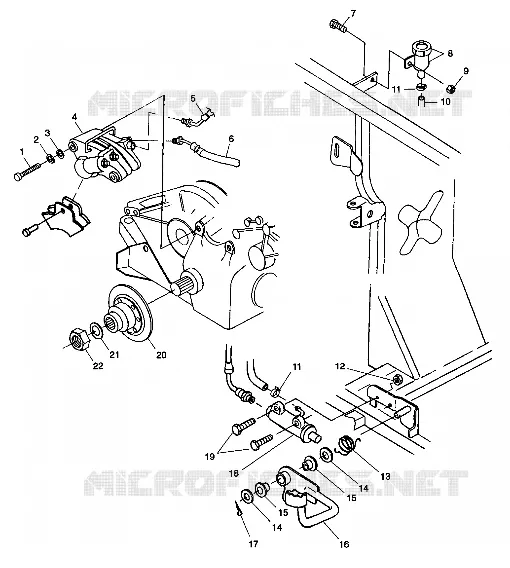

Parts Diagram
Parts Catalog
REAR BRAKE/FOOT PEDAL
by
CYLINDER
REAR BRAKE/FOOT PEDAL
1
BOLT(10)
7515497
$7,34 Unit Price incl. VAT
2
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
3
WASHER
7555806
$1,56 Unit Price incl. VAT
4
CALIPER ASM BRAKE WWOOD 4X4 Substituted by 1910366
1930818
$488,24 Unit Price incl. VAT
4
KIT BRAKEPAD R.AXLE WW
2201189
2202411
$56,16 Unit Price incl. VAT
5
LINE R.BRAKE WWOOD
1930853
Not Available
6
LINE BRAKE CALIPER W/FTNGS.
1910305
Not Available
7
BOLT(10) Substituted by 7512240
7512111
$7,34 Unit Price incl. VAT
8
Reservoir Brake Rear
1930854
$68,24 Unit Price incl. VAT
9
NUT NYLOK FLANGED 1/4 [INTL]
7542153
$3,14 Unit Price incl. VAT
10
HOSE RESERVOIR 1/4#ID
1930855
Not Available
11
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
12
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
13
SPRING-TORSION BRAKE
7041750
$16,79 Unit Price incl. VAT
14
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
15
BUSHING-PEDAL PIVOT
5431107
$16,79 Unit Price incl. VAT
16
ROD BRAKE BLK.
1910280067
Not Available
17
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
18
CYLINDER MASTER BRAKE REAR
1910301
1911113
$325,49 Unit Price incl. VAT
19
Screw
7515158
$9,44 Unit Price incl. VAT
20
DISC ASM BRAKE
1910188
Not Available
21
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
22
NUT NYLOC
7547046
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
