1
Engine displacement
500
2
Year
1990
3
Trim
NOR 500 SKS - N900564
4
Parts Catalog

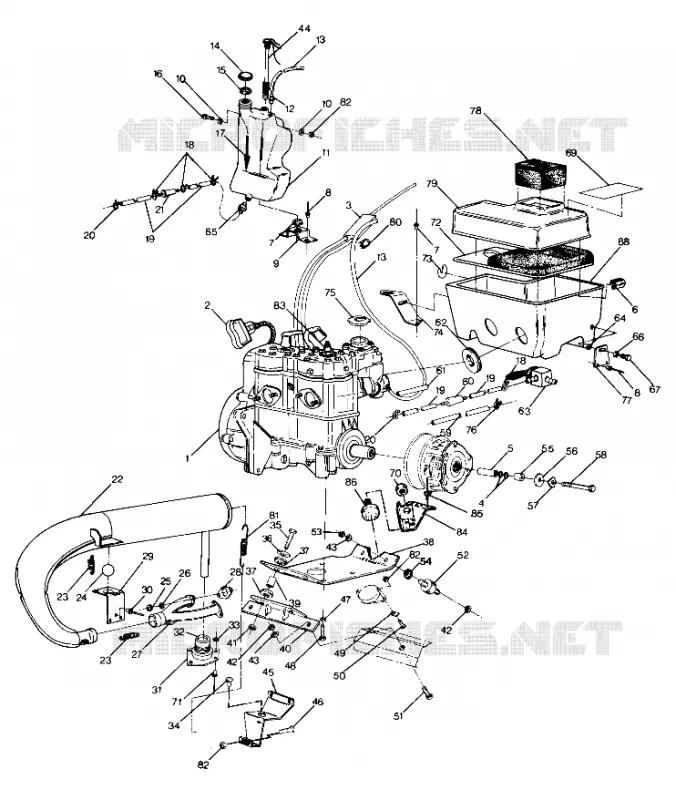

ENGINE MOUNTING 500 AND 500 CLASSIC UPDATED 2/90 (4916791679017A)
5
Parts Diagram
Parts Catalog
SUSPENSION 500 AND 500 CLASSIC UPDATED 2/90 (4916791679015A)
by
COOLING SYSTEM 500 AND 500 CLASSIC UPDATED 2/90 (4916791679019A)
ENGINE MOUNTING 500 AND 500 CLASSIC UPDATED 2/90 (4916791679017A)
1
ENG.EC50PL-01 [No Longer Available] (500 0nly)
1211456
Not Available
1
ENG.EC50PL-02 [No Longer Available] (500 Classic Only)
1211457
Not Available
1
DESC NOT_AVAILABLE
1211470
Not Available
1
DESC NOT_AVAILABLE (500 Classic Only)
1211471
Not Available
2
HANDLE-RECOIL
5430520
Not Available
3
CABLE THROTTLE
7080373
Not Available
4
O-RING CLUTCH BOLT
5410507
$2,09 Unit Price incl. VAT
5
SPACER CLUTCH BOLT
5020513
$60,89 Unit Price incl. VAT
6
CLIP SILENCER
7670055
$11,54 Unit Price incl. VAT
7
GROMMET RUBBER
5410021
Not Available
8
RIVET-POP3/16X.402(.126-.250)
7621425
$2,09 Unit Price incl. VAT
9
BRACKET
5223985
Not Available
10
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
11
TANK OIL
5430921
Not Available
11
TANK OIL (Classic)
5430997
Not Available
12
VENT-TANK
5430579
Not Available
13
VENT LINE 1/8 BULK Substituted by 8360009-600
8360009
8360009-600
$83,99 Unit Price incl. VAT
14
CAP-OIL TANK [No Longer Available]
5430594
Not Available
15
GASKET OIL CAP
5810141
$4,19 Unit Price incl. VAT
16
SCREW(10)
7512116
Not Available
17
DECAL OIL LEVEL [No Longer Available]
7072160
Not Available
18
CLAMP
7080236
$3,14 Unit Price incl. VAT
19
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
8450003-1525
$136,49 Unit Price incl. VAT
20
CLAMP-HOSE(10)
7080134
Not Available
21
FILTER
2530009
$12,59 Unit Price incl. VAT
22
MUFFLER INDY 500
1260537
Not Available
23
SPRING EXHAUST(10)
7042031
7041687
$12,59 Unit Price incl. VAT
24
BALL-EXH.MT.
5430687
$21,20 Unit Price incl. VAT
25
NUT(10)
3080285
Not Available
26
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
27
MANIFOLD Substituted by 1260501-029
1260501
Not Available
28
GASKET EXHAUST Substituted by 3084439
3082510
Not Available
29
SUPPORT MUFFLER Substituted by 1011601-067
1011601
Not Available
30
RIVET CH. Q
7621429
$2,09 Unit Price incl. VAT
31
HAT EXHAUST Substituted by 5432465
5431058
Not Available
32
BOOT EXHAUST
5410502
$47,24 Unit Price incl. VAT
33
WASHER FLAT
7558212
$1,56 Unit Price incl. VAT
34
DAMPNER VIB.
5410467
$16,79 Unit Price incl. VAT
35
SCREW(10)
7512533
Not Available
36
WASHER FLAT
7555740
$3,14 Unit Price incl. VAT
37
MOUNT RUBBER ENGINE [No Longer Available]
5410523
Not Available
38
PLATE ENG.MT.
5222169
Not Available
39
SPACER
5332779
Not Available
40
MOUNT MOTOR Substituted by 1011587-067
1011587
Not Available
41
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
42
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
43
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
44
SENSOR OIL LEVEL W/CONN. Substituted by 4040040 (Classic)
4040016
4040040
$141,74 Unit Price incl. VAT
45
BRKT REAR MUFFLER Substituted by 5222153-067
5222153
Not Available
46
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
47
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
48
BOLT
7512539
$7,34 Unit Price incl. VAT
49
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
50
BOLT-CARRIAGE(10)
7512263
$7,34 Unit Price incl. VAT
51
BOLT(10) Substituted by 7512457
7512491
Not Available
52
MOUNT
3110022
Not Available
53
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
54
WASHER
7555721
$2,09 Unit Price incl. VAT
55
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
56
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
57
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
58
BOLT(10)
7512565
$36,74 Unit Price incl. VAT
59
HOSE IMPULSE [No Longer Available]
5521132
Not Available
60
FILTER FUEL (10)
2530008
$10,49 Unit Price incl. VAT
61
FUEL LINE3/16ID-2FT. Substituted by 8450037-600
5521133
$125,99 Unit Price incl. VAT
62
BOOT
5410271
Not Available
63
VALVE FUEL SHUT-OFF
7052039
Not Available
64
NUT WELL
7541923
$10,49 Unit Price incl. VAT
65
FITTING OUTLET SINGLE
7052042
$13,64 Unit Price incl. VAT
66
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$3,14 Unit Price incl. VAT
67
SCREW
7512279
$1,56 Unit Price incl. VAT
68
SILENCER DRILLED (Classic)
5430955
Not Available
69
DECAL COOLING SYSTEM [No Longer Available]
7072131
Not Available
70
NUT JAM [ACCESSORY]
7542432
$7,34 Unit Price incl. VAT
71
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
72
ASM. BAFFLE
1253102
$120,74 Unit Price incl. VAT
73
DECAL SHUT-OFF VALVE [No Longer Available]
7072151
Not Available
74
BRKT AIR SILENCER BLK. Substituted by 5223973-067
5223973
Not Available
75
CAP PRESSURE
2511155
Not Available
76
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
77
BRKT INTAKE SILENCER [No Longer Available]
5210928
Not Available
78
INTAKE ASM FOAM
1253107
$68,24 Unit Price incl. VAT
78
FOAM INTAKE TOP
5810457
Not Available
79
COVER SILENCER
5430920
$79,47 Unit Price incl. VAT
80
CLIP(10)
7080278
$4,71 Unit Price incl. VAT
81
SPRING-EXHAUST
7042029
$10,49 Unit Price incl. VAT
82
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
83
Plug Spark NGK BR9ES
3070163
$7,34 Unit Price incl. VAT
84
BRACKET Substituted by 1011741-067
1011741
$62,99 Unit Price incl. VAT
85
RIVET Substituted by 7661638
7661625
7661638
$2,09 Unit Price incl. VAT
86
PLATE AIR SILENCER
5850075
$47,24 Unit Price incl. VAT
86
STOP
3110023
Not Available
86
CLAMP
7080236
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
