1
Engine displacement
570
2
Year
2023
3
Trim
SPORTSMAN TOURING 570 SP TRACTOR
4
Parts Catalog
EXHAUST
5

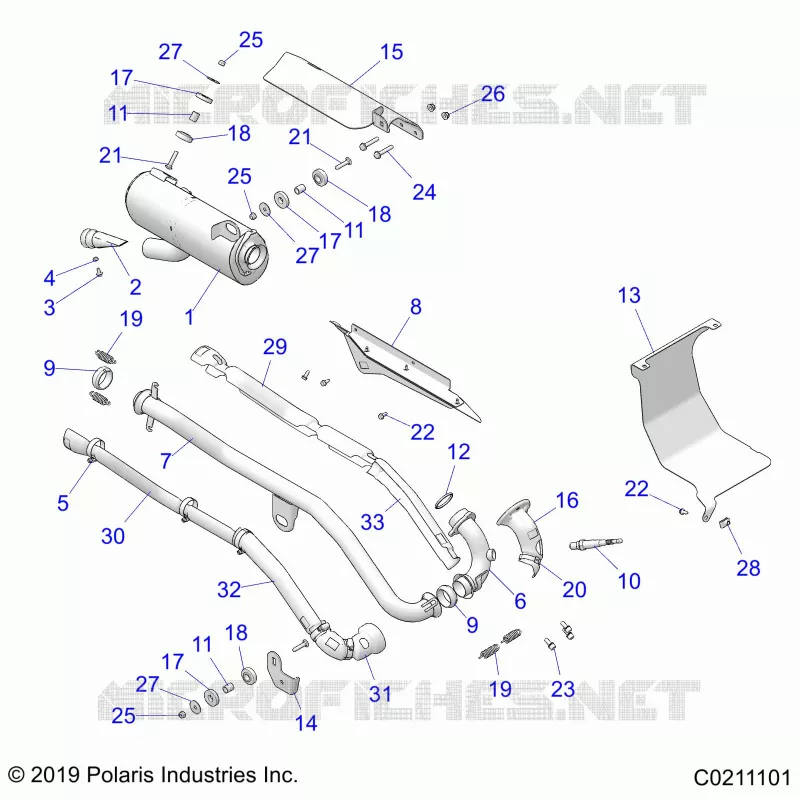

Parts Diagram
Parts Catalog
ENGINE, CYLINDER HEAD, CAMS AND VALVES
by
ENGINE, MOUNTING & LONG BLOCK
EXHAUST
1
2
2
3
4
5
5
6
7
8
9
9
10
11
11
11
12
13
14
15
16
17
17
17
18
18
18
19
19
20
21
21
22
22
23
24
25
25
25
26
27
27
27
28
29
30
31
32
33
1
WELD-SILENCER 570 CAT PWDR BLK [INCL. 1 3 4]
1263699
1263823
$682,49 Unit Price incl. VAT
2
WELD-SPARK ARRESTOR 1IN
1263571
$89,24 Unit Price incl. VAT
2
WELD-SPARK ARRESTOR QT
1262239
$89,24 Unit Price incl. VAT
3
SCREW-HXFL-M6X1.0X12 10.9 ZPC
7517257
$17,84 Unit Price incl. VAT
4
NUT-HEX-M6X1.0 8 SPC
7547120
$9,44 Unit Price incl. VAT
5
WELD-SILENCER SUPPORT BLK
1024693329
$62,99 Unit Price incl. VAT
5
CLAMP-HOSE 2.00-SS
7082359
$25,19 Unit Price incl. VAT
6
WELD-MANIFOLD
1263313
$241,49 Unit Price incl. VAT
7
ASM-EXHAUST PIPE 570 EFI SS [INCL. 4-10]
1263315
$1 081,49 Unit Price incl. VAT
8
ASM-SHIELD AIRBOX
2638121
$120,74 Unit Price incl. VAT
9
GASKET-DOUBLE SPHERICAL 1.625#
3610312
$17,84 Unit Price incl. VAT
10
SENSOR-LAMBDA LSF 4.2
4011853
$220,49 Unit Price incl. VAT
11
BUSHING-EXHAUST 15.87 X 21
5144284
$12,59 Unit Price incl. VAT
12
GASKET-EXHAUST SEALING
5253989
$52,49 Unit Price incl. VAT
13
SHIELD-FUEL TANK FRAME MNT TRG
5262925
$52,49 Unit Price incl. VAT
14
BRKT-EXHAUST PIPE SUPPORT BLK
5267243067
$23,09 Unit Price incl. VAT
15
BRACKET SILENCER FRAME
5267285
$83,99 Unit Price incl. VAT
16
SHIELD-HEAT EXHAUST HEADPIPE
5267286
$68,24 Unit Price incl. VAT
17
WSHR-15.4X38.1X7.9 RUBBER
5414945
$9,44 Unit Price incl. VAT
18
DAMPER-VIBRATION
5414946
$9,44 Unit Price incl. VAT
19
SPRING-EXHAUST
7045211
$16,79 Unit Price incl. VAT
20
CLAMP-45.0DX7W 304SS OETIKER
7082132
$9,44 Unit Price incl. VAT
21
BOLT CARRIAGE
7515316
$4,19 Unit Price incl. VAT
22
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
23
SCR-M8X1.25X20 HXSOC-CSSPL-SEM
7517555
$15,74 Unit Price incl. VAT
24
SCREW HXFL-5/16-18X0.75 GR5 ZY3
7518341
$9,44 Unit Price incl. VAT
25
NUT-5/16-18 HX TCHLCK FLNG ZNC
7547623
$6,29 Unit Price incl. VAT
26
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
27
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
28
NUT-CHIMNEY 1/4-20 GR-5
7670096
$3,14 Unit Price incl. VAT
29
SHIELD-HEAT EXHAUST REAR
5267238
$136,49 Unit Price incl. VAT
30
SHIELD-HEAT EXHAUST REAR
5267239
$136,49 Unit Price incl. VAT
31
SHIELD-HEAT EXHAUST MID
5267240
$120,74 Unit Price incl. VAT
32
SHIELD-HEAT EXHAUST MID
5267284
$62,99 Unit Price incl. VAT
33
SHIELD-HEAT EXHAUST MID INNER
5267368
$62,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
