1
Engine displacement
0
2
Year
1996
3
Trim
EURO XLT SKS - E960556
4
Parts Catalog

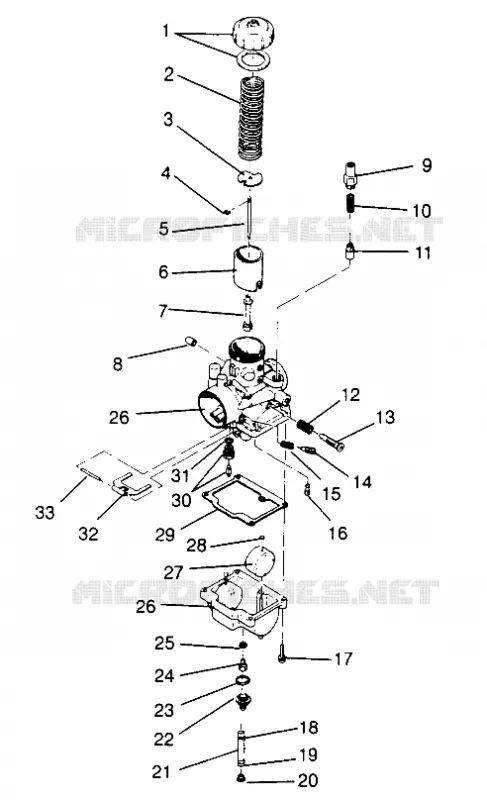

CARBURETOR XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C012)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS (4931813181C011)
by
FUEL PUMP XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C013)
CARBURETOR XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C012)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
1
ASM. TOP MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
SPRING THROTTLE
3130439
$27,29 Unit Price incl. VAT
3
PLATE THROTTLE
3130027
$19,94 Unit Price incl. VAT
4
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
5
JET NEEDLE (400)
3130374
Not Available
6
VALVE THROTTLE 2.0 (2.0)
3130464
Not Available
7
NEEDLE JET Substituted by 3130376 (166)
3130166
Not Available
8
CAP
3130479
$31,49 Unit Price incl. VAT
9
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
10
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
11
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
12
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130009
$36,74 Unit Price incl. VAT
14
SCREW AIR
3130011
$36,74 Unit Price incl. VAT
15
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
16
JET PILOT #35(10)
3130066
$18,89 Unit Price incl. VAT
17
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
18
CLAMP HOSE
7080534
$3,14 Unit Price incl. VAT
19
CLAMP HOSE(10)
7080544
Not Available
20
PLUG TRAP
5431893
$26,24 Unit Price incl. VAT
21
DESC NOT_AVAILABLE
8450045600
Not Available
22
FITTING SEDIMENT Substituted by 3130573
5020476
$18,68 Unit Price incl. VAT
23
O-RING
3130239
Not Available
24
JET MAIN HX.HD#210(10) (TRAIL)
3130124
$15,74 Unit Price incl. VAT
25
WASHER
3130014
$3,14 Unit Price incl. VAT
26
CARBURETOR ASM. (Incl. 1-17 23-33)
3130551
Not Available
27
ASM. FLOAT
3130430
$73,49 Unit Price incl. VAT
28
CAP
3130237
$8,39 Unit Price incl. VAT
29
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
30
VALVE NEEDLE Substituted by 3131146
3130016
3131146
$99,74 Unit Price incl. VAT
31
PACKING NEEDLE VALVE
3130017
$7,34 Unit Price incl. VAT
32
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
33
PIN FLOAT
3130361
$18,89 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
