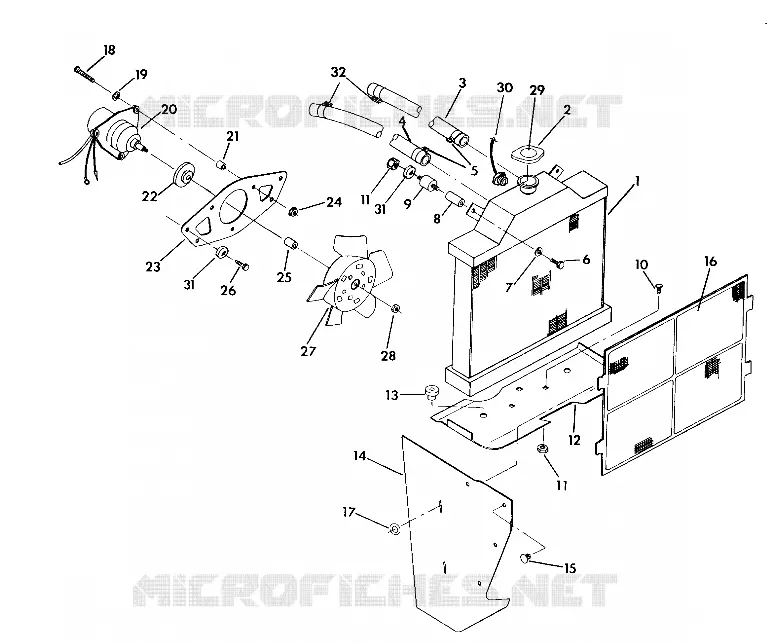

COOLING SYSTEM 350 4X4 / W928139 (4922832283007A)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTS EXHAUST 350 4X4 / W928139 (4922832283005A)
by
HEADLIGHT ASSEMBLY 350 4X4 / W928139 (4922832283008A)
COOLING SYSTEM 350 4X4 / W928139 (4922832283007A)
1
2
3
4
5
6
7
8
9
10
1
1
2
2
3
3
5
5
6
6
7
7
8
8
9
9
10
10
11
11
11
11
12
12
13
13
14
14
14
14
14
14
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
31
31
32
32
1
1
2
2
3
3
5
5
6
6
7
7
8
8
9
9
10
10
11
11
11
11
12
12
13
13
14
14
14
14
14
14
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
31
31
32
32
1
RADIATOR
1240006
Not Available
1
PIN-SPRING 5/16 X 1 5/8-Y
7661913
$7,34 Unit Price incl. VAT
2
CAP RADIATOR Substituted by 2511270
2511189
$47,24 Unit Price incl. VAT
2
WASHER SPRING
7571605
$11,54 Unit Price incl. VAT
3
HOSE ENG UPPER
5410570
$89,24 Unit Price incl. VAT
3
CARDAN WELD.
1380049
Not Available
4
Clamp Band
3260123
$11,54 Unit Price incl. VAT
5
BOOT CV.
3260120
Not Available
5
CLAMP-HOSE Substituted by 7080547
7080225
Not Available
6
BOLT
7512113
$7,34 Unit Price incl. VAT
6
Clamp Band
3260121
$17,84 Unit Price incl. VAT
7
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
7
SLEEVE SEAL
5222299
$57,74 Unit Price incl. VAT
8
SPACER MOUNT
5020572
$16,79 Unit Price incl. VAT
8
HSG CV ASM RH W/SLEEVE
1380048
Not Available
9
MOUNT RUBBER
3110032
$15,74 Unit Price incl. VAT
9
WASHER(10)
5211101
Not Available
10
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
10
SHAFT ASM DRIVE W/SLEEVE
1380052
Not Available
11
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
12
GUARD LOW.RADIATOR
5222547067
Not Available
13
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
14
SHIELD RH RADIATOR
5431189
Not Available
14
SHIELD LH RADIATOR
5431188
Not Available
15
CLIP-DART (NYLON)
7670067
$7,34 Unit Price incl. VAT
16
SCREEN RADIATOR Substituted by 5431610
5431228
Not Available
17
O-Ring
5410607
Not Available
18
SCREW(10)
7511867
Not Available
19
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
20
MOTOR FAN Substituted by 3084266
2410006
Not Available
21
SPACER FAN BRKT.
5333073
$6,18 Unit Price incl. VAT
22
COVER
3083951
Not Available
23
BRKT COOLING FAN Substituted by 5224741-067
5222559067
Not Available
24
NUT-8-32 HX LK GR A-Y
7541915
Not Available
25
BUSHING
3083950
Not Available
26
SCREW(10)
7512252
Not Available
27
BLADE FAN Substituted by 5240822
5431262
$92,28 Unit Price incl. VAT
28
NUT
3083952
Not Available
29
DECAL(CPSC) RAD.CAP
7073068
Not Available
30
SWITCH RADIATOR THERMO.
4110099
Not Available
31
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
32
CLAMP-HOSE (10) Substituted by 7080475
7080233
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
