SEAT GAS TANK ASSEMBLY RXL / 0930768 AND RXL SKS / 0930568 (4922992299002A) FOR RXL SKS - 0930568 FROM 1993

TUNNEL ASSEMBLY RXL / 0930768 AND RXL SKS / 0930568 (4922992299001A)

NOSEPAN RXL/0930768 and RXL SKS/0930568 (4922992299003A)

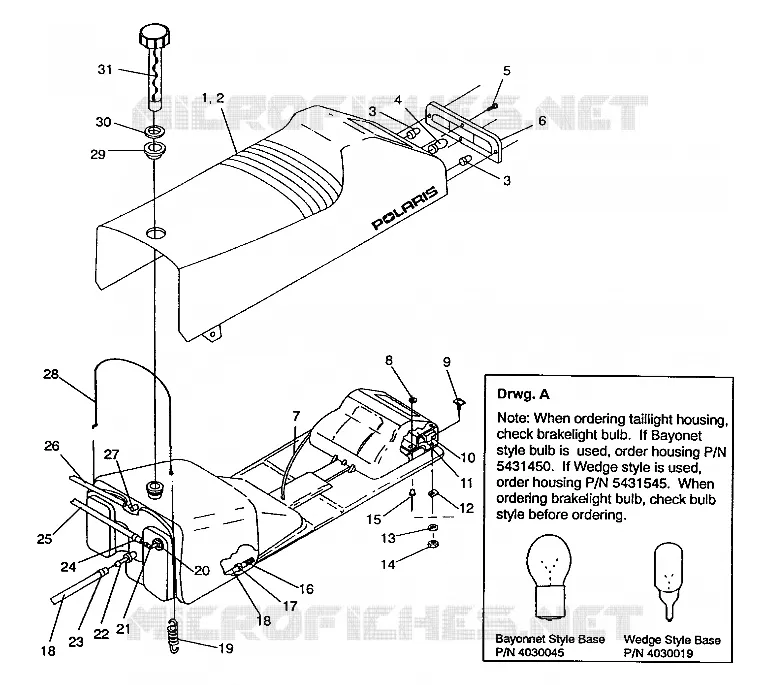

SEAT GAS TANK ASSEMBLY RXL / 0930768 AND RXL SKS / 0930568 (4922992299002A)

1

SEAT/TANK ASM (RXL SKS) (SKS) (Incl. 4 5 7-12 15)

2681644

Not Available

1

SEAT/TANK ASM (93RXL) (RXL) (Incl. 4 5 7-12 15)

2681643

Not Available

2

COVER SEAT/TANK(RXL SKS) (SKS)

2681646

Not Available

2

COVER SEAT(93RXL) 1PC. (RXL)

2681645

Not Available

3

BULB TAILLIGHT(10)

4030024

$9,44 Unit Price incl. VAT

4

BULB BRAKELIGHT

4030019

Not Available

5

SCREW(10)

7511840

Not Available

6

LENS TAILLIGHT

5430423

Not Available

7

HARNESS TAILLIGHT Substituted by 2460398

2460366

Not Available

8

BURR RIVET(50) Substituted by 7555904

7555746

$1,56 Unit Price incl. VAT

9

MOUNT REAR SEAT

1011855

Not Available

10

HOUSING TAILLIGHT Substituted by 5433341 (See Drwg. A)

5431545

Not Available

10

HOUSING TAILLIGHT (See Drwg. A)

5431450

$31,80 Unit Price incl. VAT

11

COVER T/L PROTECTOR

5431436

$34,32 Unit Price incl. VAT

12

NUT SPEED

7670021

$10,49 Unit Price incl. VAT

13

WASHER [INTL]

7558301

$2,09 Unit Price incl. VAT

14

NUT NYLOK

7542122

$2,09 Unit Price incl. VAT

15

RIVET

7621467

$2,09 Unit Price incl. VAT

16

PICKUP FUEL W/STRAINER

7052081

Not Available

17

RING COMPRESSION

7080402

$3,14 Unit Price incl. VAT

18

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

$136,49 Unit Price incl. VAT

19

SPRING-EXHAUST

7042029

$10,49 Unit Price incl. VAT

20

GROMMET-FLANGED .36X.56X1.06

7052028

$11,54 Unit Price incl. VAT

21

FITTING TANK OUTLET(5/16)

7052059

Not Available

22

FITTING OUTLET DOUBLE

7052023

$36,74 Unit Price incl. VAT

23

CLAMP-HOSE (LARGE GREEN)

7080307

$1,56 Unit Price incl. VAT

24

CLAMP HOSE

7080490

Not Available

25

FUEL LINE Substituted by 8450045-153

8450045

$157,49 Unit Price incl. VAT

26

VENT LINE 1/8 BULK Substituted by 8360009-600

8360009

$83,99 Unit Price incl. VAT

27

FITTING (10)

7052077

Not Available

28

CABLE TANK RETENTION

7080473

Not Available

29

GROMMET GAS TANK

5410745

Not Available

30

GASKET GAS CAP

5810513

$15,74 Unit Price incl. VAT

31

CAP FUEL W/GAUGE Substituted by 2511248

2511227

$83,99 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
