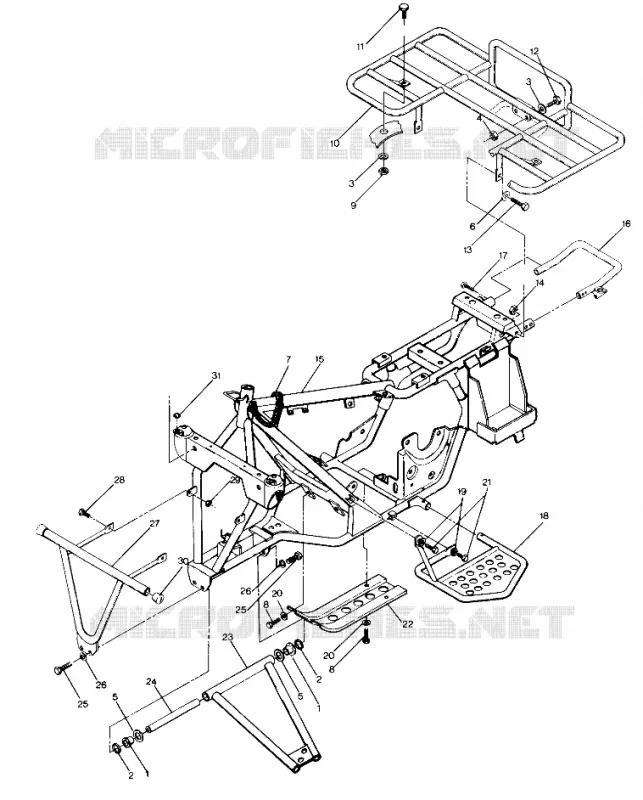

FRAME ASSEMBLY WITH RACKS (4913491349003A) FOR TRAIL BOSS

BODYWORK (4913491349001A)

ENGINE AND MUFFLER MOUNTING (4913491349005A)

BEARING #A# ARM Substituted by 2200474

3576509

2200474

$115,49 Unit Price incl. VAT

O RING

5410458

Not Available

WASHER-.312 X .734 X .065-Z

7558302

$3,14 Unit Price incl. VAT

NUT(10)

7542124

7542122

$2,09 Unit Price incl. VAT

WASHER(10)

7555774

Not Available

WASHER

7558403

$9,44 Unit Price incl. VAT

SEAL AIR FOAM

5810348

Not Available

SCR-TFHFL-1/4-20X0.75 CHS ZY3

7512232

$2,09 Unit Price incl. VAT

NUT NYLOK

7542122

$2,09 Unit Price incl. VAT

RACK REAR Substituted by 2670089

2670098

Not Available

BOLT(10)

7512269

Not Available

BOLT

7512270

Not Available

BOLT

7512310

$4,19 Unit Price incl. VAT

NUT NYLOK(10)

7542327

$9,44 Unit Price incl. VAT

FRAME (T.B.) [No Longer Available]

1011620

Not Available

BUMPER

2670097

Not Available

SCREW(10)

7512252

Not Available

PAD FOOT LH

1040109

Not Available

PAD FOOT RH

1040110

Not Available

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

Bolt

7512315

$9,44 Unit Price incl. VAT

GUARD ROCK

5220615

Not Available

A-FRAME LH Substituted by 1580020

1580011

Not Available

A-FRAME RH Substituted by 1580021

1580012

Not Available

SHAFT #A# ARM

5020477

Not Available

BOLT(10) Substituted by 7512492

7515458

7512492

$2,09 Unit Price incl. VAT

WASHER-SPRING-LOCK

7552603

$1,56 Unit Price incl. VAT

BUMPER Substituted by 2670086-067

2670086

Not Available

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

CAP BUMPER 4 WHL.(10) Substituted by 5410794

5430823

Not Available

PLUG RUBBER-HOLE .5DIA(10) Substituted by 5411426

5410012

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
