1
Engine displacement
570
2
Year
2022
3
Trim
SPORTSMAN 570 6X6 EURO
4
Parts Catalog
SUSPENSIONDLE CONTROL ARM MOUNTING- A22S6E57F1/FL (C102247-3)
5

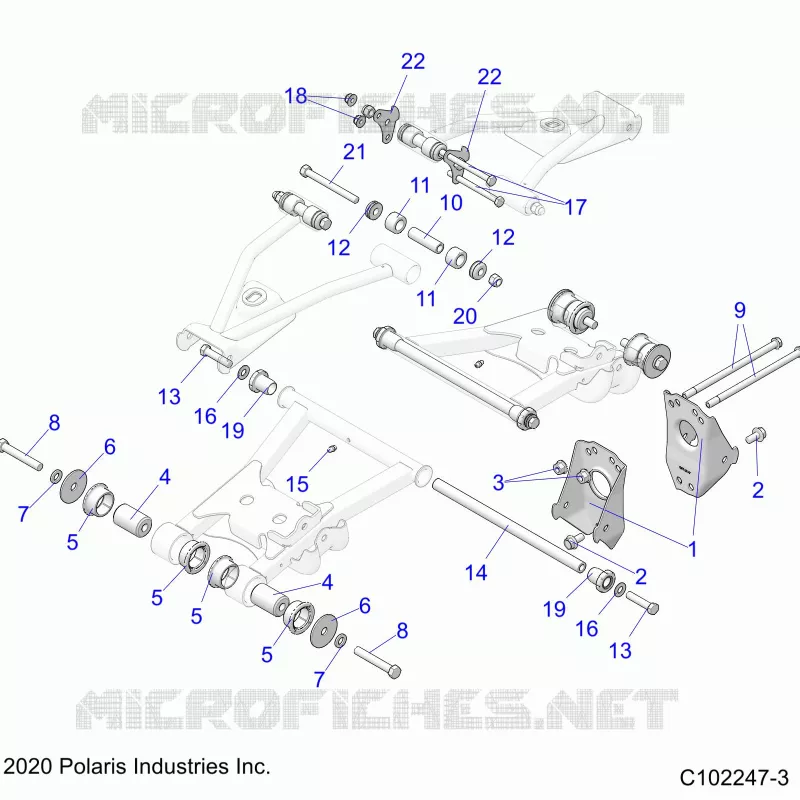

Parts Diagram
Parts Catalog
SUSPENSION, FRONT STRUT
by
SUSPENSIONDLE CONTROL ARMS
SUSPENSIONDLE CONTROL ARM MOUNTING- A22S6E57F1/FL (C102247-3)
1
1
2
2
3
4
4
5
5
5
5
6
6
7
7
8
8
9
10
11
11
12
12
13
13
14
15
16
16
17
18
19
19
20
21
22
22
22
22
1
BRACKET CONTROL ARM PIVOT BLACK
5254267329
5273355-329
$83,99 Unit Price incl. VAT
1
BRKT-CONTROL-ARM PIVOT BLK
5273355329
$83,99 Unit Price incl. VAT
2
SCR-3/8-16X3/4 HX FLNG-GR5-Y
7517632
$10,49 Unit Price incl. VAT
3
NUT-FLANGED 3/8-16 NYLON
7547180
$4,19 Unit Price incl. VAT
4
BUSHING BEARING CARRIER
5632291
$41,99 Unit Price incl. VAT
5
BUSHING CONTROL LOWER BLACK
5438902
$8,39 Unit Price incl. VAT
6
WASHER FLAT
7555740
$3,14 Unit Price incl. VAT
7
WASHER LOCK
7552614
$3,14 Unit Price incl. VAT
8
Screw
7517873
$4,19 Unit Price incl. VAT
9
BOLT-3/8-16X7 HX FLNG GR5-Y
7518365
$13,64 Unit Price incl. VAT
10
SHAFT-PIVOT 54MM M10
5141387
$19,94 Unit Price incl. VAT
11
BUSHING-STANDARD SUSP M10
5452233
$5,24 Unit Price incl. VAT
12
ASM-PIVOT CAP SEALED M10
1543611
$10,49 Unit Price incl. VAT
13
SCR-3/8-24X1 3/4 HX GR8 P30 Y
7521149
$6,29 Unit Price incl. VAT
14
SHAFT-A-ARM C-BORE
5139929
$52,49 Unit Price incl. VAT
15
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
16
WASHER
7556153
$3,66 Unit Price incl. VAT
17
SCR-HH-5/16-18X3.75 GR5 ZY3
7515382
$4,19 Unit Price incl. VAT
18
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
19
ASM-BUSHING HD W/SEAL 6.75 FLG (HEAVY DUTY)
1543326
$24,14 Unit Price incl. VAT
20
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
21
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
22
BRKT-CNTRL ARM PIVT 6X6 E-COAT [TO 6/7/2022]
5260989329
5273356-329
$83,99 Unit Price incl. VAT
22
BRKT-CONTROL ARM PIVOT 6X6 BLK
5273356329
$83,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
