Engine displacement
570
2
Year
2016
3
Trim
sportsman-570-sp-eps-quad
4
Parts Catalog

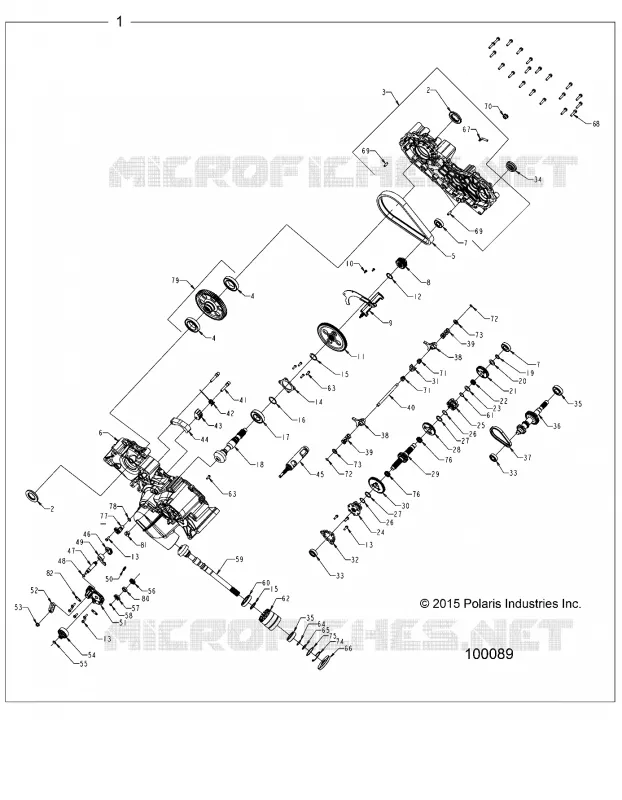

DRIVE TRAIN, MAIN GEARCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
by
DRIVE TRAIN, MAIN GEARCASE MOUNTING
DRIVE TRAIN, MAIN GEARCASE
1
2
2
3
4
4
5
6
7
7
8
9
10
11
12
13
13
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
30
31
32
33
33
34
35
35
36
37
38
38
39
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
63
64
65
66
67
68
69
69
70
71
71
72
72
73
73
74
75
76
76
77
78
79
80
81
82
1
ASM-TRANS PDS NO DIFF BOSS [INCL. ALL]
1333474
$5 759,24 Unit Price incl. VAT
2
SEAL TRIPLE LIP NITRILE 1.969 X 2.750 X .315
3234300
$57,74 Unit Price incl. VAT
3
SUBASSEMBLY LH COVER PDS EAGLE
3235605
$818,99 Unit Price incl. VAT
4
BEARING BALL 6010 C3 50 X 80 X 10
3233268
$88,19 Unit Price incl. VAT
5
CHAIN SILENT 17 WIDE X 1.0 X 86p
3234057
$519,74 Unit Price incl. VAT
6
GEARCASE RH MACH
3235606
$1 070,99 Unit Price incl. VAT
7
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
8
SPROCKET 19T 1.00#
3234060
$451,49 Unit Price incl. VAT
9
DEFLECTOR OIL
3234061
3239943
$52,49 Unit Price incl. VAT
10
SCREW TAPPING TORX PH 11902 X.50
3233749
$10,49 Unit Price incl. VAT
11
GEAR OUTPUT 91T HRC
3234062
$493,49 Unit Price incl. VAT
12
RING RETAINING IRR 7200-118
3233699
$13,64 Unit Price incl. VAT
13
SCREW TAPPING HEX WASHER HD 1/4-20 X 0.75
3234247
$10,49 Unit Price incl. VAT
14
COVER BEARING CENTER DRIVE
3234063
$62,99 Unit Price incl. VAT
15
RING RETAINING SHAFT DIA. 1.375
3233364
$12,59 Unit Price incl. VAT
16
SHIM 1.700 X 1.385
3234271
$47,24 Unit Price incl. VAT
17
BEARING BALL 6207 C3 35MMX72MMX17MM
3234065
$80,84 Unit Price incl. VAT
18
PINION CENTER DRIVE 13T
3234263
$818,99 Unit Price incl. VAT
19
RING RETAINING BASIC EXTERNAL .787 SHAFT
3234067
$14,69 Unit Price incl. VAT
20
WASHER THRUST 1.270 X 0.793 X 0.065
3233176
$17,84 Unit Price incl. VAT
21
GEAR HELICAL-35T
3236032
$262,49 Unit Price incl. VAT
22
BEARING NEEDLE SPLIT CAGE 22 X 26 X 10
3233009
$68,24 Unit Price incl. VAT
23
WASHER 1.250 X 0.876 X 0.05
3233855
$19,94 Unit Price incl. VAT
24
ENGAGEMENT DOG 6-FACE L/P
3234257
$283,49 Unit Price incl. VAT
25
DOG ENGAGEMENT 6 FACE
3234258
$178,49 Unit Price incl. VAT
26
RING RETAINING BASIC EXT 0.938
3233306
$9,44 Unit Price incl. VAT
27
WASHER THRUST 1.300 X 0.995 X 0.065
3234248
$17,84 Unit Price incl. VAT
28
SPROCKET 38T 6 FACE
3234290
$283,49 Unit Price incl. VAT
29
SHAFT REVERSE 26T
3234280
$488,24 Unit Price incl. VAT
30
GEAR 33T 6 FACE
3234291
$325,49 Unit Price incl. VAT
31
COLLAR SHIFT
3234073
$57,74 Unit Price incl. VAT
32
PLATE PARK 12 FACE
3233915
$73,49 Unit Price incl. VAT
33
BEARING BALL 6203 17 X 40 X 12
3234274
$47,24 Unit Price incl. VAT
34
SEAL TRIPLE LIP VITON HELIX 30 X 47
3234851
$68,24 Unit Price incl. VAT
35
BEARING
3233019
$54,59 Unit Price incl. VAT
36
SHAFT INPUT-39T BOSS
3235782
$430,49 Unit Price incl. VAT
37
SILENT CHAIN .25P X 0.4 W X 50L
3234264
$188,99 Unit Price incl. VAT
38
FORK SHIFT
3234077
$335,99 Unit Price incl. VAT
39
SPRING COMPRESSION .92 O.D. X 2.000
3234078
$47,24 Unit Price incl. VAT
40
RAIL SHIFT SHAFT
3234079
3235542
$52,49 Unit Price incl. VAT
41
PIN TENSIONER
3233432
$13,64 Unit Price incl. VAT
42
SPRING TORSION
3233431
$47,24 Unit Price incl. VAT
43
CAM CHAIN TENSIONER
3233434
$26,24 Unit Price incl. VAT
44
SHOE CHAIN TENSIONER
3233433
$62,99 Unit Price incl. VAT
45
DRUM SHIFT MACH
3234360
$335,99 Unit Price incl. VAT
46
GEAR-SECTOR 31T
3233832
$68,24 Unit Price incl. VAT
47
SHAFT SHIFT
3233831
$115,49 Unit Price incl. VAT
48
O-RING -014
3233869
$10,49 Unit Price incl. VAT
49
PAWL DETENT
3233829
$68,24 Unit Price incl. VAT
50
SPRING COMPRESSION 0.36 O.D. X 1.125
3234578
$26,24 Unit Price incl. VAT
51
COVER SECTOR GEARS MACHINED
3234188
$209,99 Unit Price incl. VAT
52
BELLCRANK .510 HOLE 92 ~
3234584
$52,49 Unit Price incl. VAT
53
NUT LOCK HEX FLANGE NYLON 5/16-24
3233961
$5,24 Unit Price incl. VAT
54
SWITCH ROTARY 2 PIN RESISTIVE
7661999
$220,49 Unit Price incl. VAT
55
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
56
GEAR SECTOR 16T
3233839
$68,24 Unit Price incl. VAT
57
STAR DETENT
3233909
$52,49 Unit Price incl. VAT
58
O-RING 2-012
3233076
$11,54 Unit Price incl. VAT
59
GEAR 13T SNORKEL
3234262
$608,99 Unit Price incl. VAT
60
BEARING BALL 6007 C3 35 X 62 X 14
3233265
$68,24 Unit Price incl. VAT
61
RING RETAINING BASIC EXTERNAL DIA 0.84
3234336
$10,49 Unit Price incl. VAT
62
TUBE SNORKEL MACHINED
3234278
$188,99 Unit Price incl. VAT
63
SCREW TORX TRUSS HD 43834 X 0.75
3234086
$10,49 Unit Price incl. VAT
64
SHIM 1.180 OD X 0.995 ID
3234272
$68,24 Unit Price incl. VAT
65
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
66
SEAL TRIPLE LIP VITON 25 X 80 X 10
3234113
$68,24 Unit Price incl. VAT
67
TUBE VENT 90 -1/4 INCH HOSE
3234230
$19,94 Unit Price incl. VAT
68
SCREW TAPPING HEX WASHER HD 5/16-18 X 1.25
3234114
$13,64 Unit Price incl. VAT
69
PIN DOWEL 5/16 X 1.0
3234244
$13,64 Unit Price incl. VAT
70
PLUG 3/4-16 5/16 INTERNAL HEX
3233194
3233794
$31,49 Unit Price incl. VAT
71
SPRING COMPRESSION 0.46 I.D. X 0.73
3234089
$52,49 Unit Price incl. VAT
72
RING RETAINING BASIC EXTERNAL 0.428
3234090
$19,94 Unit Price incl. VAT
73
WASHER CUP
3234091
$17,84 Unit Price incl. VAT
74
RING RETAINING BASIC INTERNAL 2.047
3234269
$17,84 Unit Price incl. VAT
75
SHIM 2.040 OD X 1.63 ID
3234273
$26,24 Unit Price incl. VAT
76
BEARING NEEDLE 25 X 29 X 10
3233103
$54,59 Unit Price incl. VAT
77
SENSOR-SPEED TRANS
4013908
4082135
$204,74 Unit Price incl. VAT
78
O-RING
3234302
$13,64 Unit Price incl. VAT
79
SUB-ASSY SHAFT 59T FINAL OUTPUT 1.00# WITH BEARING
3235604
$482,99 Unit Price incl. VAT
80
Disc Lockout
3235243
$17,84 Unit Price incl. VAT
81
MAGNETIC PLUG 3/4-16 INTERNAL HEX
3234529
3233794
$31,49 Unit Price incl. VAT
82
BRACKET WIRE HARNESS
3235350
$16,79 Unit Price incl. VAT
