1
Engine displacement
570
2
Year
2015
3
Trim
SPORTSMAN 570 SP TOURING
4
Parts Catalog
COOLING SYSTEM
5

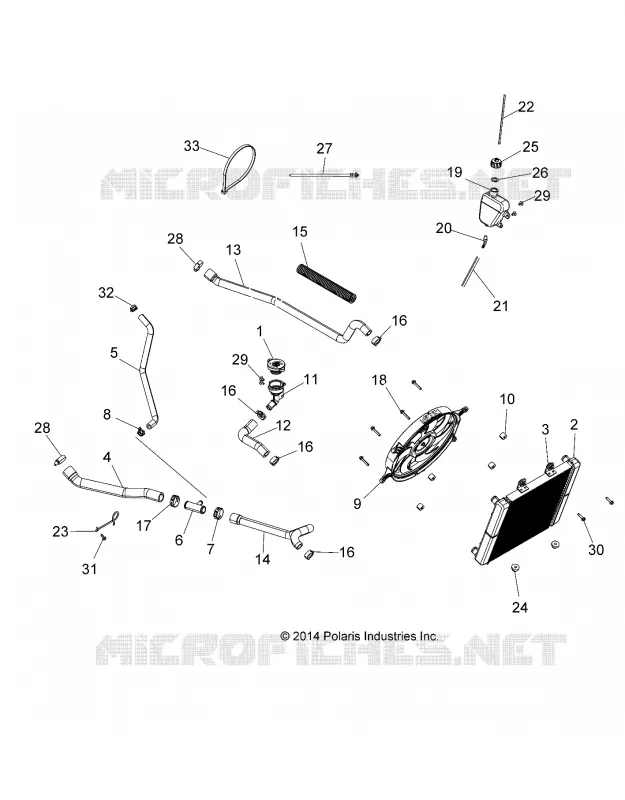

Parts Diagram
Parts Catalog
TAIL LAMPS
by
CRANKCASE
COOLING SYSTEM
1
2
3
4
5
6
17
8
9
10
11
12
13
14
15
16
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
30
31
32
33
1
CAP PRESSURE
1240508
$89,24 Unit Price incl. VAT
2
ASM. RADIATOR
1240520
1241477
$834,74 Unit Price incl. VAT
3
ASM. GROMMET AND INSERT
5413155
$7,34 Unit Price incl. VAT
4
HOSE ENGINE LOWER
5414805
$73,49 Unit Price incl. VAT
5
HOSE BYPASS FORMED
5414806
$68,24 Unit Price incl. VAT
6
CONNECTOR-TEE 1X1X0.5
7052530
$10,49 Unit Price incl. VAT
7
CLAMP BROWN OR SILVER 32/12
7080843
$7,34 Unit Price incl. VAT
8
CLAMP HOSE SPRING 20MM
7081719
$10,49 Unit Price incl. VAT
9
ASM-FAN AND MOTOR TRIPAC SGL
2411330
$303,96 Unit Price incl. VAT
10
SPACER-6.6IDX19ODX15 NYL BLK
5137361
$10,49 Unit Price incl. VAT
11
FILLER NECK RADIATOR
5412402
$52,49 Unit Price incl. VAT
12
HOSE FILLER NECK
5414228
$29,39 Unit Price incl. VAT
13
HOSE-RADIATOR UPPER TOURING [TO 9/1/2020]
5415339
5417384
$104,99 Unit Price incl. VAT
14
HOSE-RADIATOR LOWER TOURING
5415340
$68,24 Unit Price incl. VAT
15
CONDUIT-FLEX 1.00 ID PE 10CM [TO 8/19/2020]
552179310
$13,64 Unit Price incl. VAT
16
SPRINGBAND-CLAMP 27/12 GREEN
7080841
$13,64 Unit Price incl. VAT
17
CLAMP BROWN OR SILVER 32/12
7080843
$7,34 Unit Price incl. VAT
18
SCR-M6X1.0X35 HX/FL-Y/D
7516827
$12,59 Unit Price incl. VAT
19
TANK-SURGE
5436936
$152,24 Unit Price incl. VAT
20
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
21
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
22
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
23
SPRING COOLANT HOSE GUIDE [TO 8/17/2020]
5338063
5342957
$12,59 Unit Price incl. VAT
24
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
25
CAP OVER FLOW BOTTLE W/FITTING
5437635
$9,44 Unit Price incl. VAT
26
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
27
TIE-CABLE PRESS MNT BLK
7080999
$17,84 Unit Price incl. VAT
28
CLAMP-HOSE 13/16#-1 1/2#
7081174
$13,64 Unit Price incl. VAT
29
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
30
SCR-1/4-20X1 HX/WH/TAP/R GR5-Y
7515179
$4,19 Unit Price incl. VAT
31
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
32
CLAMP-HOSE .875-SS
7080474
$13,64 Unit Price incl. VAT
33
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
