Engine displacement
500
2
Year
2002
3
Trim
SCRAMBLER 500 2X4 - A02BA50AA
4
Parts Catalog

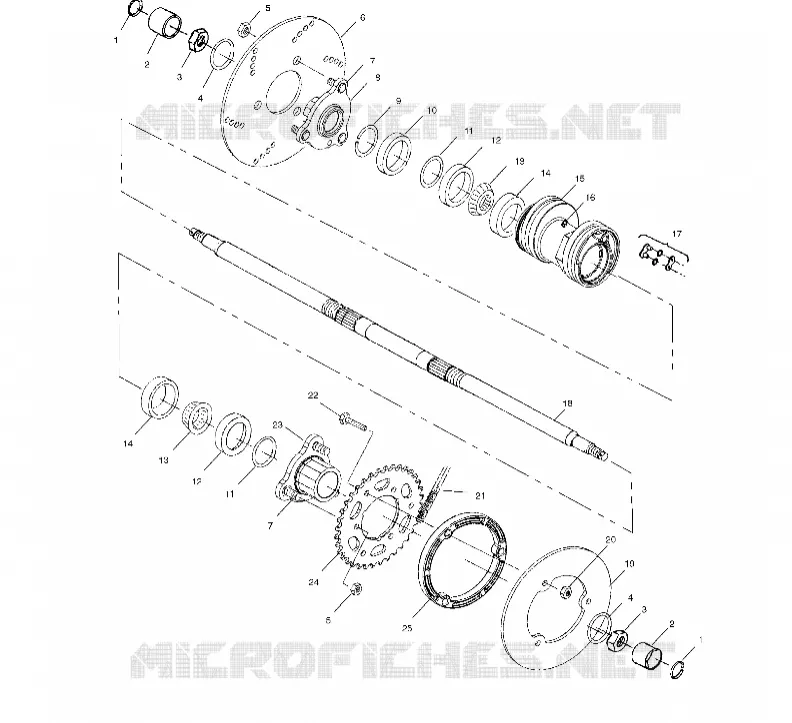

REAR HOUSING
5
Parts Diagram
Parts Catalog
SWING ARM SHOCK
by
DRIVE CLUTCH
REAR HOUSING
1
1
2
2
3
3
3
3
4
4
5
5
6
7
7
8
9
10
11
11
12
12
13
13
14
14
15
16
17
18
18
19
20
21
22
23
24
25
1
1
2
2
3
3
3
3
4
4
5
5
6
7
7
8
9
10
11
11
12
12
13
13
14
14
15
16
17
18
18
19
20
21
22
23
24
25
1
1
1
1
2
2
3
4
4
5
5
5
6
6
6
7
8
9
10
11
11
11
11
12
13
14
14
15
15
16
16
17
17
18
18
18
18
18
19
20
20
21
21
22
23
24
24
25
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Ring Retaining
7710472
$10,49 Unit Price incl. VAT
2
EXTRUSION RETAINER NUT
5510313
$78,74 Unit Price incl. VAT
3
Nut Jam
7547031
$52,49 Unit Price incl. VAT
3
Nut [If built after 12/03/01]
7547196
$52,49 Unit Price incl. VAT
4
Seal Foam
5411555
$25,19 Unit Price incl. VAT
5
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
6
DISC BRK 7.00 OD .188 THK
5243678
Not Available
7
STUD(10)
7515513
$2,09 Unit Price incl. VAT
8
Asm. Hub Brake Disc Locking
1520259
Not Available
9
Ring Retaining
7710405
$9,44 Unit Price incl. VAT
10
Spacer Axle
5010462
$52,49 Unit Price incl. VAT
11
O RING
5410889
Not Available
12
Seal
3610070
$31,49 Unit Price incl. VAT
13
Bearing Cone Tapered
3554518
$68,24 Unit Price incl. VAT
14
Bearing Cup Tapered
3554517
$27,29 Unit Price incl. VAT
15
Housing Axle Rear
5132098
$195,29 Unit Price incl. VAT
16
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
17
LINK CONNECT 520 ORD
3225027
3221192
$62,99 Unit Price incl. VAT
18
AXLE REAR HYBRID
5020944
Not Available
18
Axle Rear [If built after 12/03/01]
5133181
$942,36 Unit Price incl. VAT
19
GUARD 38T SPKT BLK.ALUM.
5211585067
Not Available
20
NUT FLANGE LOCK
7547108
$9,44 Unit Price incl. VAT
21
CHAIN 76P 520 ORD O-RING
3221111076
3221193-076
$241,49 Unit Price incl. VAT
22
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
23
HUB ASM SPKT LOCKING (Incl. 7)
1520258
$204,74 Unit Price incl. VAT
24
SPKT 36T R.AXLE (ATV)
3222109
$178,49 Unit Price incl. VAT
25
SPACER-SPROCKET GUARD
5630586
Not Available
