Engine displacement
0
2
Year
2002
3
Trim
XPLORER 4X4 - A02CG25CA
4
Parts Catalog

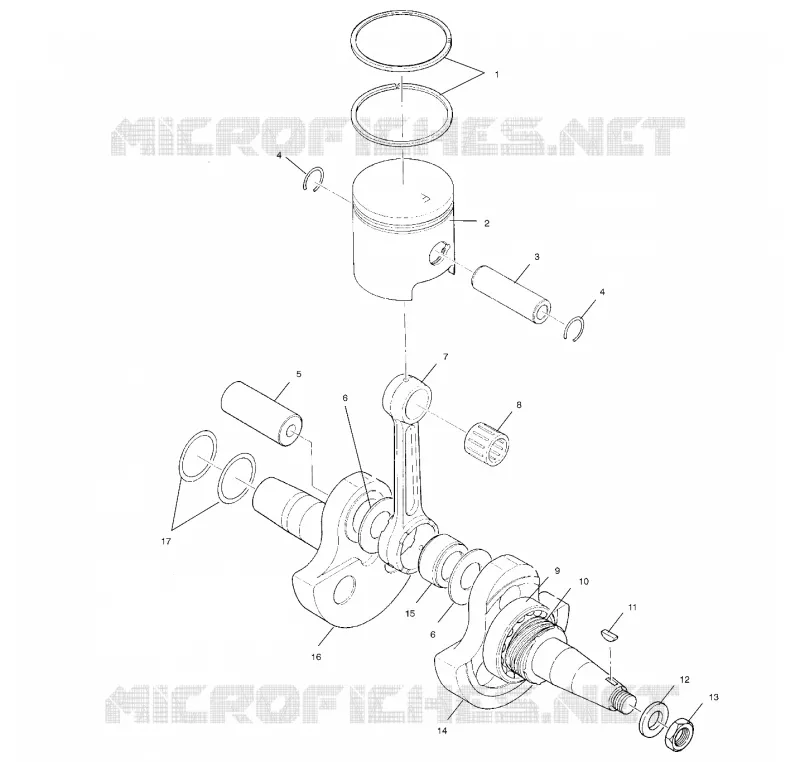

CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
CRANKCASE AND CYLINDER
by
MAGNETO
CRANKSHAFT AND PISTON
1
1
1
1
2
2
2
2
3
4
4
5
6
6
7
8
9
10
11
12
13
14
14
15
16
17
17
1
RING PISTON(O/S 1.0MM) (.040 Oversize)
3083974
$54,59 Unit Price incl. VAT
1
RING .010 O/S (0.10 Oversize)
3083678
Not Available
1
RING PISTON
3083546
Not Available
1
RING .020 O/S (.020 Over)
3083717
$40,94 Unit Price incl. VAT
2
PISTON .010 O/S (.010 Over) (Incl. 16)
3083943
Not Available
2
PISTON .020 O/S (.020 Over) (Incl. 16)
3083944
Not Available
2
PISTON * (Standard) (Incl. 16)
3083942
Not Available
2
PISTON (1.0 MM O/S) (1.00mm/.040# O/S)(Incl. 15)
3083972
Not Available
3
PIN PISTON
3083838
2207579
$356,99 Unit Price incl. VAT
4
CLIP PISTON PIN (10)
3083839
$7,34 Unit Price incl. VAT
5
CRANK PIN PTO
3082796
Not Available
6
SPACER
3083804
$36,74 Unit Price incl. VAT
7
ROD CONNECTING
3082790
Not Available
8
BEARING SMALL END
3083626
Not Available
9
BEARING BALL
3084580
Not Available
10
GEAR CRANKSHAFT
3083745
Not Available
11
KEY Substituted by 3081543
3080130
3081543
$26,24 Unit Price incl. VAT
12
Washer
3086767
Not Available
13
LOCKNUT
3083905
Not Available
14
ASM-CRANKSHAFT (Incl. 5-7 9 10 14-16)
3087056
Not Available
14
CRANKSHAFT #1
3083899
$423,14 Unit Price incl. VAT
15
BEARING LGE.END
3083803
Not Available
16
CRANKSHAFT 2
3085891
$343,34 Unit Price incl. VAT
17
SPACER-1 (0.2mm)
3086765
Not Available
17
SPACER 3 (0.1mm)
3085892
Not Available
