1
Engine displacement
1000
2
Year
2016
3
Trim
RZR XP 1000 EU / MD
4
Parts Catalog

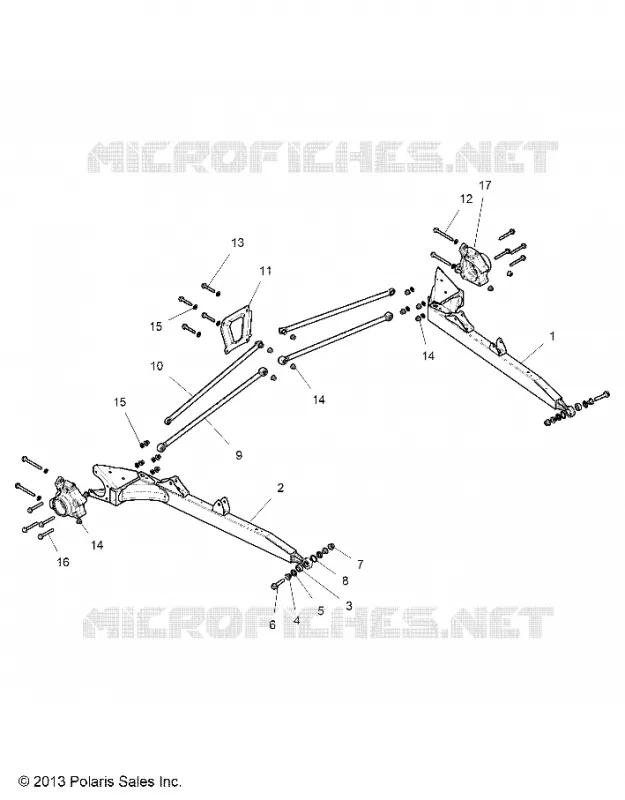

REAR SUSPENSION CONTROL ARMS
5
Parts Diagram
Parts Catalog
SUSPENSION, FRONT SHOCK MOUNTING
by
ENGINE, EXHAUST SYSTEM
REAR SUSPENSION CONTROL ARMS
1
ARM TRAILING LH LIME SQ
1019356630
$755,99 Unit Price incl. VAT
2
ARM TRAILING RH LIME SQ
1019357630
$755,99 Unit Price incl. VAT
3
BEARING SPHERICAL
3514689
$68,24 Unit Price incl. VAT
4
BUSHING REDUCER
5336751
$12,59 Unit Price incl. VAT
5
O-RING 0.600IDX.210
5412290
$3,66 Unit Price incl. VAT
6
SCR-HXFL-M12X1.5X60 10.9 ZOD
7519138
$17,84 Unit Price incl. VAT
7
NUT-M12X1.5 FLG NYLOC-OLIVE D
7547334
$9,44 Unit Price incl. VAT
8
RING RETAINING(10)
7710437
$5,76 Unit Price incl. VAT
9
ASM-RADIUS ROD BTM LIME SQ [E99AM]
1543204630
$335,99 Unit Price incl. VAT
10
ASM-RADIUS ROD LIME SQ [E99AM]
1543377630
Not Available
11
PLATE-REAR BOLT BRACE LIME SQ [E99AM]
5259640630
$141,74 Unit Price incl. VAT
12
SCR-HXFL-M10X1.25X100 10.9 ZOD
7519284
$7,34 Unit Price incl. VAT
13
SCR-HXFL-M10X1.25X60 10.9 ZOD
7519306
$10,49 Unit Price incl. VAT
14
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
15
WASHER
7556153
$3,66 Unit Price incl. VAT
16
SCREW M10x75 HXFL
7519286
$13,64 Unit Price incl. VAT
17
CARRIER BEARING WHEEL LH
5138415
$404,24 Unit Price incl. VAT
17
CARRIER BEARING WHEEL RH
5138416
$404,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
